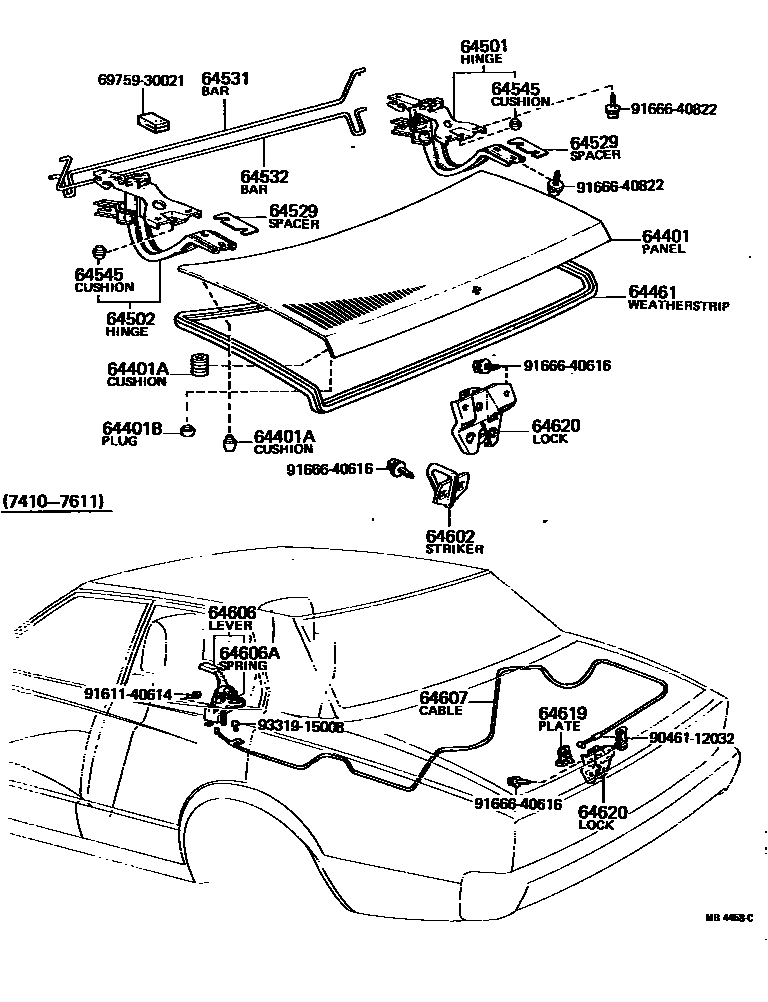

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30220iMS85,RS80197410-197908

main64401-30300iMS95197410-197604

sub64401-30904

main64401-30904iMS95197604-197908

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09007iMS85,95,RS80197410-197502

OD=9

main90541-09070iMS85,95,RS80197502-197908

OD=9

main90541-15001iMS85,95,RS80197610-197908

OD=15

sub90541-15111

main90541-15111iMS85,95,RS80197410-197610

OD=15

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01065iMS85,95,RS80197410-197908

OD=7

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30020iMS85,95,RS80197410-197908

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30050iMS85..DLX,ROY,SAL197410-197908

main64510-30060iMS95197410-197908

main64520-30020iMS85,RS80..BTP197410-197908

sub64510-30050

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30020iMS85,RS80197410-197908

sub64510-30050

main64520-30030iMS95197410-197908

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iMS95197410-197908

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30071iMS85,RS80197410-197908

sub64531-30090

main64531-30081iMS95197410-197908

sub64531-30090

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30071iMS85,RS80197410-197908

sub64532-30100

main64532-30081iMS95197410-197908

sub64532-30100

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09003iMS85,95,RS80197607-197908

main90541-10147iMS85,95,RS80197410-197607

sub90541-09003

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-30050iMS85,95,RS80197410-197908

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-30010iMS85,RS80..RHD..BTP197410-197611

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iMS85,RS80..RHD..BTP197410-197611

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-30010iMS85,RS80..RHD..BTP197410-197611

64619PLATE, LUGGAGE LOCK CONTROL CABLE

main64619-30010iMS85,RS80..RHD..BTP197410-197611

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-30010iMS85,95,RS80197410-197908

6975930021SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-30021

9046112032

main90461-12032

9161140614

main91611-40614

9166640616

main91666-40616

9166640822

main91666-40822

9331915008

main93319-15008

22 parts on this diagram · 1 diagram in section
