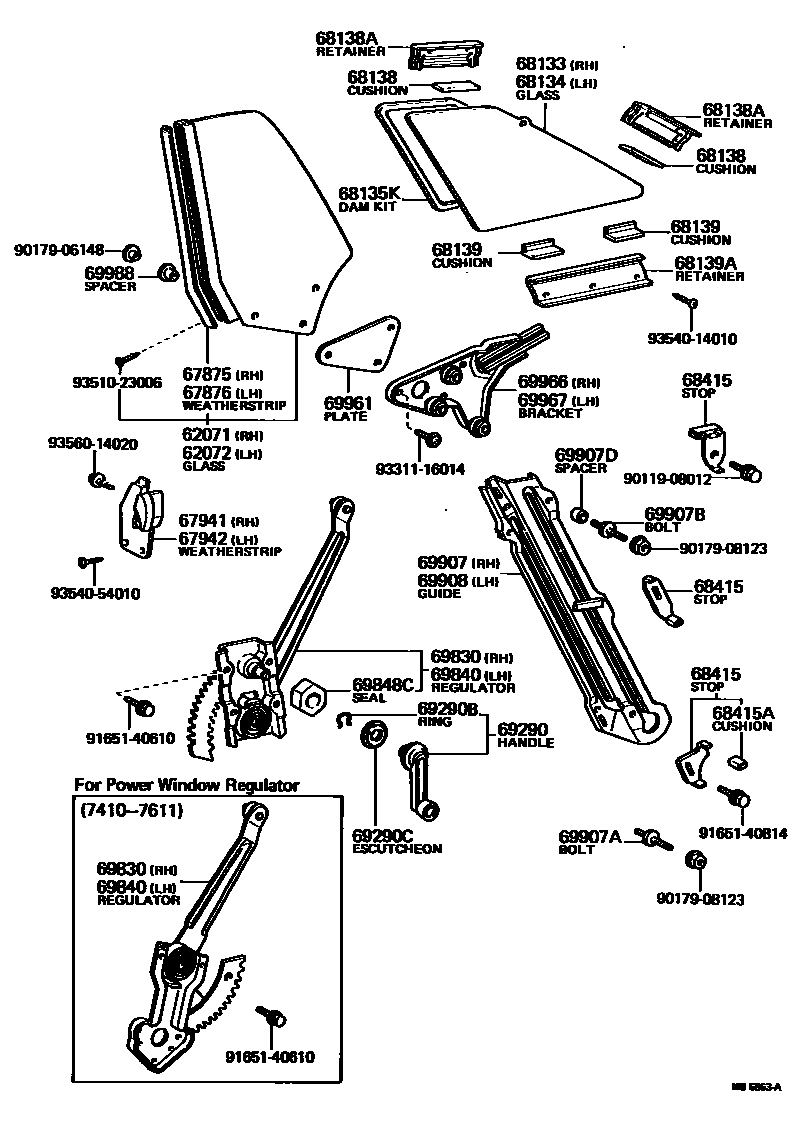

QUARTER WINDOW
62071GLASS SUB-ASSY, QUARTER, RH
62072GLASS SUB-ASSY, QUARTER, LH
67875WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH
67876WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH
67941WEATHERSTRIP, QUARTER LOCK PILLAR, RH
67942WEATHERSTRIP, QUARTER LOCK PILLAR, LH
68133GLASS, QUARTER WINDOW, NO.2 RH
TN.TP.T=4.0
68134GLASS, QUARTER WINDOW, NO.2 LH
TN.TP.T=4.0
68138CUSHION, QUARTER WINDOW, NO.2 UPPER
68138ARETAINER, QUARTER WINDOW, NO.2 UPPER
68139CUSHION, QUARTER WINDOW, NO.2 LOWER
68139ARETAINER, QUARTER WINDOW, NO.2 LOWER
68415STOPPER, REAR QUARTER GLASS, UPPER
UPPER,FRONT
UPPER,REAR
LOWER,RH.
LOWER,LH.
68415ACUSHION(FOR QUARTER WINDOW GLASS STOP)
69290HANDLE ASSY, QUARTER WINDOW REGULATOR
69290BRING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE)
sub90520-01274
69290CESCUTCHEON(FOR QUARTER WINDOW REGULATOR HANDLE)
69830REGULATOR ASSY, REAR QUARTER WINDOW, RH
FOR POWER WINDOW
69840REGULATOR ASSY, REAR QUARTER WINDOW, LH
FOR POWER WINDOW
69848CSEAL, WINDOW REGULATOR HOLE(FOR QUARTER)
69907GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH
69907ABOLT, STUD, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE)
L=30.0
L=24.0
69907BBOLT, STUD, NO.2(FOR QUARTER REGULATOR ROLLER GUIDE)
L=13.5
L=24.0
69907DSPACER(FOR QUARTER REGULATOR ROLLER GUIDE)
T=15
T=7
69908GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH
69961PLATE, REAR QUARTER GLASS BRACKET
69966BRACKET, REAR QUARTER WINDOW GLASS, RH
69967BRACKET, REAR QUARTER WINDOW GLASS, LH
69988SPACER, QUARTER WINDOW GLASS
9011908012
main90119-08012
9017906148
main90179-06148
9017908123
main90179-08123
9165140610
main91651-40610
9165140814
main91651-40814
9331116014
main93311-16014
9351023006
main93510-23006
9354014010
main93540-14010
9354054010
main93540-54010
9356014020
main93560-14020
40 parts on this diagram · 2 diagrams in section
