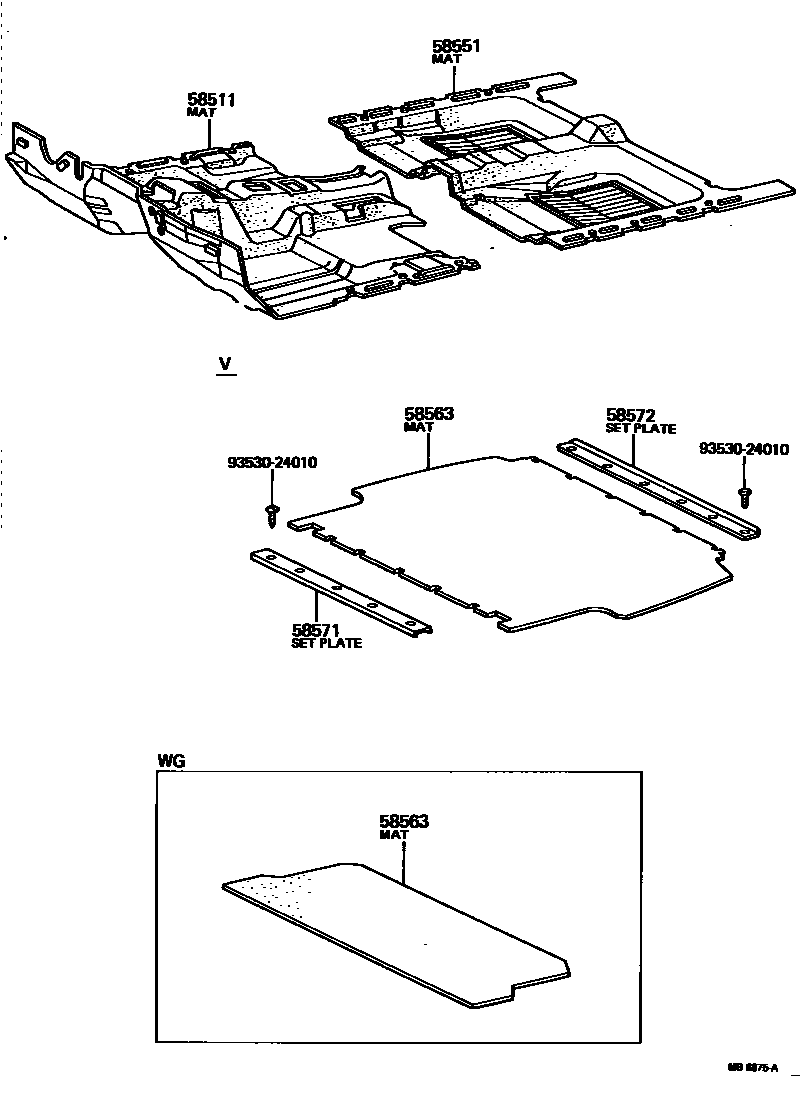

FLOOR MAT

58511MAT, FLOOR, FRONT

main58510-30360iMS85,88,RS80..RHD..(3H,3HC,4H)..(BTP,STD)197410-197908

FOR BENCH SEAT, L/HEATER

main58510-30370iMS85..3FC..BTP..ARL;MS85,88,RS80..RHD..(3FC,4F)..(BTP,STD)..GEN197410-197908

FOR SEPARATE SEAT, L/HEATER

main58510-30380iMS85,88,RS80..LHD..(3H,3HC,4H)..(BTP,STD)..GEN197410-197908

FOR BENCH SEAT, L/HEATER

main58510-30390iMS85,88,RS80..LHD..(3FC,4F)..(BTP,STD)..GEN197410-197908

FOR SEPARATE SEAT, L/HEATER

main58510-30410iMS85,88,RS80..RHD..(3H,3HC,4H)..(BTP,STD)197410-197908

FOR BENCH SEAT, W/HEATER

main58510-30420iMS85,88,RS80..LHD..(3H,3HC,4H)..(BTP,STD)..GEN197410-197908

FOR BENCH SEAT, W/HEATER

main58510-30430iMS85,88,RS80..LHD..(3FC,4F)..(BTP,STD)..GEN197410-197908

FOR SEPARATE SEAT, W/HEATER

main58510-30440iMS85..3FC..BTP..ARL;MS85,88,RS80..RHD..(3FC,4F)..(BTP,STD)..GEN197410-197908

FOR SEPARATE SEAT, W/HEATER

58551MAT, FLOOR, REAR

main58540-30220iMS85..3FC..BTP..ARL;MS85,RS80..(3FC,4F)..BTP..GEN197410-197908

main58540-30280iMS85,RS80..(3H,3HC,4H)..BTP..GEN197410-197908

main58540-30321iMS85,RS80..(3H,3HC,4H)..BTP..GEN197611-197908

FOR W/HEATER

main58540-91702iMS88..RHD..4F197501-197908

main58540-91703iMS88..RHD..3H197501-197908

main58540-91705iMS88..LHD..3H197501-197908

main58540-91706iMS88..LHD..4F..GEN197501-197908

main58540-91728iMS88..LHD..3H197611-197908

FRONT SEATBELT,3POINT E.L.R.

main58540-91743iMS88..RHD..3H197611-197908

FRONT SEATBELT,3POINT E.L.R.

58563MAT, REAR FLOOR

main58563-91701-03iMS83197611-197908

GRAY,GRAY,TRIM1#

sub58563-91701

main58563-91701-04iMS83197611-197908

BLUE,BLUE,TRIM8#

sub58563-91701

main58563-91701-06iMS83197501-197611

BROWN,BROWN,TRIM4#

sub58563-91701

main58572-91701-03iMS88197501-197611

GRAY,GRAY,TRIM1#

sub58572-91701

main58572-91701-06iMS88197501-197611

BROWN,BROWN,TRIM4#

sub58572-91701

main58572-91701-13iMS88197611-197908

GRAY,GRAY,TRIM1#

sub58572-91701

58571SET PLATE, REAR FLOOR MAT, FRONT

main58573-91701iMS88197501-197908

58572SET PLATE, REAR FLOOR MAT, REAR

main58574-91701iMS88197501-197908

9353024010

main93530-24010

6 parts on this diagram · 1 diagram in section
