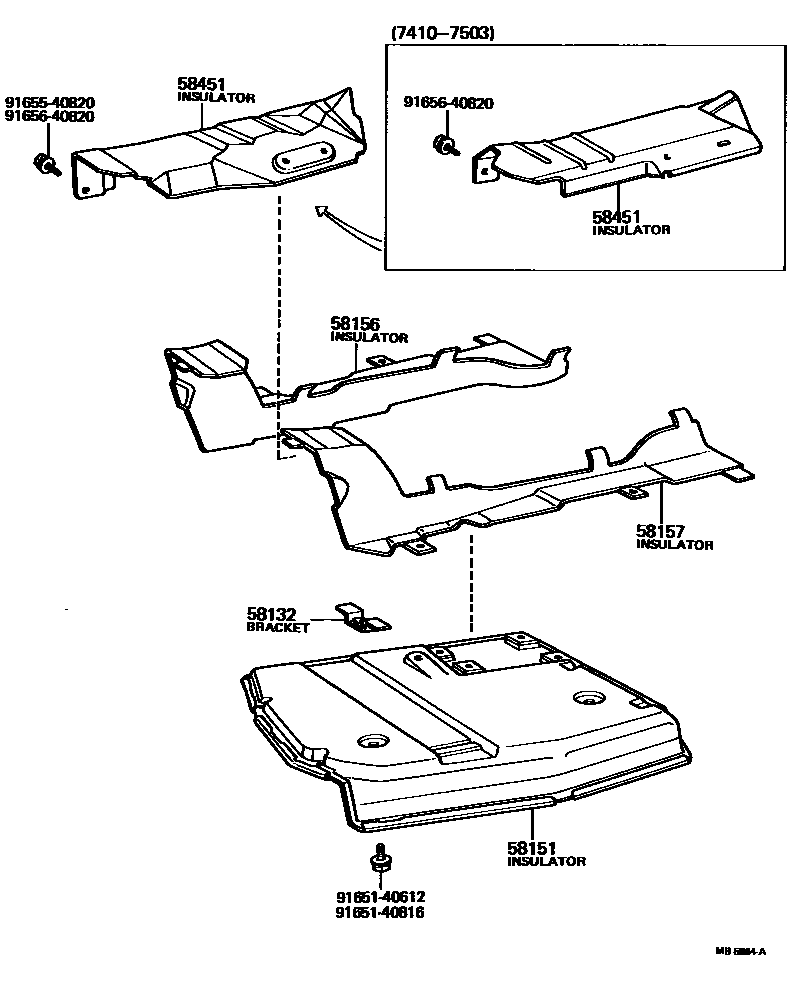

FLOOR INSULATOR

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58131-12020iMS83,85..ARL,EUR197604-197908

sub58131-14030

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-30010iMS8#..ARL,EUR197604-197908

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30010iMS8#,95,RS80197410-197908

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30010iMS8#,95,RS80197410-197908

58451INSULATOR, EXHAUST PIPE TO FLOOR

main51451-30020iMS8#,95,RS80197410-197503

main51451-30030iMS8#,95,RS80197503-197903

main51451-30031iMS8#,95,RS80197903-197908

9165140612

main91651-40612

9165140816

main91651-40816

9165540820

main91655-40820

9165640820

main91656-40820

9 parts on this diagram · 1 diagram in section
