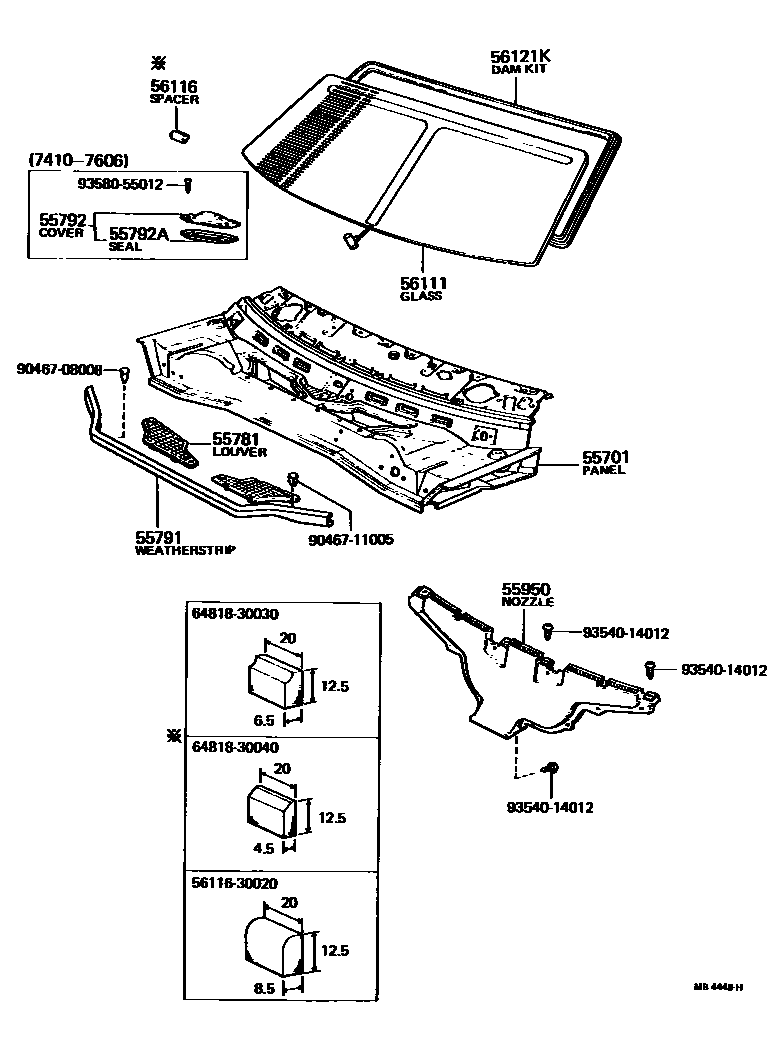

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-30110iMS8#,95,RS80..RHD197410-197611

FOR W/RADIO

main55700-30111iMS8#,95,RS80..RHD..(BTP,DLX,STD)197611-197802

main55700-30120iMS8#,95,RS80..LHD197410-197611

main55700-30121iMS8#,95,RS80..LHD..(BTP,DLX,STD)197611-197802

main55700-30130iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197611

main55700-30131iMS85..RHD..SAL197611-197802

main55700-30132iMS85..RHD..SAL197802-197902

sub90189-04014

main55700-30133iMS85..RHD..SAL197902-197908

main55700-30140iMS8#,95,RS80..LHD197410-197611

FOR W/RADIO

main55700-30141iMS85..LHD..(ROY,SAL)197611-197902

sub90189-04014

main55700-30142iMS85..LHD..(ROY,SAL)197902-197908

main55700-30151iMS85..RHD..ROY197611-197802

main55700-30152iMS85..RHD..ROY197802-197902

sub90189-04014

main55700-30153iMS85..RHD..ROY197902-197908

main55700-30160iMS85,RS80..RHD..BTP197611-197802

FOR W/RADIO

main55700-30161iMS8#,95,RS80..RHD..(BTP,DLX,STD)197802-197902

FOR W/RADIO

sub90189-04014

main55700-30162iMS8#,95,RS80..RHD..(BTP,DLX,STD)197902-197908

FOR W/RADIO

main55700-30170iMS85,RS80..LHD..BTP197611-197802

FOR W/RADIO

sub90189-04014

main55700-30171iRS80..4F..EUR;MS83,88,95..LHD;MS85..3FC..DLX..EUR;MS85,RS80..LHD..(BTP,DLX)..GEN197902-197908

FOR W/RADIO

55781LOUVER, COWL VENTILATOR

main55781-30050iMS8#,95,RS80197410-197908

RH.

main55782-30010iMS8#,95,RS80197410-197908

LH.

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-30050iMS8#,95,RS80197410-197908

55792COVER, WIPER MOTOR SERVICE HOLE

main55071-30010iMS8#,95,RS80197410-197606

55792ASEAL, WIPER MOTOR SERVICE HOLE

main55795-30020iMS8#,95,RS80197410-197606

55950NOZZLE ASSY, DEFROSTER

main55950-30010iMS8#,95,RS80..RHD197410-197908

main55950-30020iMS8#,95,RS80..LHD197410-197908

56111GLASS, WINDSHIELD

main56111-30320iMS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,RS80..(BTP,DLX,SAL)..(EUR,GEN)197611-197802

TN.LM.T=5.7

main56111-30330iMS95..LHD..4F..2D197809-197908

TN.LM.T=5.7

main56111-30340iMS83..EUR,GEN197611-197908

TN.LM.T=5.7,W/ANTENNA

main56111-30350iMS85..ARL;MS85,RS80..BTP197810-197908

ZN.TP.T=5.0

main56111-30360iMS85..ROY197511-197611

TN.LM.T=5.7,W/ANTENNA

main56111-30361iMS85..LHD..4F..DLX..GEN197809-197908

TN.LM.T=5.7,TOP SHADE TYPE

main56111-30370iMS95197410-197611

TN.LM.T=5.7,W/ANTENNA

main56111-30371iMS95197611-197908

TN.LM.T=5.7

main56111-30380iMS83..ARL197611-197802

LM.T=5.7,W/ANTENNA

main56111-30390iRS80..EUR197802-197809

LM.T=5.7

56116SPACER, WINDSHIELD GLASS

main56116-30020×2iMS83,88197802-197908

sub56116-24010

main64818-30030×2iMS95197410-197908

main64818-30040iMS8#,RS80197410-197802

LH.

56121KDAM KIT, WINDSHIELD GLASS

main04562-30020iMS8#,95,RS80197410-197908

sub04562-30030

5611630020SPACER, WINDSHIELD GLASS

main56116-30020

6481830030SPACER, BACK WINDOW GLASS

main64818-30030

6481830040SPACER, BACK WINDOW GLASS

main64818-30040

9046708008

main90467-08008

9046711005

main90467-11005

9354014012

main93540-14012

9358055012

main93580-55012

16 parts on this diagram · 1 diagram in section
