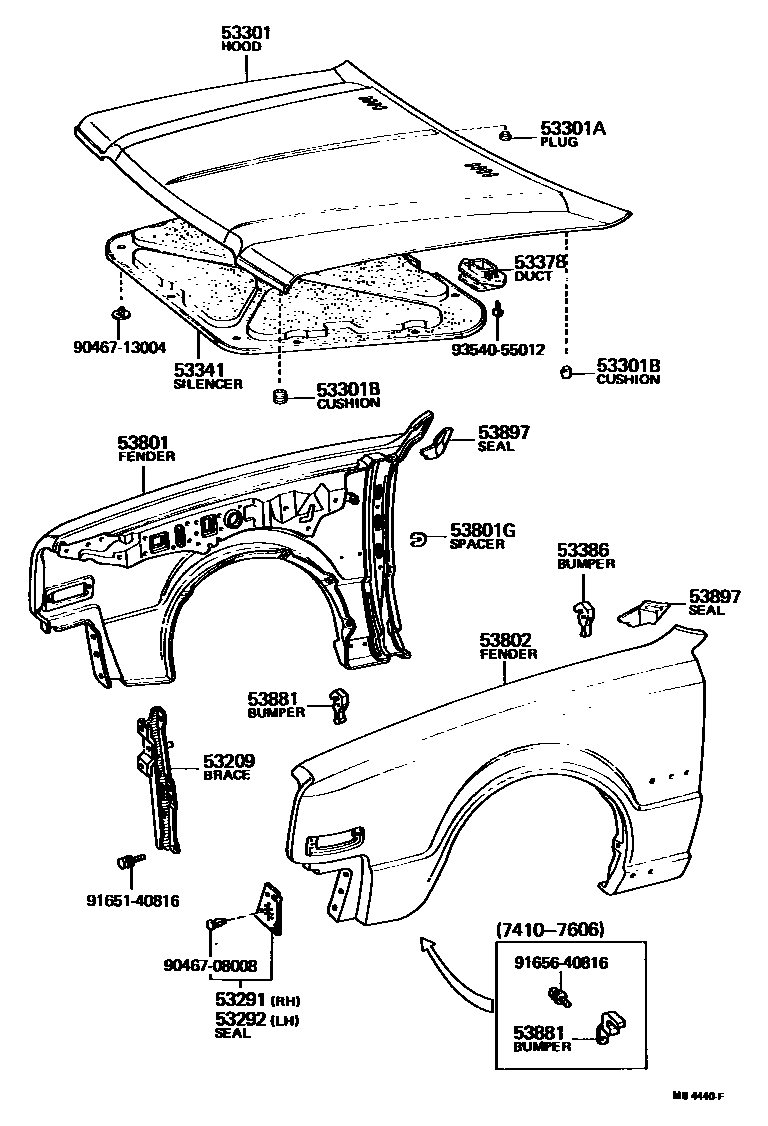

HOOD & FRONT FENDER

0001 1 0002 1

53209BRACE SUB-ASSY, HOOD LOCK

main53209-30030iMS8#,95,RS80197410-197611

main53209-30031iMS8#,95,RS80197611-197802

main53217-30022iMS8#,95,RS80197802-197908

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-30010iMS8#,95,RS80197410-197908

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-30010iMS8#,95,RS80197410-197908

53301HOOD SUB-ASSY

main53301-30040iMS8#,95,RS80197410-197611

main53301-30041iMS8#,95,RS80197611-197802

main53301-30042iMS8#,95,RS80197802-197908

53301APLUG, HOLE(FOR HOOD)

main90950-01013iMS8#,95,RS80197802-197908

OD=12

main90950-01181iMS8#,95,RS80197410-197503

OD=9

53301BCUSHION, HOOD BUMPER

main90541-09006iMS8#,95,RS80197802-197908

OD=9

main90541-09070iMS85,95,RS80197410-197501

OD=9

main90541-09126iMS8#,95,RS80197501-197802

OD=9

main90541-15001iMS8#,95,RS80197610-197802

OD=15

sub90541-15111

main90541-15002iMS8#,95,RS80197802-197908

OD=15

sub90541-15111

main90541-15111iMS8#,95,RS80197410-197610

OD=15

53341SILENCER, HOOD, NO.1

main53341-30040iMS83,85,95..DLX,ROY,SAL197410-197908

53378DUCT, HOOD AIR INTAKE

main53378-30010iMS8#,95,RS80197410-197607

53386BUMPER, HOOD, REAR

main53382-30050iMS8#,95,RS80197410-197802

main53382-30051iMS8#,95,RS80197802-197908

53801FENDER SUB-ASSY, FRONT RH

main53801-30330iMS8#,95,RS80..GEN197410-197802

W/MIRROR HOLE

main53801-30331iMS83,RS80..GEN;MS85,88..BTP,DLX,STD;MS83,RS80..LHD..(3FC,4F)..EUR197802-197908

W/MIRROR HOLE

main53801-30360iMS8#,95,RS80197410-197802

L/MIRROR HOLE

main53801-30361iMS8#,95,RS80..BTP,DLX,STD197802-197908

L/MIRROR HOLE

main53801-30381iMS85..SAL197802-197908

L/MIRROR HOLE

sub53801-30361

main53801-30401iMS85..ROY,SAL197802-197908

W/MIRROR HOLE

sub53801-30331

53801GSPACER, FRONT FENDER TO COWL PANEL

main53878-30010iMS8#,95,RS80197410-197908

53802FENDER SUB-ASSY, FRONT LH

main53802-30300iMS8#,95,RS80..GEN197410-197802

W/MIRROR HOLE

main53802-30301iMS83,RS80..GEN;MS85,88..BTP,DLX,STD;MS83,RS80..LHD..(3FC,4F)..EUR197802-197908

W/MIRROR HOLE

main53802-30330iMS8#,95,RS80197410-197802

L/MIRROR HOLE

main53802-30331iMS8#,95,RS80..BTP,DLX,STD197802-197908

L/MIRROR HOLE

main53802-30351iMS85..SAL197802-197908

L/MIRROR HOLE

sub53802-30331

main53802-30371iMS85..ROY,SAL197802-197908

W/MIRROR HOLE

sub53802-30301

53881BUMPER, FENDER TO HOOD

main53382-30050iMS8#,95,RS80197606-197802

main53382-30051iMS8#,95,RS80197802-197908

main53384-30020iMS8#,95,RS80197410-197606

53897SEAL, FRONT FENDER TO COWL

main53897-30010iMS8#,95,RS80197410-197908

RH.

main53898-30010iMS8#,95,RS80197410-197908

LH.

9046708008

main90467-08008

9046713004

main90467-13004

9165140816

main91651-40816

9165640816

main91656-40816

9354055012

main93540-55012

19 parts on this diagram · 2 diagrams in section
