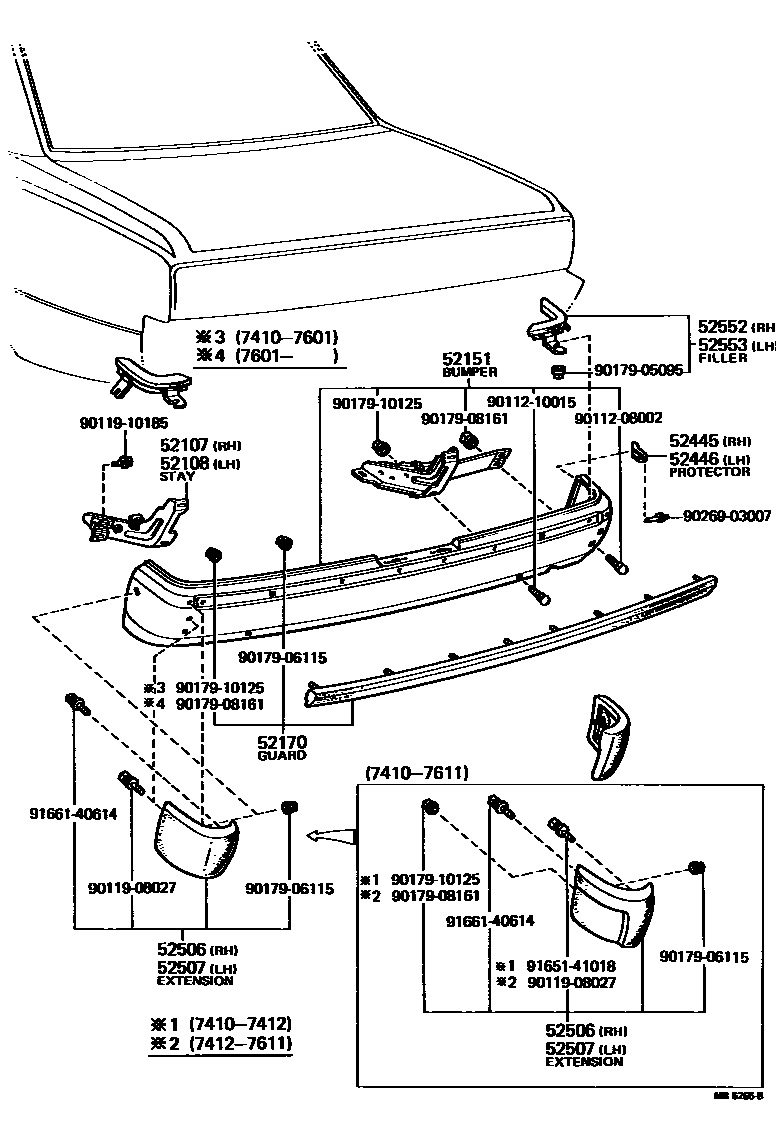

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52013-30070iMS85,RS80¥6,800197410-197908

sub52013-30080¥6,800

main52013-30080iMS95¥6,800197410-197908

main52013-91701iMS83197501-197908

main52013-91702iMS88197501-197908

52108STAY SUB-ASSY, REAR BUMPER, LH

main52014-30070iMS85,RS80¥6,800197410-197908

sub52014-30080¥6,800

main52014-30080iMS95¥6,800197410-197908

main52014-91701iMS83197501-197908

main52014-91702iMS88197501-197908

52151BUMPER ASSY, REAR

main52151-39047iMS95¥95,000197611-197908

sub52151-30102¥92,600

main52151-39057iMS95¥95,000197802-197908

FOR BUMPER GUARD

sub52151-30112

main52151-39075iMS85,95,RS80..BTP,DLX¥44,500197410-197611

sub52151-39076¥84,700

main52151-39077iMS85,RS80..BTP,DLX¥85,100197611-197908

sub52151-30132

main52151-39085iMS85..3FC..ARL;MS85,95,RS80..GEN;MS85..4F..SAL..ARL¥43,700197410-197611

FOR BUMPER GUARD

sub52151-39086¥84,700

main52151-39087iMS85..3FC..ARL;MS85,RS80..EUR,GEN;MS85..4F..SAL..ARL¥85,100197611-197908

FOR BUMPER GUARD

sub52151-30142

main52151-91911iMS83¥74,800197501-197908

sub52151-91701¥79,200

main52151-91912iMS88¥95,000197501-197908

sub52151-91702

52170GUARD SUB-ASSY, REAR BUMPER

main52055-39015iMS85,95,RS80¥21,000197410-197601

sub52055-39016¥21,000

main52055-39016iMS85..3FC..ARL;MS85..4F..SAL..ARL;MS85,95,RS80..EUR,GEN¥21,000197601-197908

52445PROTECTOR, REAR BUMPER, RH

main52541-30010iMS85,95,RS80197410-197609

sub52541-30011¥750

main52541-30011iMS85,95,RS80¥750197609-197908

52446PROTECTOR, REAR BUMPER, LH

main52541-30010iMS85,95,RS80197410-197609

sub52541-30011¥750

main52541-30011iMS85,95,RS80¥750197609-197908

52506EXTENSION SUB-ASSY, REAR BUMPER, RH

main52462-39015iMS85,95,RS80¥8,100197410-197611

main52462-39016iMS85,95,RS80¥6,100197611-197908

52507EXTENSION SUB-ASSY, REAR BUMPER, LH

main52463-39015iMS85,95,RS80¥8,100197410-197611

main52463-39016iMS85,95,RS80¥6,100197611-197908

52552FILLER, REAR BUMPER, RH

main52552-39015iMS85,95,RS80197410-197908

52553FILLER, REAR BUMPER, LH

main52553-39015iMS85,95,RS80197410-197908

9011208002

main90112-08002¥400

9011210015

main90112-10015¥470

9011908027

main90119-08027¥130

9011910185

main90119-10185¥240

9017905095

main90179-05095¥240

9017906115

main90179-06115¥120

9017908161

main90179-08161¥300

9017910125

main90179-10125¥180

9026903007

main90269-03007¥80

9165141018

main91651-41018¥120

9166140614

main91661-40614¥120

21 parts on this diagram · 2 diagrams in section
