FRONT AXLE ARM & STEERING KNUCKLE

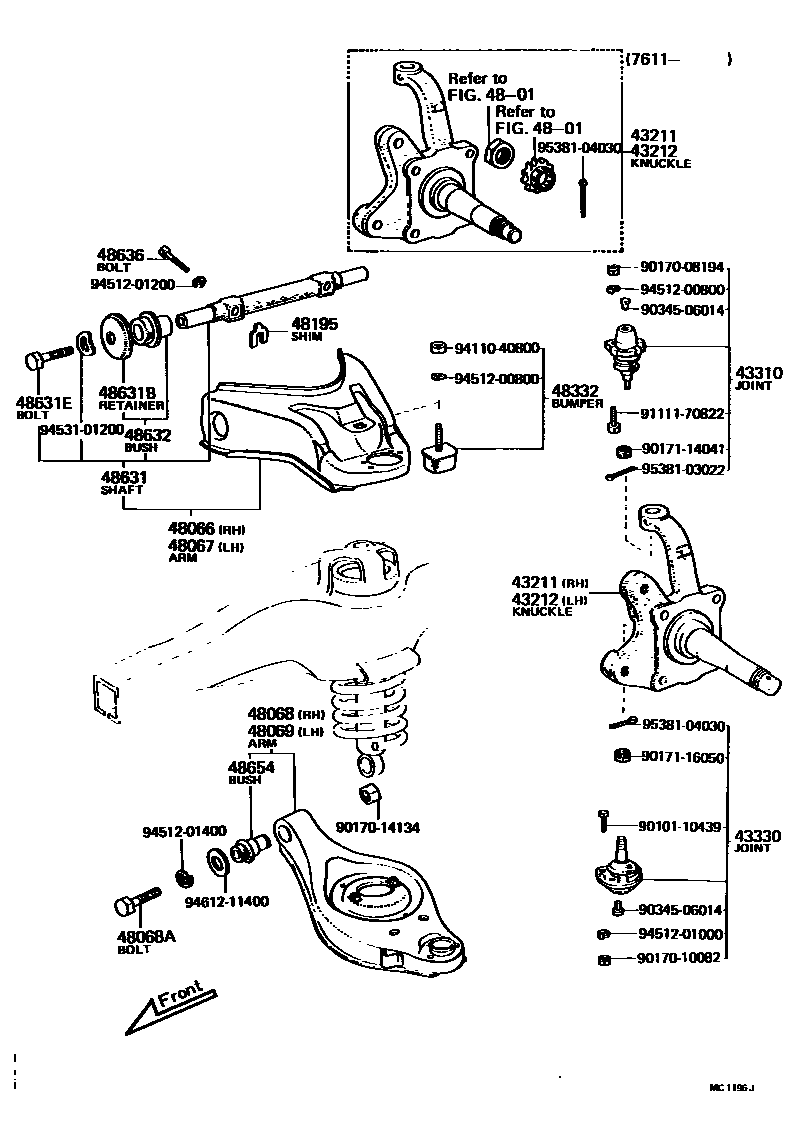

Parts diagram
43211KNUCKLE, STEERING, RH
main43211-30070i197410-197611
FOR DISC BRAKE
sub43211-39015
main43211-30080i197410-197611
FOR DRUM BRAKE
sub43211-39025
main43211-30100i197802-197908
FOR DISC BRAKE
main43211-39015i197611-197802
FOR DISC BRAKE
main43211-39025i197611-197908
FOR DRUM BRAKE
43212KNUCKLE, STEERING, LH
main43211-30080i197410-197611
FOR DRUM BRAKE
sub43211-39025
main43211-39025i197611-197908
FOR DRUM BRAKE
main43212-30040i197410-197611
FOR DISC BRAKE
sub43212-39015
main43212-30050i197802-197908
FOR DISC BRAKE
main43212-39015i197611-197802
FOR DISC BRAKE
43310JOINT ASSY, UPPER BALL
main43350-39015i197802-197908
MIDDLE EAST SPEC.
sub43350-39016
main43350-39015i197504-197611
IRAQ TAXI SPEC.
sub43350-39016
main43350-39015i197511-197908
SU.OMAN TAXI SPEC.
sub43350-39016
main43360-39015i197410-197908
sub43360-39055
43330JOINT ASSY, LOWER BALL, FRONT
main43330-39055i197410-197908
RH.
sub43330-39105
main43330-39065i197802-197908
FOR RH.,MIDDLE EAST SPEC.
sub43330-39095
main43330-39065i197504-197611
FOR RH.,IRAQ TAXI SPEC.
sub43330-39095
main43330-39065i197511-197908
FOR RH.,SU.OMAN TAXI SPEC.
sub43330-39095
main43340-39035i197410-197908
LH.
sub43340-39095
main43340-39045i197511-197908
FOR LH.,SU.OMAN TAXI SPEC.
sub43340-39085
main43340-39045i197802-197908
FOR LH.MIDDLE EAST SPEC.
sub43340-39085
main43340-39045i197504-197611
FOR LH.,IRAQ TAXI SPEC.
sub43340-39085
4801
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
main48066-30040i197410-197908
sub48066-39015
main48066-30050i197504-197611
IRAQ TAXI SPEC.
sub48066-39025
main48066-30050i197511-197908
SU.OMAN TAXI SPEC.
sub48066-39025
main48066-30050i197802-197908
MIDDLE EAST SPEC.
sub48066-39025
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
main48067-30040i197410-197908
sub48067-39015
main48067-30050i197504-197611
IRAQ TAXI SPEC.
sub48067-39025
main48067-30050i197511-197908
SU.OMAN TAXI SPEC.
sub48067-39025
main48067-30050i197802-197908
MIDDLE EAST SPEC.
sub48067-39025
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-30041i197410-197908
sub48068-30050
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
main90101-14204i197410-197908
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-30041i197410-197908
sub48069-30050
48195SHIM, CAMBER ADJUST
main90565-12023i197410-197908
T=2.3
main90565-12024i197410-197908
T=1.6
main90565-12025i197410-197908
T=1.2
48332BUMPER, FRONT SPRING, NO.2
main48305-39015i197410-197908
sub48305-30030
48631SHAFT, FRONT SUSPENSION UPPER ARM
main04485-30030i197504-197611
IRAQ TAXI SPEC.
main04485-30030i197511-197908
SU.OMAN TAXI SPEC.
main04485-30030i197802-197908
MIDDLE EAST SPEC.
main04485-30040i197410-197908
48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
main90948-02020i197410-197908
48631EBOLT(FOR UPPER SUSPENSION ARM)
main90101-12299i197410-197908
48632BUSH, UPPER ARM
main48632-30012i197504-197611
IRAQ TAXI SPEC.
main48632-30012i197511-197908
SU.OMAN TAXI SPEC.
main48632-30012i197802-197908
MIDDLE EAST SPEC.
main48632-39016i197410-197908
sub48632-39025
48636BOLT, UPPER ARM SET
main90101-12297i197410-197908
48654BUSH, LOWER ARM
main48654-30010i197410-197908
sub48654-30020
9010110439
main90101-10439
9017008194
main90170-08194
9017010082
main90170-10082
9017014134
main90170-14134
9017114041
main90171-14041
9017116050
main90171-16050
9034506014
main90345-06014
9111170822
main91111-70822
9411040800
main94110-40800
9451200800
main94512-00800
9451201000
main94512-01000
9451201200
main94512-01200
9451201400
main94512-01400
9453101200
main94531-01200
9461211400
main94612-11400
9538103022
main95381-03022
9538104030
main95381-04030

35 parts on this diagram · 2 diagrams in section
