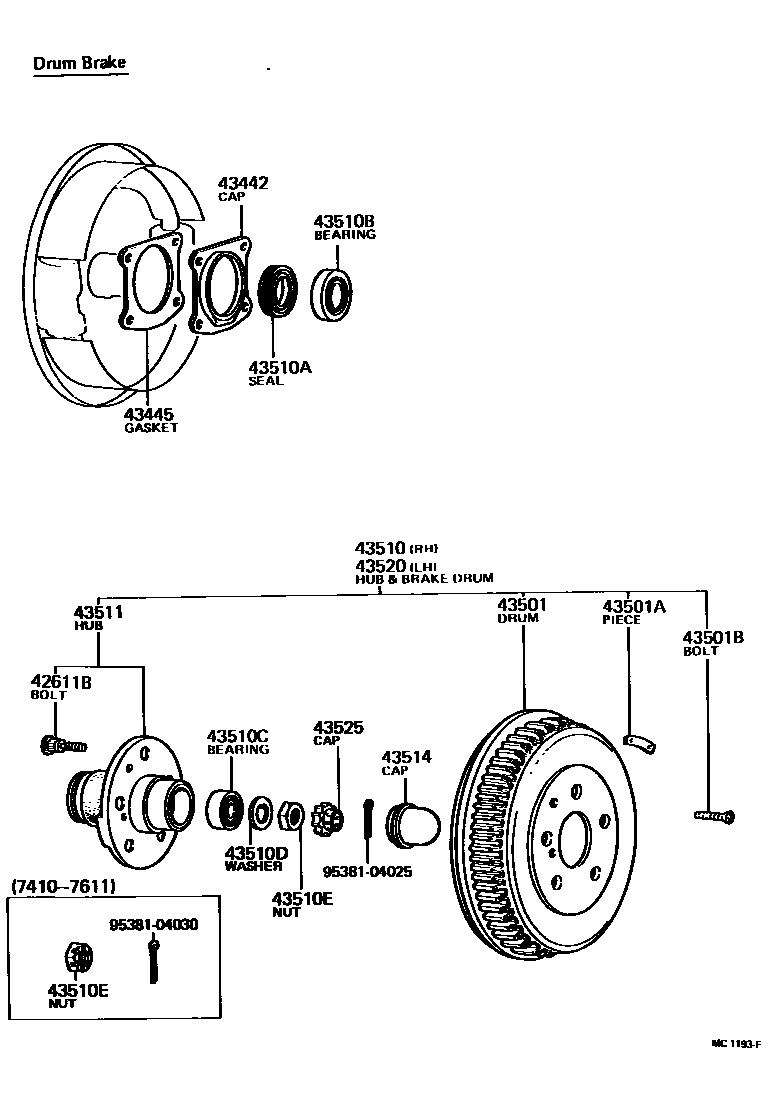

FRONT AXLE HUB
42611BBOLT, HUB (FOR FRONT AXLE)
43442CAP, KNUCKLE GREASE RETAINER, INNER
43445GASKET, KNUCKLE GREASE RETAINER CAP
43501DRUM SUB-ASSY, FRONT BRAKE
43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)
40.5G,40.5G.
10G,10G.
20G,20G.
30G,30G.
25G,50G.
56G,56G.
66G,66G.
76G,76G.
86G,86G.
96G,96G.
43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510ASEAL, OIL (FOR FRONT AXLE HUB)
sub90311-48001
43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)
43510ENUT (FOR STEERING KNUCKLE)
43511HUB, FRONT AXLE
FOR DRUM BRAKE
FOR DISC BRAKE
43514CAP, FRONT HUB GREASE
43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43525CAP, FRONT WHEEL ADJUSTING LOCK
9538104025
main95381-04025
9538104030
main95381-04030
18 parts on this diagram · 2 diagrams in section
