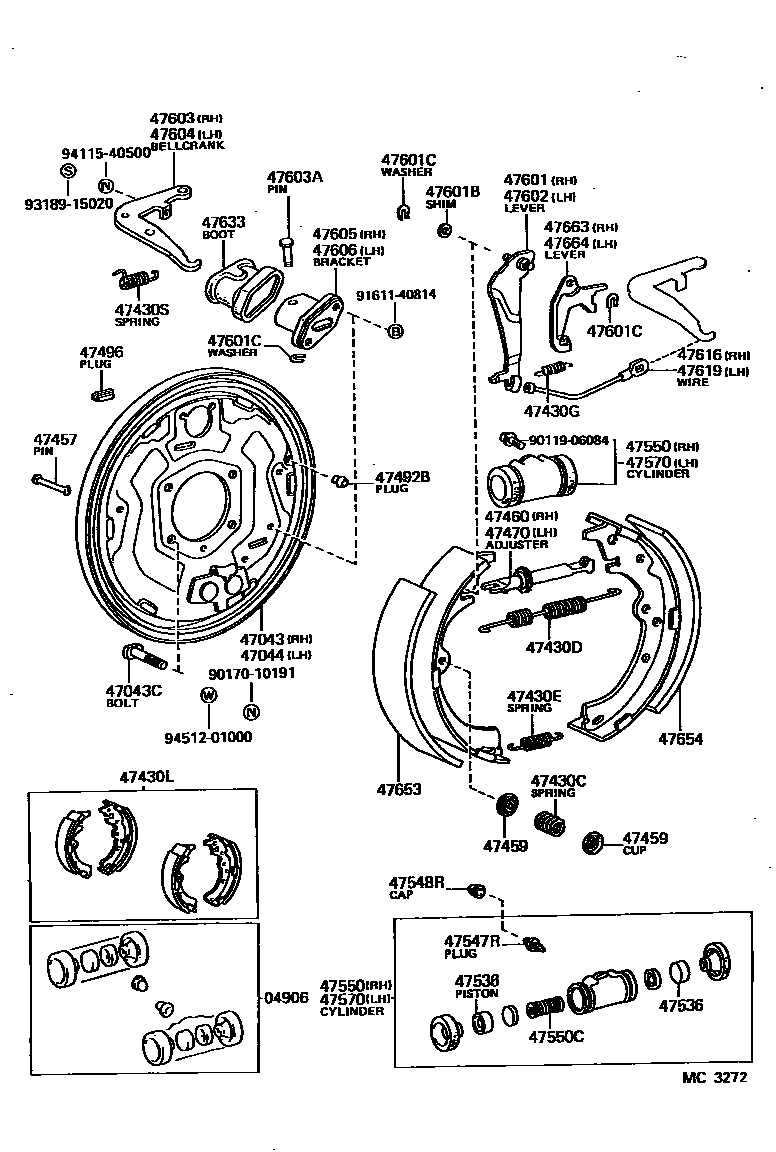

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iRS80..LHD..(4F,4H)197611-197802

FOR FR.DRUM BRAKE,ID=23.81 W/C

main04906-30060iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.ID=23.81 W/C

main04906-30060iMS85..ARL197604-197802

FOR FR.DISC BRAKE,ID=23.81 W/C

main04906-30060iMS8#,95,RS80197410-197504

FOR FRONT DISC BRAKE

main04906-30071iRS80197410-197611

FOR FRONT DRUM BRAKE

sub04906-30120

main04906-30071iRS80..GEN197611-197908

FOR FR.DRUM BRAKE,ID=25.4 W/C

sub04906-30120

main04906-30080iMS85,95,RS80..BTP,DLX,SAL197504-197611

FOR FRONT DISC BRAKE

main04906-30080iMS85,95,RS80..BTP,DLX,SAL197611-197908

FOR FR.DISC BRAKE,ID=20.64 W/C

main04906-30100iMS83,88197707-197908

FOR FR.DISC BRAKE,ID=22.22 W/C

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-30090iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

sub47043-30100

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-30021iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

*10-1.25PX45-20

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-30100iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

sub47044-30110

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003iMS8#,95,RS80..BTP,DLX,SAL,STD197506-197908

main90506-23482iMS8#,95,RS80197410-197506

sub90506-23003

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20005iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12480iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47430LSHOE KIT, REAR BRAKE

main04495-30050iMS83,88197604-197908

sub04495-30051

main04495-30050iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.

sub04495-30051

main04495-30050iMS85,95,RS80..BTP,DLX,SAL197802-197908

FOR ID=20.64 WHEEL CYLINDER

sub04495-30051

main04495-30050iRS80..LHD..4F..GEN197611-197802

FOR ID=23.81 WHEEL CYLINDER

sub04495-30051

main04495-30050iMS8#,95,RS80197410-197504

FOR FRONT DISC BRAKE

sub04495-30051

main04495-30060iMS85,95,RS80..EUR,GEN197504-197802

sub04495-30070

main04495-30060iRS80197410-197504

FOR FRONT DRUM BRAKE

sub04495-30070

main04495-30060iRS80..GEN197802-197908

FOR ID=25.40 WHEEL CYLINDER

sub04495-30070

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-18004iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20010iMS8#,95,RS80197410-197605

sub47449-30020

main47449-30020iMS8#,95,RS80..BTP,DLX,SAL,STD197605-197908

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-30010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

sub47061-30020

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-30010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

sub47062-30020

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iMS85..ARL197802-197908

OD=22.22

main47051-22040iMS85,95,RS80..BTP,DLX,SAL197504-197908

FOR FRONT DISC BRAKE OD=20.64

main47051-30030iMS83,88197611-197802

FOR FRONT DRUM BRAKE,OD=23.81

main47051-30030iRS80..LHD..4F..GEN197604-197802

OD=23.81

main47051-30030iMS8#,95,RS80197410-197504

FOR FRONT DISC BRAKE OD=23.81

main47051-30030iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.OD=23.81

main47051-30040iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE,OD=25.4

main47051-30040iRS80197410-197611

FOR FRONT DRUM BRAKE

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-39175iRS80..LHD..4F..GEN197604-197802

ID=23.81

sub47550-30100

main47550-39175iMS8#,95,RS80197410-197504

FOR FRONT DISC BRAKE ID=23.81

sub47550-30100

main47550-39175iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.ID=23.81

sub47550-30100

main47550-39175iMS85..ARL197611-197802

FOR FRONT DRUM BRAKE,ID=23.81

sub47550-30100

main47550-39185iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE,ID=25.4

sub47550-30110

main47550-39185iRS80197410-197611

FOR FRONT DRUM BRAKE

sub47550-30110

main47550-39215iMS85,95,RS80..BTP,DLX,SAL197604-197908

FOR FRONT DISC BRAKE,ID=20.64

sub47550-30120

main47550-39215iMS8#,95,RS80..BTP,DLX,SAL,STD197504-197604

FOR FRONT DISC BRAKE ID=20.64

sub47550-30120

main47550-39275iMS83,88197707-197908

ID=22.22

sub47550-30130

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010iMS85..ARL197802-197908

FOR FR.DISC BRAKE ID=22.22 W/C

main47509-20010iMS83,88197802-197908

FOR FR.DISC BRAKE,ID=22.22 W/C

main47509-22010iMS85,95,RS80..BTP,DLX,SAL197504-197611

FOR FRONT DISC BRAKE

main47509-22010iMS85,95,RS80..BTP,DLX,SAL197611-197908

FOR FR.DISC BRAKE,ID=20.64 W/C

main47509-30010iRS80..GEN197611-197908

FOR FR.DRUM BRAKE,ID=25.4 W/C.

main47509-30010iRS80197410-197611

FOR FRONT DRUM BRAKE

main47509-35020iMS83,88197611-197802

FOR FR.DISC BRAKE,ID=23.81 W/C

main47509-35020iMS83,88197611-197802

FOR FR.DISC BRAKE,ID=23,81 W/C

main47509-35020iRS80..LHD..4F..GEN197611-197802

FOR FR.DRUM BRAKE,ID=23.81 W/C

main47509-35020iMS8#,95,RS80197410-197611

FOR FRONT DISC BRAKE

main47509-35020iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.ID=23.81 W/C

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-39175iMS8#,95,RS80197410-197504

FOR FRONT DISC BRAKE ID=23.81

sub47550-30100

main47550-39175iMS83,88197604-197802

ID=23.81

sub47550-30100

main47550-39175iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.ID=23.81

sub47550-30100

main47550-39175iMS85..ARL197611-197802

FOR FRONT DRUM BRAKE,ID=23.81

sub47550-30100

main47550-39185iRS80..GEN197410-197908

FOR FRONT DRUM BRAKE,ID=25.4

sub47550-30110

main47550-39215iMS85,95,RS80..BTP,DLX,SAL197504-197908

FOR FRONT DISC BRAKE ID=20.64

sub47550-30120

main47550-39275iMS85..ARL197707-197908

ID=22.22

sub47550-30130

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-30020iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-09001iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

T=0.2,T=0.2

main90564-09002iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

T=0.4,T=0.4

main90564-09003iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

T=0.5,T=0.5

main90564-09184iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

T=0.3,T=0.3

main90564-09185iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

T=0.6,T=0.6

main90564-09186iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

T=0.9,T=0.9

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

T=1.2,T=1.2

main90213-07010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

T=1.6,T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-30020iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47603BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE)

main47624-30060iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47604BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE)

main47627-30010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47605BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE)

main47628-30040iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

sub47628-30070

47606BRACKET SUB-ASSY, BELL CRANK, LH (FOR REAR BRAKE)

main47629-30030iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

sub47629-30060

47616WIRE, PARKING BRAKE, RH

main47616-30040iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47619WIRE, PARKING BRAKE, LH

main47616-30040iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47633BOOT, PARKING BRAKE BELLCRANK

main47633-30030iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

FOR RH.

main47634-30020iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

FOR LH.

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-30050iMS8#,95,RS80197410-197504

FOR FRONT DISC BRAKE

main47655-30050iMS83,88197604-197908

main47655-30050iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.

main47655-30050iRS80..LHD..4F..GEN197611-197802

FOR ID=23.81 WHEEL CYLINDER

main47655-30050iMS85,95,RS80..BTP,DLX,SAL197802-197908

FOR ID=20.64 WHEEL CYLINDER

main47655-30060iMS85,95,RS80..BTP,DLX,SAL197504-197802

sub47655-30061

main47655-30060iRS80..GEN197802-197908

FOR ID=25.4 WHEEL CYLINDER

sub47655-30061

main47655-30060iRS80197410-197504

FOR FRONT DRUM BRAKE

sub47655-30061

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-30050iMS83,88197604-197908

main47655-30050iMS8#,95,RS80197410-197504

FOR FRONT DISC BRAKE

main47655-30050iMS85..LHD..3H..BTP197511-197802

SU.OMAN TAXI SPEC.

main47655-30050iRS80..LHD..4F..GEN197611-197802

FOR ID=23.81 WHEEL CYLINDER

main47655-30050iMS85,95,RS80..BTP,DLX,SAL197802-197908

FOR ID=20.64 WHEEL CYLINDER

main47655-30060iMS8#,95,RS80..BTP,DLX,SAL,STD197504-197802

sub47655-30061

main47655-30060iRS80197410-197504

FOR FRONT DRUM BRAKE

sub47655-30061

main47655-30060iRS80..GEN197802-197908

FOR ID=25.4 WHEEL CYLINDER

sub47655-30061

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-30010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-30010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

9011906084

main90119-06084

9017010191

main90170-10191

9161140814

main91611-40814

9318915020

main93189-15020

9411540500

main94115-40500

9451201000

main94512-01000

44 parts on this diagram · 1 diagram in section
