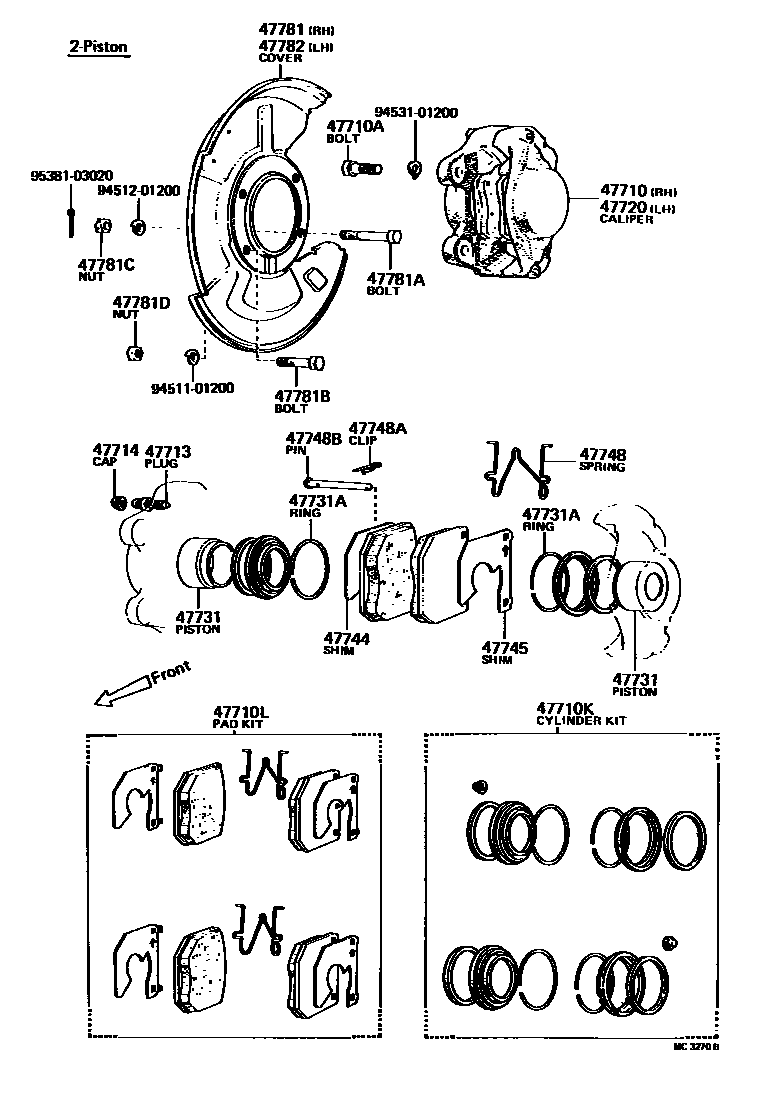

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-20091iMS8#,95,RS80197410-197502

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030×4iMS8#,95,RS80197802-197908

*12-1.25PX31-20,12-1.25PX31-20

main90101-12379×4iMS8#,95,RS80197410-197802

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-30021iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

sub04479-30022

main04479-30030iMS85..ROY197511-197802

sub04479-30031

main04479-30050iMS8#,95,RS80197802-197908

sub04479-22010

sub04479-30060

sub04479-30070

47710LPAD KIT, DISC BRAKE, FRONT

main04491-22070iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

sub04491-22071

main04491-30050iMS85..RHD..ROY197511-197710

main04491-30051iMS85..RHD..ROY197710-197802

main04491-30070iMS85..LHD..ROY197702-197802

main04491-30100iMS8#,95,RS80..BTP,DLX,SAL,STD197802-197908

sub04491-30101

main04491-30110iMS85..ROY197802-197908

sub04491-30111

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12030×2iMS8#,95,RS80197802-197908

main47547-20030×2iMS8#,95,RS80197410-197802

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iMS8#,95,RS80197410-197908

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-20091iMS8#,95,RS80197410-197502

47731PISTON, FRONT DISC BRAKE

main47731-20040×4iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

main47731-30020×4iMS85..ROY197511-197802

OD=42.82

main47731-30040×2iMS8#,95,RS80197802-197908

main47732-30010×4iMS85..ROY197511-197802

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043×4iMS85..ROY197511-197802

FOR PISTON OD=33.93

main90522-48044×4iMS85..ROY197511-197802

FOR PISTON OD=42.82

main90522-58026×4iMS8#,95,RS80197410-197802

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-30012×2iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

main47744-30100×2iMS85..ROY197511-197802

main47744-30110×2iMS8#,95,RS80197802-197908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-30100×2iMS85..ROY197511-197802

main47745-30012×2iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-30013×2iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

main47748-30020×2iMS85..ROY197511-197802

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12002×2iMS8#,95,RS80..BTP,DLX,SAL,STD197509-197802

main90468-12003×2iMS85..ROY197603-197802

main90468-12024×4iMS85..ROY197511-197603

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06098×4iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197802

main90240-06158×4iMS85..ROY197511-197802

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-30042iMS85,95,RS80197410-197411

main47703-30043iMS8#,95,RS80..BTP,DLX,SAL,STD197411-197802

main47703-30052iMS85..ROY197511-197802

main47703-30060iMS8#,95,RS80197802-197908

sub47703-30061

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12044×4iMS8#,95,RS80197410-197908

47781BBOLT(FOR DUST COVER SETTING)

main91161-51232×4iMS8#,95,RS80197608-197802

sub91162-61232

main91161-71232×4iMS8#,95,RS80197410-197608

sub91162-81230

main91611-60812×2iMS8#,95,RS80197802-197908

*8-1.25PX12-7,L=12

sub91611-B0812

main91611-60818×2iMS8#,95,RS80197802-197908

*8-1.25PX18-18,L=18

sub90119-08830

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200×4iMS8#,95,RS80197410-197908

47781DNUT(FOR DUST COVER SETTING)

main94115-41200×4iMS8#,95,RS80197608-197802

sub94130-61200

main94115-51200×4iMS8#,95,RS80197410-197608

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-30042iMS85,95,RS80197410-197411

main47704-30043iMS8#,95,RS80..BTP,DLX,SAL,STD197411-197802

main47704-30052iMS85..ROY197511-197802

main47704-30060iMS8#,95,RS80197802-197908

sub47704-30061

9451101200

main94511-01200

9451201200

main94512-01200

9453101200

main94531-01200

9538103020

main95381-03020

24 parts on this diagram · 7 diagrams in section
