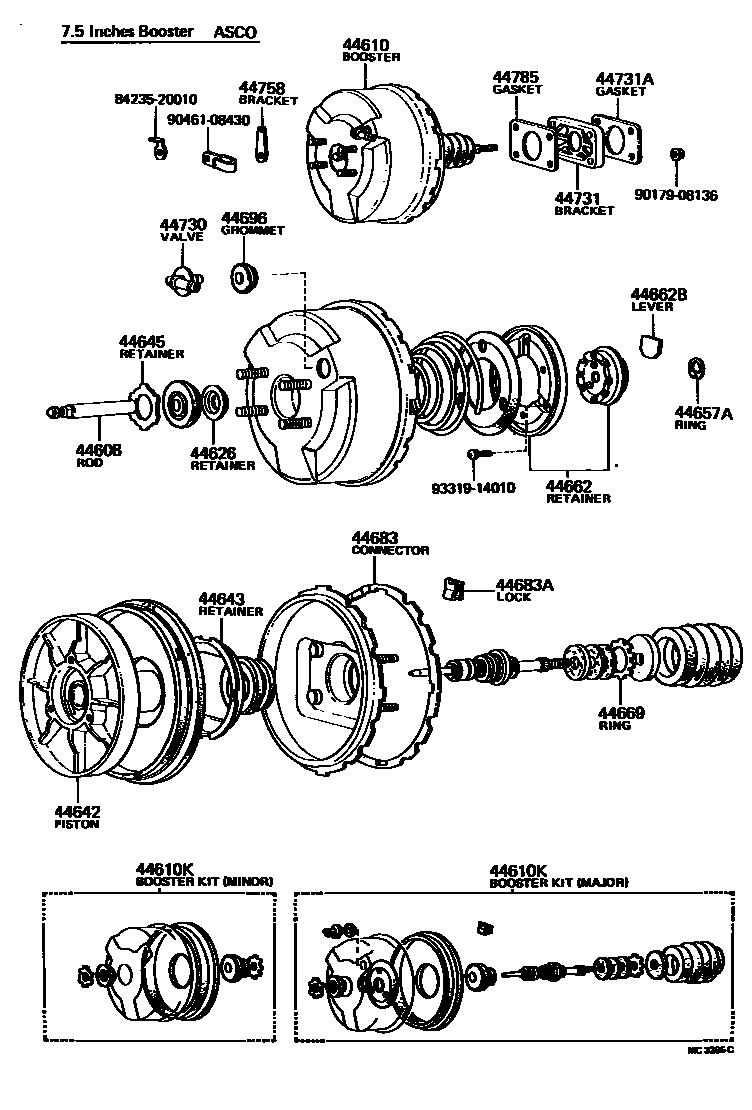

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0007 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30050iRS80..LHD197611-197908

ASCO

sub44606-35100

main44606-30050iMS8#,95,RS80197410-197908

sub44606-35100

main44608-14040iMS85..LHD..ROY197611-197908

JKK

44610BOOSTER ASSY, BRAKE

main44610-30091iMS85..ROY197511-197611

9IN. FOR FRONT&REAR DISC BRAKE

main44610-30100iRS80..RHD197410-197611

7.5IN. FOR FRONT DRUM BRAKE

sub44610-30180

main44610-30111iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197611

9IN. FOR FRONT DISC BRAKE

sub44610-30150

main44610-30121iMS8#,95..LHD197410-197611

9IN.,ASCO

sub44610-30160

main44610-30130iRS80..LHD197410-197611

7.5IN.,FRONT DRUM BRAKE,ASCO

main44610-30141iRS80..LHD197410-197611

9IN. FOR FRONT DISC BRAKE

sub44610-30170

main44610-30150iMS85..RHD..ROY197611-197802

9IN.

main44610-30160iMS8#,95..LHD197611-197802

9IN.

main44610-30170iRS80..LHD197611-197802

9IN. FOR FRONT DISC BRAKE

main44610-30180iRS80..RHD197611-197802

7.5IN. FOR FR. DRUM BRAKE ASCO

main44610-30190iRS80..LHD197611-197908

7.5IN.,FRONT DRUM BRAKE,ASCO

main44610-30200iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197802

9IN. FOR FRONT DISC BRAKE

main44610-30210iRS80..RHD197705-197908

7.5IN. FOR FR. DRUM BRAKE JKK

main44610-30240iMS85..RHD..ROY197802-197908

9IN.,ASCO

main44610-30250iMS8#,95,RS80..RHD197802-197908

9IN.FOR FRONT DISC BRAKE,JKK

main44610-30270iMS8#,95..LHD197802-197908

9IN.,JKK

main44610-30280iRS80..LHD197802-197908

9IN.FOR FRONT DISC BRAKE,JKK

44610KBOOSTER KIT, BRAKE

main04443-30050iRS80..RHD197410-197611

7.5IN. FOR FRONT DRUM BRAKE

main04443-30060iRS80..LHD197410-197611

7.5IN. FOR FRONT DRUM BRAKE

main04443-30070iMS8#,95,RS80..RHD197410-197611

9IN. FOR FRONT DISC BRAKE

main04443-30080iMS8#,95..LHD197410-197611

main04443-30090iRS80..LHD197410-197611

9IN. FOR FRONT DISC BRAKE

main04443-30100iMS85..RHD..ROY197611-197802

main04443-30110iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197802

9IN. FOR FRONT DISC BRAKE

main04443-30120iMS8#,95..LHD197611-197802

main04443-30130iRS80..LHD197611-197802

9IN. FOR FRONT DISC BRAKE

main04443-30140iRS80..RHD197611-197802

7.5IN. FOR FR. DRUM BRAKE ASCO

main04443-30150iRS80..LHD197611-197908

7.5IN.,FRONT DRUM BRAKE,ASCO

main04443-30160iRS80..RHD197705-197908

7.5IN. FOR FR. DRUM BRAKE JKK

main04443-30190iMS85..RHD..ROY197802-197908

9IN.,ASCO

main04443-30200iMS8#,95,RS80..RHD197802-197908

9IN.FOR FRONT DISC BRAKE,JKK

main04443-30220iMS8#,95..LHD197802-197908

9IN.,JKK

main04443-30230iRS80..LHD197802-197908

9IN.FOR FRONT DISC BRAKE,JKK

44626RETAINER, BOOSTER ROD CUP

main44626-60010iMS85..RHD..ROY197611-197908

FOR FRONT DRUM BRAKE

main44626-60010iMS8#,95,RS80197410-197611

44642PISTON, BRAKE BOOSTER

main44642-20330iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197802

9IN. FOR FRONT DISC BRAKE

main44642-20330iMS85..LHD..ROY197702-197802

main44642-25010iRS80197410-197908

7.5IN. FOR FR. DRUM BRAKE,ASCO

main44642-28030iRS80..RHD197802-197908

7.5IN. FOR FR.DRUM BRAKE,JKK

main44642-30030iMS85..RHD..ROY197611-197908

9IN. FOR REAR DISC ASCO

main44642-30030iMS8#,95,RS80197410-197611

9IN. FOR FRONT DISC BRAKE

main44642-30250iMS8#,95,RS80197802-197908

9IN. FOR FRONT DISC BRAKE,JKK

44643RETAINER, DIAPHRAGM

main44643-60010iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE

main44643-60010iMS8#,95,RS80197410-197908

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iMS85..RHD..ROY197410-197908

main44628-60010iRS80..LHD197611-197908

ASCO

main44645-22020iMS85..LHD..ROY197702-197807

main44645-22020iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

JKK

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iMS85..RHD..ROY197410-197908

main96150-01600iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE

44662RETAINER, REACTION, NO.1

main44609-30100iRS80197410-197908

7.5IN. FOR FRONT DRUM BRAKE

main44662-60010iMS85..RHD..ROY197410-197908

9IN. FOR FRONT DISC BRAKE

44662BLEVER, REACTION

main44661-60010iMS8#,95,RS80197410-197908

sub44661-35100

main44661-60010iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE

sub44661-35100

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iMS8#,95,RS80197410-197908

main44669-60010iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE

44683CONNECTOR, BOOSTER BODY

main44682-20150iRS80197410-197908

44683ALOCK, CONNECTOR

main44683-20100iRS80197410-197908

44696GROMMET, CHECK VALVE

main90480-24438iRS80..RHD197802-197807

FOR FRONT DRUM BRAKE

sub90480-24517

main90480-24438iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

FOR FRONT DISC BRAKE

sub90480-24517

main90480-24438iMS85..LHD..ROY197702-197807

sub90480-24517

main90480-24439iMS85..RHD..ROY197410-197908

main90480-24439iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14040iMS8#,95..LHD197410-197611

sub44730-22080

main44730-20030iRS80..GEN197611-197908

FOR FRONT DRUM BRAKE

main44730-20030iMS85..RHD..ROY197611-197908

ASCO

main44730-20040iMS8#,95..RHD197611-197908

FOR FRONT DISC BRAKE,JKK

main44730-22040iMS8#,95..RHD197410-197611

sub44730-20030

main44730-30010iMS8#,95..LHD197611-197908

JKK

main44730-60040iMS88..LHD197802-197908

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-14030iMS8#,95,RS80..RHD197802-197908

sub44731-20090

main44731-30040iMS8#,95,RS80..RHD197410-197802

sub44731-14030

main44731-30050iMS8#,95,RS80..LHD197410-197908

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-30020iMS8#,95,RS80197410-197908

44758BRACKET, VACUUM CHECK VALVE

main44758-20060iMS8#,95,RS80..RHD197410-197908

main44758-30040iRS80..LHD197410-197908

44785GASKET, BRAKE BOOSTER

main44785-30020iMS8#,95,RS80197410-197908

8423520010SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

main84235-20010

9017908136

main90179-08136

9046108430

main90461-08430

9331914010

main93319-14010

23 parts on this diagram · 5 diagrams in section
