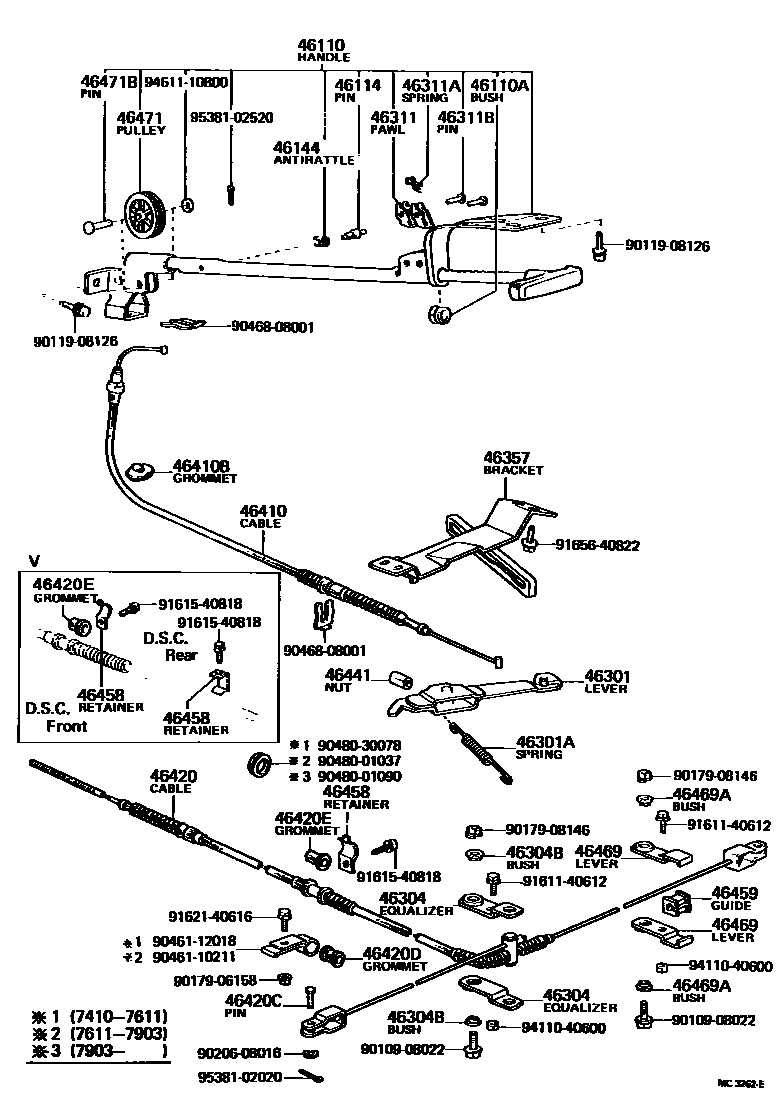

PARKING BRAKE & CABLE

0001 1 0004 1 0005 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46104-30050iMS8#,95,RS80..RHD197410-197802

main46104-30051iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197802-197908

main46104-30060iMS8#,95,RS80..LHD197410-197908

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iMS8#,95,RS80197410-197908

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iMS8#,95,RS80197410-197908

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iMS8#,95,RS80197410-197908

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-30060iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197908

main46301-30070iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197410-197908

main46301-30080iMS85..ROY197511-197611

main46301-30090iMS85..RHD..ROY197611-197908

main46301-30100iMS85..LHD..ROY197702-197908

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-20010iMS85..RHD..ROY197611-197908

main90506-20478iMS85..LHD..ROY197410-197908

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-30040iMS8#,95,RS80197410-197908

sub46341-35020

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iMS8#,95,RS80197410-197908

46311PAWL, PARKING BRAKE

main46311-30041iMS8#,95,RS80197410-197908

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-08005iMS85..RHD..ROY197611-197908

main90508-06349iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197808

main90508-08106iMS8#,95,RS80..BTP,DLX,SAL,STD197808-197908

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iMS8#,95,RS80197410-197908

46357BRACKET, LEVER SUPPORT

main46359-30030iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197903

main46359-30031iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197903-197908

main46359-30040iMS8#,95,RS80..LHD197410-197903

main46359-30041iMS8#,95,RS80..LHD197903-197908

main46359-30050iMS85..RHD..ROY197611-197903

main46359-30051iMS85..RHD..ROY197903-197908

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30120iMS8#,95,RS80..RHD197410-197601

sub46410-30160

main46410-30140iMS8#,95,RS80..LHD197410-197908

main46410-30160iMS8#,95,RS80..RHD197601-197611

main46410-30162iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197802-197908

main46410-30171iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197802

main46410-30180iMS85..RHD..ROY197611-197908

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-26043iMS8#,95,RS80197410-197908

main90480-33002iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197611-197908

main90480-33003iMS85..RHD..ROY197611-197908

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30070iMS83,85,95,RS80197410-197611

sub46420-30071

main46420-30071iMS83,85,95,RS80197611-197908

main46420-31050iMS88197501-197908

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08028iMS8#,95,RS80197410-197908

46420DGROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)

main90480-21518iMS85..LHD..ROY;MS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-17158iMS8#,95,RS80197410-197908

46441NUT, WIRE ADJUSTING, NO.1

main46441-30041iMS8#,95,RS80197410-197908

46458RETAINER, CABLE

main46458-30020iMS83,85,95,RS80197410-197908

main46458-30020iMS88197501-197908

FOR FRONT

main46458-31020iMS88197501-197908

FOR REAR

46459GUIDE, CABLE

main46459-30010iMS8#,95,RS80197410-197908

46469LEVER, CABLE GUIDE SUPPORT

main46469-30020iMS8#,95,RS80197410-197908

46469ABUSH, CABLE GUIDE SUPPORT LEVER

main90385-12029iMS8#,95,RS80197410-197908

46471PULLEY, WIRE

main46471-20010iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

main46471-30010iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197802-197908

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iMS8#,95,RS80197410-197908

9010908022

main90109-08022

9011908126

main90119-08126

9017906158

main90179-06158

9017908146

main90179-08146

9020608016

main90206-08016

9046110211

main90461-10211

9046112018

main90461-12018

9046808001

main90468-08001

9048001037

main90480-01037

9048001090

main90480-01090

9048030078

main90480-30078

9161140612

main91611-40612

9161540818

main91615-40818

9162140616

main91621-40616

9165640822

main91656-40822

9411040600

main94110-40600

9461110800

main94611-10800

9538102020

main95381-02020

9538102520

main95381-02520

44 parts on this diagram · 3 diagrams in section
