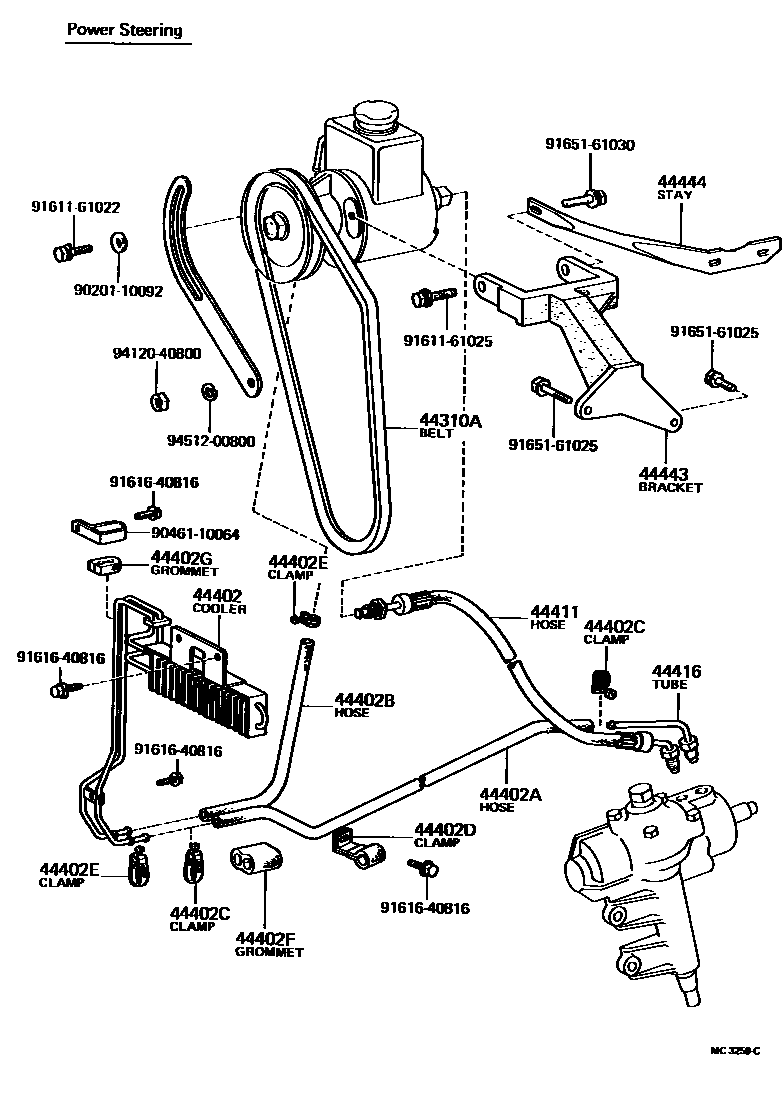

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44310ABELT, V(FOR VANE PUMP)

main90916-02078iMS8#,95..EUR,GEN197709-197908

sub90916-02465

main99332-01395iMS83,85..ARL197707-197908

L=1395

main99522-11232iMS8#,95..EUR,GEN197707-197709

sub90916-02078

main99522-11275iMS8#,95197410-197707

sub99322-01270

main99522-11390iMS83,85..ARL197604-197707

sub99322-01385

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-30030iMS8#,95197410-197611

main44402-30040iMS8#,95197611-197710

sub44402-30041

main44402-30041iMS8#,95197710-197802

main44402-30050iMS8#,95197802-197809

sub44402-30051

main44402-30051iMS8#,95197809-197908

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18035iMS8#,95..LHD197707-197908

L=500

main90445-18036iMS8#,95..RHD197707-197908

L=710

main90445-18384iMS8#,95..RHD197410-197707

L=685

sub90445-18036

main90445-18386iMS8#,95..LHD197410-197908

L=450

main90445-18722iMS8#,95..LHD197410-197707

L=480

sub90445-18035

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18035iMS8#,95197707-197908

L=500

main90445-18722iMS8#,95197410-197707

L=480

sub90445-18035

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001iMS8#,95197410-197908

PLATE TYPE

main90460-18011iMS8#,95197410-197707

WIRE TYPE

sub96112-10180

44402DCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90461-12690iMS8#,95..RHD197410-197908

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iMS8#,95197410-197908

PLATE TYPE

main90460-18011iMS8#,95197410-197707

WIRE TYPE

sub96112-10180

44402FGROMMET, POWER STEERING OIL COOLER HOSE

main90540-16072iMS8#,95197410-197906

main90540-18002iMS8#,95197906-197908

44402GGROMMET, POWER STEERING OIL COOLER HOSE

main90480-01005iMS8#,95197410-197512

44411HOSE, PRESSURE FEED

main44411-30040iMS8#,95..RHD197410-197512

main44411-30050iMS8#,95..LHD197410-197610

sub44411-30051

main44411-30051iMS8#,95..LHD197610-197904

main44411-30052iMS8#,95..LHD197904-197908

main44411-30060iMS83,85..ARL197604-197610

sub44411-30061

main44411-30061iMS83,85..ARL197610-197908

main44411-30080iMS8#,95..RHD197512-197610

sub44411-30081

main44411-30081iMS8#,95..RHD197610-197908

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-30010iMS8#,95..RHD197410-197512

main44416-30020iMS8#,95..LHD197410-197908

main44416-30040iMS8#,95..RHD197512-197908

44443BRACKET, PUMP

main44443-30010iMS8#,95..RHD197410-197512

main44443-30030iMS8#,95..LHD197410-197707

main44443-30050iMS8#,95..EUR,GEN197707-197908

sub44443-30051

44444STAY, PUMP, REAR

main44444-30020iMS8#,95..LHD197410-197611

main44444-30030iMS8#,95..RHD197410-197512

main44444-30040iMS83,85..ARL197604-197908

main44444-30050iMS8#,95..EUR,GEN197611-197707

main44444-30061iMS8#,95..EUR,GEN197707-197908

9020110092

main90201-10092

9046110064

main90461-10064

9161161022

main91611-61022

9161161025

main91611-61025

9161640816

main91616-40816

9165161025

main91651-61025

9165161030

main91651-61030

9412040800

main94120-40800

9451200800

main94512-00800

22 parts on this diagram · 4 diagrams in section
