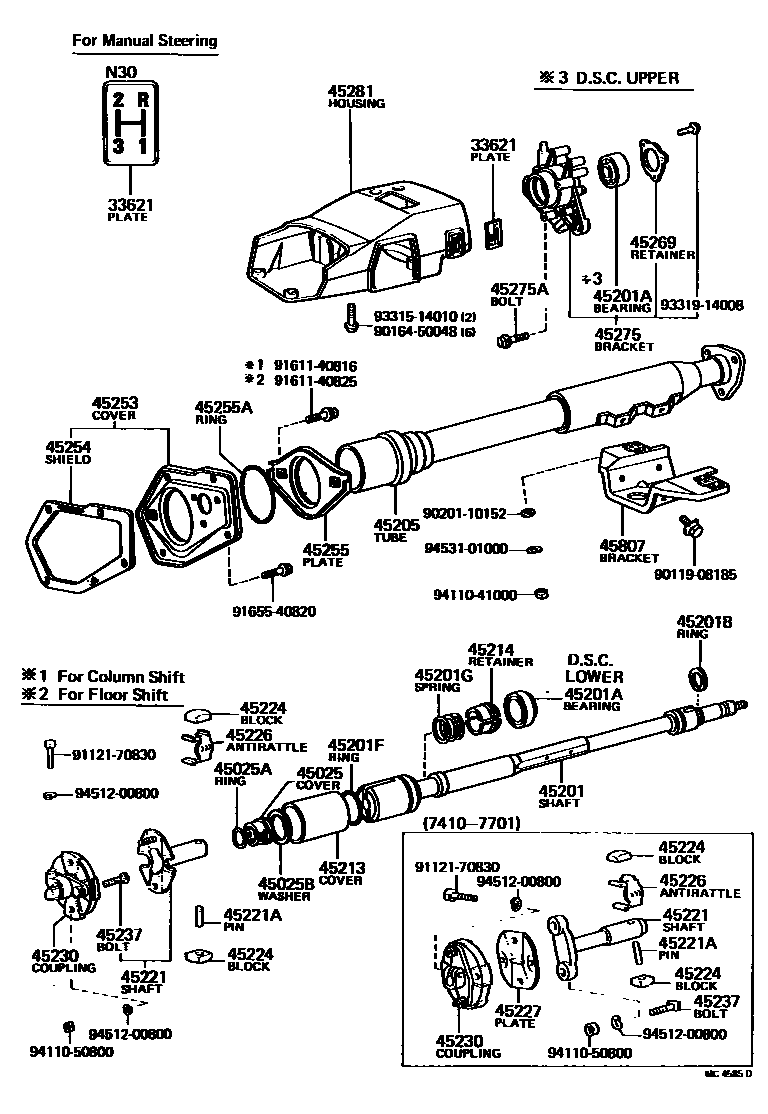

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

33621PLATE, CONTROL LEVER CAUTION

main33621-20010iRS80..RHD..4H197410-197908

main33621-30020iRS80..LHD..4H197410-197908

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-30010iMS8#,95,RS80197410-197908

45025ARING, O(FOR STEERING COLUMN HOLE COVER)

main90301-23054iMS8#,95,RS80197410-197908

45025BWASHER, PLATE(FOR STEERING COLUMN HOLE COVER)

main90201-33133iMS8#,95,RS80197410-197908

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-30030iMS8#,95,RS80197410-197610

sub45210-30031

main45210-30031iMS8#,95,RS80197610-197908

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iMS8#,95,RS80197410-197908

FOR UPPER

main90369-43027iMS8#,95,RS80197410-197908

FOR LOWER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iMS8#,95,RS80197410-197908

T=1.20,T=1.15-1.25

main90520-17196iMS8#,95,RS80197410-197908

T=1.35-1.45,T=1.35-1.45

45201FRING, O(FOR STEERING MAIN SHAFT)

main90301-42036iMS8#,95,RS80197410-197908

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-29388iMS8#,95,RS80197410-197908

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-30080iMS8#,95,RS80..RHD197410-197908

main45870-30090iMS8#,95,RS80..LHD197410-197908

45213COVER, MAIN SHAFT JOINT

main45213-30010iMS8#,95,RS80197410-197908

45214RETAINER, MAIN SHAFT SPRING

main45214-30020iMS8#,95,RS80197410-197908

45221SHAFT, STEERING INTERMEDIATE

main45220-30010iMS8#,95197607-197908

FOR POWER STEERING

main45220-30020iMS8#,95,RS80..BTP,DLX,STD197612-197908

main45221-30050iMS8#,95,RS80..BTP,DLX,STD197410-197612

main45221-30060iMS8#,95197410-197607

FOR POWER STEERING

45221APIN(FOR STEERING INTERMEDIATE SHAFT)

main90250-10059iMS8#,95,RS80197410-197908

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45224-30011iMS8#,95,RS80..BTP,DLX,STD197410-197908

L=15.97-16.00

main45224-30020iMS8#,95197410-197908

L=15.97-16.00,W/POWER STEERING

main45225-30011iMS8#,95,RS80..BTP,DLX,STD197410-197908

L=16.00-16.03

main45225-30020iMS8#,95197410-197908

L=16.00-16.03,W/POWER STEERING

45226ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING)

main45226-30010iMS8#,95,RS80..BTP,DLX,STD197410-197908

main45226-30020iMS8#,95197410-197908

FOR POWER STEERING

sub45226-30021

45227PLATE, FLEXIBLE COUPLING TORSION STOPPER

main45227-30020iMS8#,95,RS80..BTP,DLX,STD197410-197612

45230COUPLING ASSY, FLEXIBLE

main45230-30050iMS8#,95,RS80..RHD..(BTP,DLX,STD)197410-197612

main45230-30060iMS8#,95,RS80..LHD..(BTP,DLX,STD)197410-197612

main45230-30070iMS8#,95..RHD197410-197607

FOR POWER STEERING

main45230-30080iMS8#,95..LHD197410-197607

FOR POWER STEERING

main45230-30100iMS8#,95197607-197612

FOR POWER STEERING

main45230-30100iMS8#,95,RS80197612-197908

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main45237-30021iMS8#,95,RS80..BTP,DLX,STD197410-197612

main90114-08027iMS8#,95197607-197612

FOR POWER STEERING

main90114-08027iMS8#,95,RS80197612-197908

main91112-70825iMS8#,95197410-197607

FOR POWER STEERING

sub91111-70825

45253COVER, STEERING COLUMN HOLE

main45025-30020iMS8#,RS80..RHD..(3H,3HC,4H)197410-197908

main45025-30030iMS8#,95,RS80..RHD..(3FC,4F)197410-197908

main45025-30040iMS8#,RS80..LHD..(3H,3HC,4H)197410-197908

main45025-30050iMS8#,95,RS80..LHD..(3FC,4F)197410-197908

45254SHIELD, STEERING COLUMN HOLE

main45254-30060iMS8#,95,RS80197410-197908

45255PLATE, STEERING COLUMN HOLE COVER

main45255-30030iMS8#,95,RS80197410-197908

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-59001iMS8#,95,RS80197503-197908

main90301-60122iMS8#,95,RS80197410-197503

45269RETAINER, MAIN SHAFT BEARING

main45269-20010iMS8#,95,RS80197410-197908

sub45269-35010

main45269-35010iMS8#,95,RS80..3FC,3H,4F,4H197808-197908

45275BRACKET, STEERING COLUMN, UPPER

main45280-30150iMS8#,RS80..RHD..(3H,4H)197410-197808

sub45280-30151

main45280-30151iMS8#,RS80..RHD..(3H,4H)197808-197908

sub45280-30171

main45280-30160iMS8#,95,RS80..RHD..(3FC,4F)197410-197808

sub45280-30161

main45280-30161iMS8#,95,RS80..RHD..(3FC,4F)197808-197908

sub45280-60100

main45280-30170iMS85..RHD..3HC197410-197908

sub45280-30171

main45280-30180iMS8#,95,RS80..LHD..(3FC,3H,4F,4H)197410-197808

sub45280-30181

main45280-30181iMS8#,95,RS80..LHD..(3FC,3H,4F,4H)197808-197908

sub45280-60120

main45280-30190iMS85..LHD..3HC197410-197908

sub45280-20200

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main91611-40614iMS8#,95,RS80197608-197908

sub91611-60614

main91611-40616iMS8#,95,RS80197410-197608

sub91611-60616

45281HOUSING, STEERING COLUMN

main45023-30914-01iMS8#,RS80..RHD..(3H,4H)197410-197908

BLACK,BLACK,TRIM1#

sub45023-30914

main45023-30914-04iMS8#,RS80..RHD..(3H,4H)197410-197908

BLUE,BLUE,TRIM8#

sub45023-30914

main45023-30914-05iMS8#,RS80..RHD..(3H,4H)197410-197908

BEIGE,BEIGE,TRIM0#,4#

sub45023-30914

main45023-30915-01iMS8#,95,RS80..RHD..(3FC,4F)197410-197908

BLACK,BLACK,TRIM1#

sub45023-30915

main45023-30915-04iMS8#,95,RS80..RHD..(3FC,4F)197410-197908

BLUE,BLUE,TRIM8#

sub45023-30915

main45023-30915-05iMS8#,95,RS80..RHD..(3FC,4F)197410-197908

BEIGE,BEIGE,TRIM0#,4#

sub45023-30915

main45023-30916-01iMS85..RHD..3HC197410-197908

BLACK,BLACK,TRIM1#

sub45023-30916

main45023-30916-04iMS85..RHD..3HC197410-197908

BLUE,BLUE,TRIM8#

sub45023-30916

main45023-30916-05iMS85..RHD..3HC197410-197908

BEIGE,BEIGE,TRIM0#,4#

sub45023-30916

main45286-30956-01iMS8#,RS80..LHD..(3H,4H)197410-197908

BLACK,BLACK,TRIM1#

sub45286-30956

main45286-30956-04iMS8#,RS80..LHD..(3H,4H)197410-197908

BLUE,BLUE,TRIM8#

sub45286-30956

main45286-30956-05iMS8#,RS80..LHD..(3H,4H)197410-197908

BEIGE,BEIGE,TRIM0#,4#

sub45286-30956

main45286-30957-01iMS8#,95,RS80..LHD..(3FC,4F)197410-197908

BLACK,BLACK,TRIM1#

sub45286-30957

main45286-30957-04iMS8#,95,RS80..LHD..(3FC,4F)197410-197908

BLUE,BLUE,TRIM8#

sub45286-30957

main45286-30957-05iMS8#,95,RS80..LHD..(3FC,4F)197410-197908

BEIGE,BEIGE,TRIM0#,4#

sub45286-30957

main45286-30958-01iMS85..LHD..3HC197410-197908

BLACK,BLACK,TRIM1#

sub45286-30958

main45286-30958-04iMS85..LHD..3HC197410-197908

BLUE,BLUE,TRIM8#

sub45286-30958

main45286-30958-05iMS85..LHD..3HC197410-197908

BEIGE,BEIGE,TRIM0#,4#

sub45286-30958

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-30070iMS8#,95,RS80..RHD197410-197908

main45807-30080iMS8#,95,RS80..LHD197410-197908

9011908185

main90119-08185

9016450048

main90164-50048

9020110152

main90201-10152

9112170830

main91121-70830

9161140816

main91611-40816

9161140825

main91611-40825

9165540820

main91655-40820

9331514010

main93315-14010

9331914008

main93319-14008

9411041000

main94110-41000

9411050800

main94110-50800

9451200800

main94512-00800

9453101000

main94531-01000

41 parts on this diagram · 4 diagrams in section
