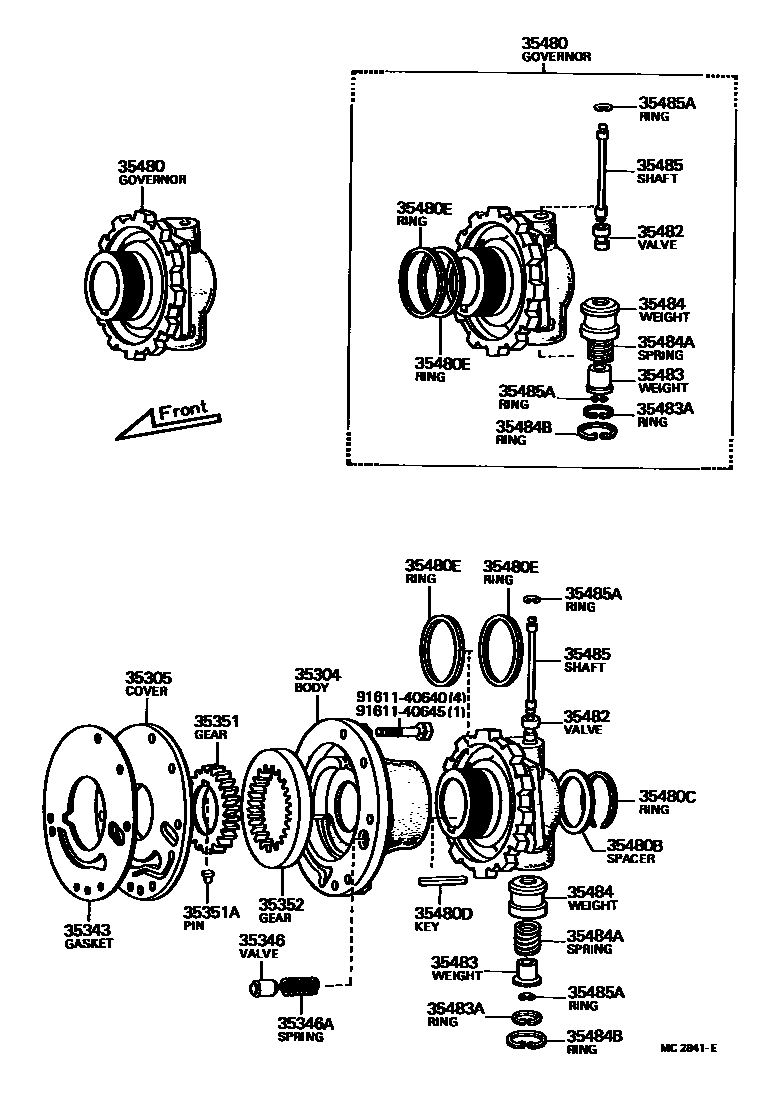

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35304BODY SUB-ASSY, REAR OIL PUMP

main35304-30014iMS83,85,95..ATM197410-197611

35305COVER SUB-ASSY, REAR OIL PUMP

main35305-30011iMS83,85,95..ATM197410-197611

35343GASKET, REAR OIL PUMP COVER

main35343-30021iMS83,85,95..ATM197410-197611

35346VALVE, PRIMING(FOR REAR OIL PUMP)

main35346-30011iMS83,85,95..ATM197410-197611

35346ASPRING, COMPRESSION(FOR PRIMING VALVE)

main90501-08478iMS83,85,95..ATM¥210197410-197611

35351GEAR, REAR OIL PUMP DRIVE

main35351-30011iMS83,85,95..ATM197410-197611

35351APIN, STRAIGHT (FOR REAR OIL PUMP DRIVE GEAR)

main90241-05029iMS83,85,95..ATM¥170197410-197611

35352GEAR, REAR OIL PUMP DRIVEN

main35352-31010iMS83,85,95..ATM¥3,340197410-197611

35480GOVERNOR

main35480-22020iMS83,85,95..ATM¥12,600197611-197908

sub35480-30040¥12,600

main35480-30021iMS83,85,95..ATM197410-197611

sub35480-39015

sub35480-39025

35480BSPACER (FOR GOVERNOR BODY SPACER OR PARKING LOCK GEAR)

main90560-30223iMS83,85,95..ATM197410-197611

35480CRING, SHAFT SNAP (FOR OUTPUT)

main90520-28009iMS83,85,95..ATM¥120197410-197611

35480DKEY, SLIDING (FOR GOVERNOR BODY SUPPORT)

main90281-05012iMS83,85,95..ATM¥540197410-197611

35480ERING (FOR REAR OIL PUMP GOVERNOR)

main35323-31011iMS83,85,95..ATM¥1,020197410-197611

35482VALVE, GOVERNOR

main35482-22010iMS83,85,95..ATM¥1,950197611-197908

main35482-30010iMS83,85,95..ATM197410-197611

35483WEIGHT, GOVERNOR, INNER

main35483-30011iMS83,85,95..ATM197410-197611

35483ARING, HOLE SNAP (FOR GOVERNOR INNER WEIGHT)

main96151-01900iMS83,85,95..ATM¥200197410-197611

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iMS83,85,95..ATM¥750197611-197908

main35484-31010iMS83,85,95..ATM197410-197611

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iMS83,85,95..ATM¥200197611-197908

main90501-12508iMS83,85,95..ATM197410-197611

35484BRING, HOLE SNAP (FOR GOVERNOR OUTER WEIGHT)

main96151-02500iMS83,85,95..ATM¥100197410-197611

35485SHAFT, GOVERNOR VALVE

main35485-22010iMS83,85,95..ATM¥1,220197611-197908

main35485-31012iMS83,85,95..ATM197410-197611

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-03007iMS83,85,95..ATM¥160197410-197611

main90523-05020iMS83,85,95..ATM¥190197611-197908

9161140640

main91611-40640¥160

9161140645

main91611-40645¥140

23 parts on this diagram · 2 diagrams in section
