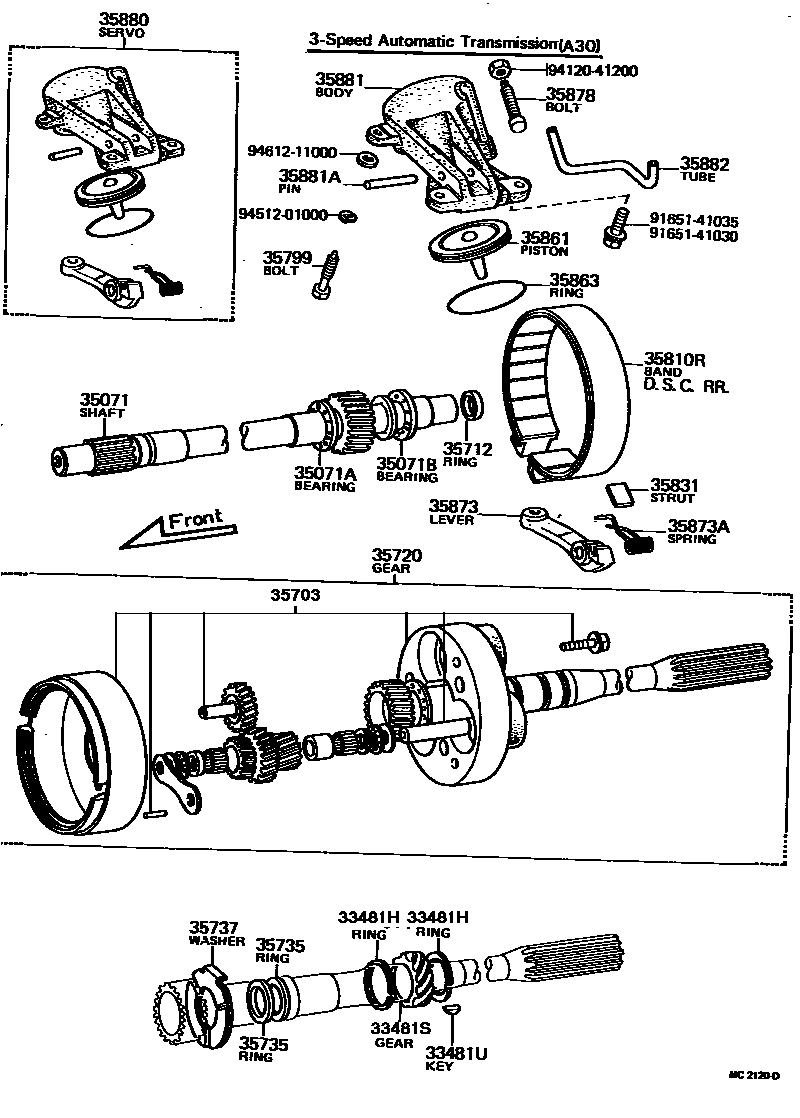

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
33481HRING, SHAFT SNAP (FOR ATM SPEEDMETER DRIVE GEAR)
33481SGEAR, SPEEDOMETER DRIVE (ATM)
N=6
N=6,MARK 6X18-20,N=6
33481UBALL (FOR SPEEDOMETER DRIVE GEAR)
35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35071ABEARING, THRUST(FOR INTERMEDIATE SHAFT FRONT)
35071BBEARING, THRUST(FOR INTERMEDIATE SHAFT REAR)
35703CARRIER SUB-ASSY, PLANETARY
35712RING, PLANETARY INTERMEDIATE SHAFT OIL SEAL
35720GEAR ASSY, FRONT PLANETARY
35735RING, PLANETARY OUTPUT SNAP
35737WASHER, PLANETARY CARRIER THRUST
35799BOLT, CENTER SUPPORT, NO.2
35810RBAND ASSY, TRANSMISSION BRAKE (FOR REAR)
sub35808-40021
35831STRUT, BRAKE BAND APPLY
35861PISTON, REVERSE
35863RING, REVERSE PISTON OIL SEAL, OUTER
35873LEVER, REVERSE BRAKE BAND APPLY
sub35873-40030
35873ASPRING, TORSION (FOR BRAKE BAND)
35878BOLT, REAR BRAKE BAND ANCHOR
35880SERVO ASSY, REAR
35881BODY, REAR SERVO
35881APIN, STRAIGHT (FOR REAR SERVO BODY)
sub90245-10042
35882TUBE, REAR SERVO APPLY
9165141030
main91651-41030
9165141035
main91651-41035
9412041200
main94120-41200
9451201000
main94512-01000
9461211000
main94612-11000
28 parts on this diagram · 2 diagrams in section
