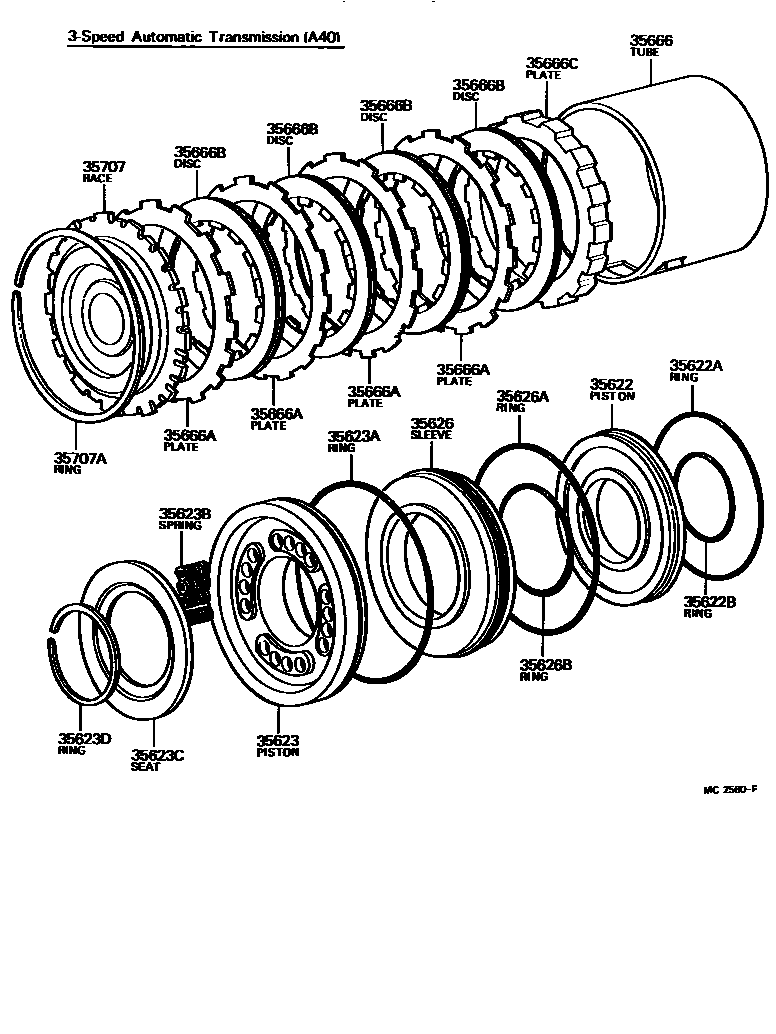

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35622PISTON, BRAKE, NO.2

main35622-22010iMS83,85,95..ATM¥1,850197611-197908

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iMS83,85,95..ATM¥800197611-197908

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iMS83,85,95..ATM¥630197611-197908

35623PISTON, BRAKE, NO.3

main35623-22010iMS83,85,95..ATM¥2,330197611-197908

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iMS83,85,95..ATM¥800197611-197908

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iMS83,85,95..ATM¥190197611-197908

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iMS83,85,95..ATM¥530197611-197908

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iMS83,85,95..ATM¥240197611-197908

35626SLEEVE, BRAKE REACTION

main35626-22010iMS83,85,95..ATM¥2,100197611-197908

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iMS83,85,95..ATM¥800197611-197908

sub90301-99109¥190

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iMS83,85,95..ATM¥630197611-197908

sub90301-67005¥190

35666TUBE, BRAKE APPLY

main35666-22010iMS83,85,95..ATM¥2,320197611-197908

sub35666-26010¥2,470

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22050iMS83,85,95..ATM¥2,520197611-197908

sub35634-22080¥2,640

35666BDISC, CLUTCH (FOR BRAKE)

main35633-22030iMS83,85,95..ATM¥2,630197611-197908

sub35633-30030¥2,780

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iMS83,85,95..ATM¥3,250197611-197908

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-22010iMS83,85,95..ATM¥12,200197611-197908

sub35707-30010¥11,600

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iMS83,85,95..ATM¥520197611-197908

17 parts on this diagram · 1 diagram in section
