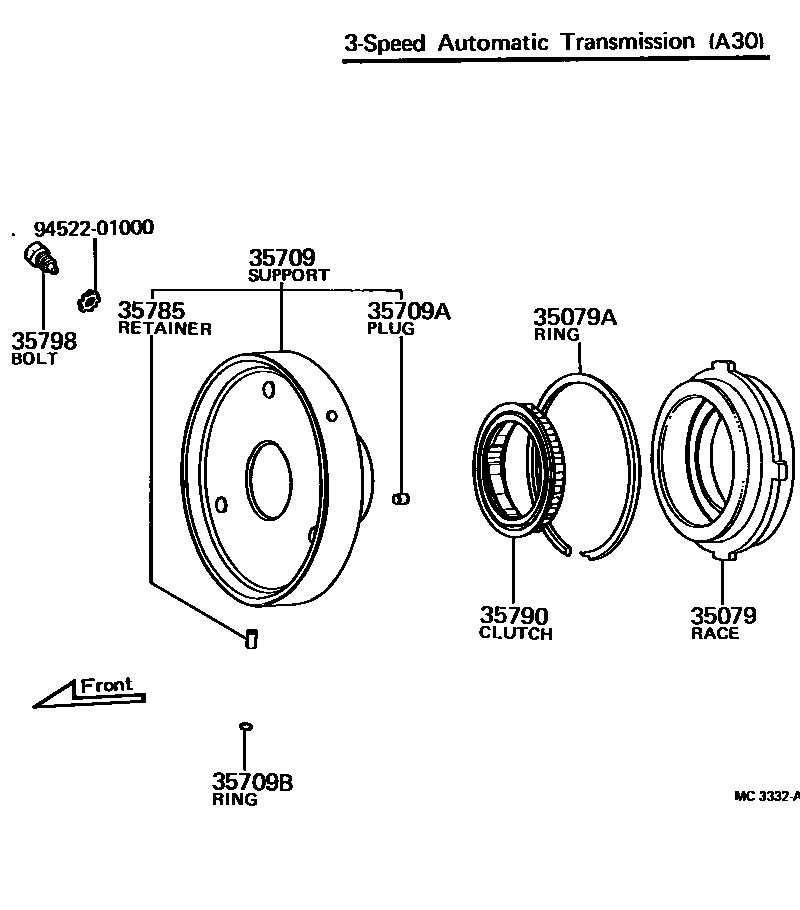

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0002 1

35079RACE SUB-ASSY, 1 WAY CLUTCH, OUTER

main35079-40010iMS83,85,95..ATM197410-197611

35079ARING, HOLE SNAP(FOR CLUTCH RACE SET)

main90521-99099iMS83,85,95..ATM197410-197611

35709SUPPORT SUB-ASSY, CENTER

main35709-22030iMS83,85,95..ATM197611-197908

main35709-30010iMS83,85,95..ATM197410-197611

35709APLUG, STRAIGHT (FOR CENTER SUPPORT)

main90334-05001iMS83,85,95..ATM197410-197611

35709BRING, O (FOR CENTER SUPPORT)

main90301-04110iMS83,85,95..ATM197410-197611

35785RETAINER, CENTER SUPPORT RING

main35785-30010iMS83,85,95..ATM197410-197611

35790CLUTCH ASSY, 1 WAY

main35790-30010iMS83,85,95..ATM197410-197611

main35791-22020iMS83,85,95..ATM197611-197908

sub35791-30020

35798BOLT, CENTER SUPPORT, NO.1

main35798-30010iMS83,85,95..ATM197410-197611

9452201000

main94522-01000

9 parts on this diagram · 2 diagrams in section
