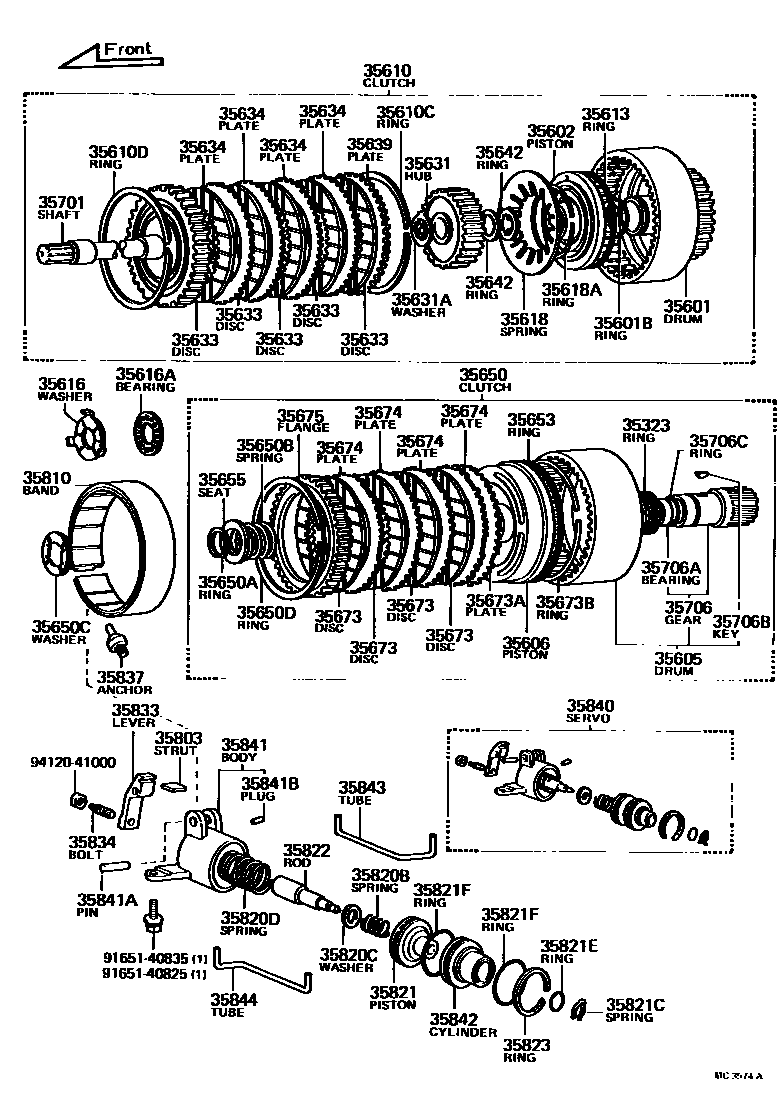

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0002 1

35323RING (FOR OIL SEAL)

main35323-31011iMS83,85,95..ATM¥1,020197410-197611

35601DRUM SUB-ASSY, CLUTCH

main35611-30011iMS83,85,95..ATM197410-197611

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-30113iMS83,85,95..ATM¥330197410-197611

main90301-57188iMS83,85,95..ATM¥630197611-197908

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-22010iMS83,85,95..ATM¥5,200197611-197908

sub35602-12031¥5,400

sub35615-30020¥450

sub90301-99016¥800

sub90501-10671¥190

main35602-30030iMS83,85,95..ATM¥3,810197410-197611

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22010iMS83,85,95..ATM¥8,900197706-197908

main35605-30011iMS83,85,95..ATM¥34,400197410-197611

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iMS83,85,95..ATM¥1,890197611-197908

main35606-40010iMS83,85,95..ATM197410-197611

35610CLUTCH ASSY, FRONT MULTIPLE DISC

main35610-22010iMS83,85,95..ATM197611-197802

main35610-30040iMS83,85,95..ATM197410-197611

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iMS83,85,95..ATM¥170197611-197908

main90521-99098iMS83,85,95..ATM¥1,390197410-197611

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90521-99099iMS83,85,95..ATM¥1,390197410-197611

T=1.15-1.25

main90521-99106iMS83,85,95..ATM197410-197611

T=1.30-1.40

main90521-99139iMS83,85,95..ATM¥470197611-197908

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main35613-30010iMS83,85,95..ATM197410-197611

main90301-99192iMS83,85,95..ATM¥800197611-197908

35616WASHER, CLUTCH DRUM THRUST

main35616-30021iMS83,85,95..ATM197410-197611

T=1.2

main35616-30031iMS83,85,95..ATM197410-197611

T=0.8

main35616-30040iMS83,85,95..ATM197410-197611

T=1.0

35616ABEARING, FRONT CLUTCH THRUST

main90374-28006iMS83,85,95..ATM197410-197611

35618SPRING, FRONT CLUTCH PISTON RETURN

main35618-30011iMS83,85,95..ATM197410-197611

35618ARING, PISTON RETURN SPRING SET

main90522-64015iMS83,85,95..ATM¥240197410-197611

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-22010iMS83,85,95..ATM¥7,700197611-197908

sub35631-30040¥6,600

main35631-30020iMS83,85,95..ATM¥9,200197410-197611

sub35631-40010¥9,100

sub90209-18088¥530

sub90374-20007

35631AWASHER(FOR TOYOGLIDE CLUTCH HUB THRUST)

main90214-16027iMS83,85,95..ATM¥530197410-197611

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35633-40010iMS83,85,95..ATM¥3,360197410-197611

main35677-22020iMS83,85,95..ATM¥3,500197611-197908

NSK-WARNER

sub35677-30030¥3,010

main35677-22030iMS83,85,95..ATM¥3,160197611-197908

AISIN CHEMICAL

sub35677-22020¥3,500

35634PLATE, FRONT CLUTCH

main35634-22040iMS83,85,95..ATM¥1,900197611-197908

T=1.8,NSK-WARNER

main35634-22070iMS83,85,95..ATM¥2,620197611-197908

T=1.8,AISIN CHEMICAL

sub35634-22040¥1,900

main35634-30020iMS83,85,95..ATM197410-197611

T=1.50-1.65

main35634-30040iMS83,85,95..ATM197410-197611

T=1.30-1.45

main35634-30050iMS83,85,95..ATM¥1,330197410-197611

T=1.70-1.85

35639PLATE, FRONT CLUTCH PRESSURE

main35639-40010iMS83,85,95..ATM197410-197611

35642RING, CLUTCH HUB OIL SEAL

main35642-30011iMS83,85,95..ATM197410-197611

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-20010iMS83,85,95..ATM197611-197706

main35650-40012iMS83,85,95..ATM197410-197611

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iMS83,85,95..ATM¥170197611-197908

main96152-00320iMS83,85,95..ATM¥210197410-197611

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-55407iMS83,85,95..ATM¥750197410-197611

main90501-60672iMS83,85,95..ATM¥1,660197611-197908

35650CWASHER, CLAW (FOR REAR MULTIPLE DISC CLUTCH)

main90214-32022iMS83,85,95..ATM¥630197410-197611

35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)

main90521-99099iMS83,85,95..ATM¥1,390197410-197611

main90521-99139iMS83,85,95..ATM¥470197611-197908

35653RING, REAR CLUTCH OIL SEAL, OUTER

main35653-30010iMS83,85,95..ATM¥750197410-197611

main90301-84184iMS83,85,95..ATM¥700197611-197908

sub90301-83001¥470

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-22010iMS83,85,95..ATM¥1,020197611-197908

main35655-30010iMS83,85,95..ATM197410-197611

35673DISC, REAR CLUTCH

main35633-40010iMS83,85,95..ATM¥3,360197410-197611

main35677-22020iMS83,85,95..ATM¥3,500197611-197908

NSK-WARNER

sub35677-30030¥3,010

main35677-22030iMS83,85,95..ATM¥3,160197611-197908

AISIN CHEMICAL

sub35677-22020¥3,500

35673APLATE, REAR CLUTCH CUSHION

main35673-14010iMS83,85,95..ATM197410-197611

35673BRING, REAR CLUTCH

main90522-99036iMS83,85,95..ATM197410-197611

35674PLATE, REAR CLUTCH

main35634-22040iMS83,85,95..ATM¥1,900197611-197908

NSK-WARNER

main35634-22070iMS83,85,95..ATM¥2,620197611-197908

AISIN CHEMICAL

sub35634-22040¥1,900

main35674-30010iMS83,85,95..ATM197410-197611

35675FLANGE, REAR CLUTCH

main35675-22010iMS83,85,95..ATM¥4,440197611-197908

T=4.0

sub35675-22140¥3,780

main35675-30011iMS83,85,95..ATM197410-197611

35701SHAFT SUB-ASSY, INPUT

main35701-22010iMS83,85,95..ATM¥29,200197802-197908

main35701-30012iMS83,85,95..ATM197410-197611

35706GEAR SUB-ASSY, PLANETARY SUN

main35706-22011iMS83,85,95..ATM¥16,800197611-197908

main35706-30010iMS83,85,95..ATM197410-197611

35706ABEARING, NEEDLE ROLLER (FOR 2ND SUN GEAR)

main90364-20020iMS83,85,95..ATM197410-197611

35706BKEY, WOODRUFF (FOR 2ND SUN GEAR)

main90280-05008iMS83,85,95..ATM¥220197410-197611

35706CRING, O (FOR 2ND SUN GEAR)

main90301-25107iMS83,85,95..ATM¥330197410-197611

35803STRUT SUB-ASSY, LOW BRAKE BAND APPLY

main35803-30020iMS83,85,95..ATM197410-197611

L=28

main35803-30030iMS83,85,95..ATM197410-197611

L=29

35810BAND ASSY, TRANSMISSION BRAKE (FOR FRONT)

main35801-40020iMS83,85,95..ATM¥8,800197410-197611

sub35801-40021¥8,800

35820BSPRING, COMPRESSION (FOR LOW SERVO PISTON INNER)

main90501-32335iMS83,85,95..ATM197410-197611

35820CWASHER, PLATE (FOR LOW SERVO PISTON RETURN SPRING)

main90201-12259iMS83,85,95..ATM¥180197410-197611

35820DSPRING, COMPRESSION (FOR LOW SERVO PISTON RETURN)

main90501-26330iMS83,85,95..ATM¥240197410-197611

35821PISTON, LOW SERVO

main35821-30010iMS83,85,95..ATM197410-197611

35821CSPRING, LOW SERVO PISTON SPRING LOCK RETAINER

main90524-07007iMS83,85,95..ATM197410-197611

35821ERING, O (FOR SERVO PISTON TO SERVO PISTON CYLINDER)

main90301-24128iMS83,85,95..ATM¥350197410-197611

35821FRING, O (FOR SERVO PISTON TO SERVO BODY)

main90301-48148iMS83,85,95..ATM¥580197410-197611

35822ROD, LOW SERVO PISTON

main35822-30010iMS83,85,95..ATM197410-197611

35823RING, SERVO PISTON

main90521-58097iMS83,85,95..ATM¥160197410-197611

35833LEVER, FRONT BRAKE BAND APPLY

main35833-40011iMS83,85,95..ATM197410-197611

35834BOLT, FRONT BRAKE BAND APPLY

main35834-30010iMS83,85,95..ATM197410-197611

35837ANCHOR, FRONT BRAKE BAND

main35837-30012iMS83,85,95..ATM197410-197611

35840SERVO ASSY, FRONT

main35840-40010iMS83,85,95..ATM197410-197611

sub35084-40011

sub35820-30020

sub35833-40011

sub35834-30010

sub35842-30010

sub90245-10043¥370

sub90301-24128¥350

sub90301-48148¥580

sub90501-26330¥240

sub90521-58097¥160

sub94120-41000¥80

35841BODY, FRONT SERVO

main35084-40011iMS83,85,95..ATM197410-197611

35841APIN (FOR FRONT SERVO BODY)

main90245-10043iMS83,85,95..ATM¥370197410-197611

35841BPLUG, STRAIGHT (FOR FRONT SERVO BODY)

main90334-05013iMS83,85,95..ATM197410-197611

35842CYLINDER, FRONT SERVO PISTON

main35842-30010iMS83,85,95..ATM197410-197611

35843TUBE, FRONT SERVO APPLY

main35843-30010iMS83,85,95..ATM197410-197611

35844TUBE, FRONT SERVO RELEASE

main35844-30010iMS83,85,95..ATM197410-197611

9165140825

main91651-40825¥200

9165140835

main91651-40835¥250

9412041000

main94120-41000¥80
