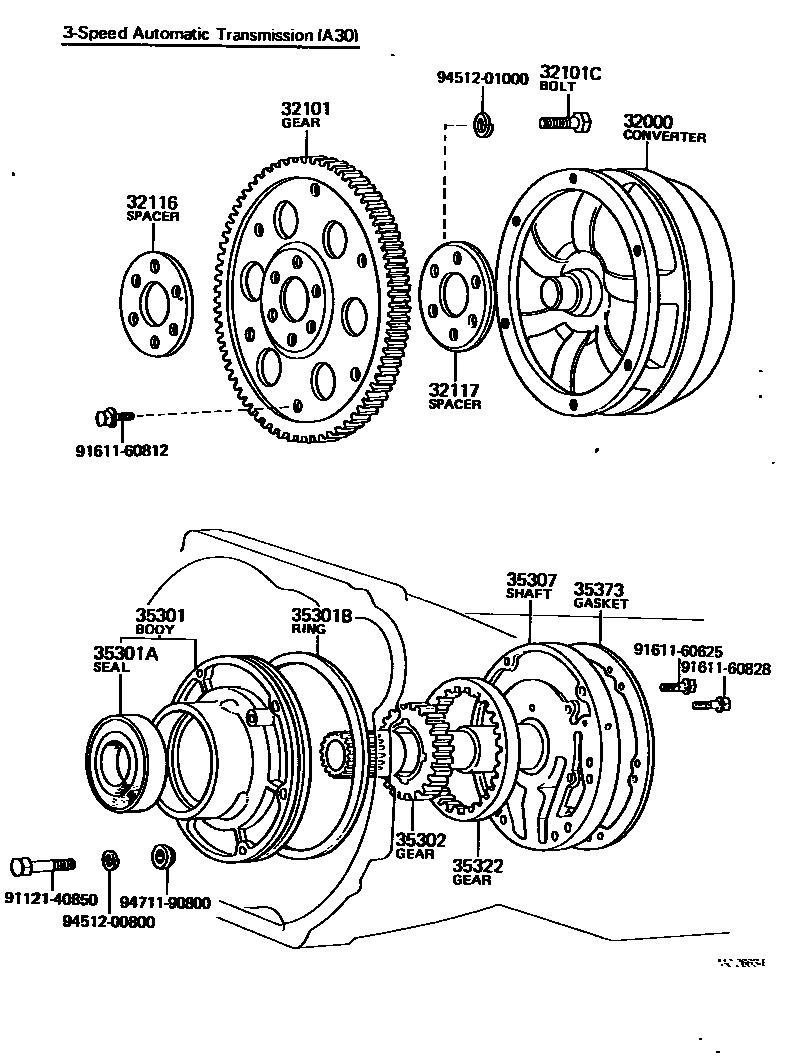

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-22030iMS83,85,95..ATM197611-197908

main32000-30070iMS83,85,95..ATM197410-197611

sub32000-30071

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-30040iMS83,85,95..ATM197410-197908

sub32101-30060

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90101-10452iMS83,85,95..ATM197410-197908

32116SPACER, DRIVE PLATE, FRONT

main32116-30010iMS83,85,95..ATM197410-197907

sub32116-30011

main32116-30011iMS83,85,95..ATM197907-197908

32117SPACER, DRIVE PLATE, REAR

main32117-30010iMS83,85,95..ATM197410-197907

main32117-30011iMS83,85,95..ATM197907-197908

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-22011iMS83,85,95..ATM197611-197908

sub35301-30030

sub90101-06002

sub90101-08046

sub90301-99010

main35301-30012iMS83,85,95..ATM197410-197611

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iMS83,85,95..ATM197611-197908

sub90311-38020

main90311-45084iMS83,85,95..ATM197410-197611

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iMS83,85,95..ATM197611-197908

main90301-99108iMS83,85,95..ATM197410-197611

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35302-30011iMS83,85,95..ATM197410-197611

main35321-22010iMS83,85,95..ATM197611-197908

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35307-22011iMS83,85,95..ATM197611-197908

sub35370-22010

main35307-35010iMS83,85,95..ATM197410-197611

sub35307-30014

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iMS83,85,95..ATM197611-197908

T=15.286-15.235

sub35322-22090

main35322-30010iMS83,85,95..ATM197410-197611

35373GASKET, STATOR SHAFT

main35373-30010iMS83,85,95..ATM197410-197611

9112140850

main91121-40850

9161160625

main91611-60625

9161160812

main91611-60812

9161160828

main91611-60828

9451200800

main94512-00800

9451201000

main94512-01000

9471190800

main94711-90800

19 parts on this diagram · 2 diagrams in section
