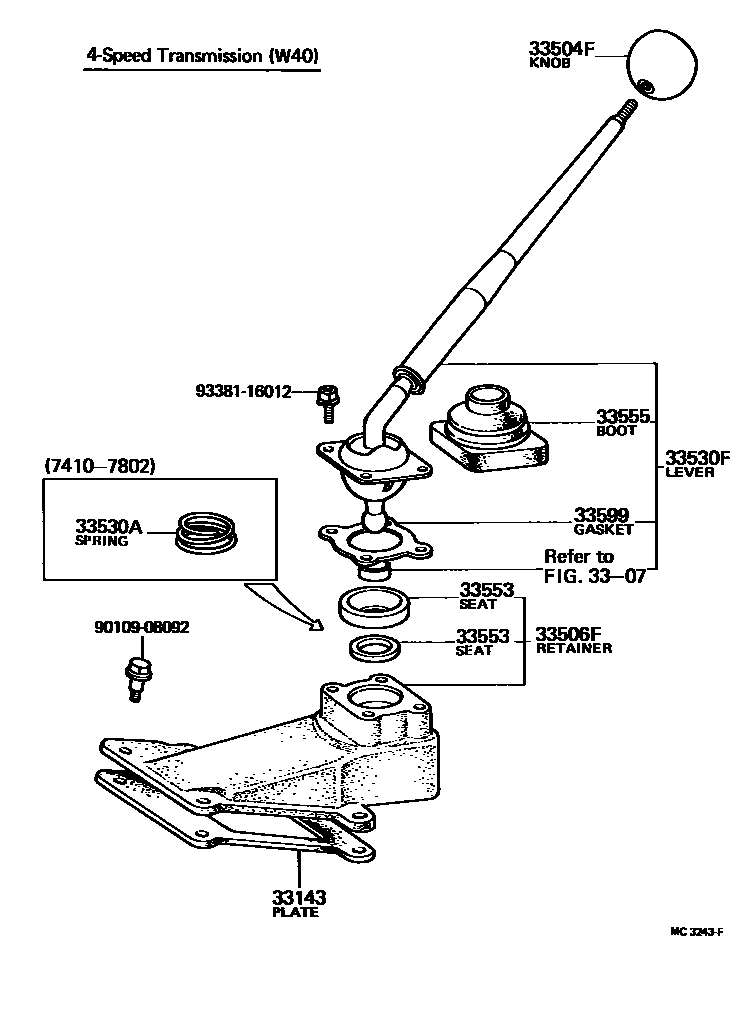

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20030iMS8#,95,RS80..4F197410-197908

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22100iMS8#,95,RS80..4F197611-197908

BLACK

sub33504-22101

main33504-30120iMS83,85,95..3FC197410-197611

main33504-31010iMS8#,95,RS80..4F197410-197510

main33504-31011iMS8#,95,RS80..4F197510-197611

sub33504-14040

main33542-30120iMS83,85,95..3FC197611-197701

main33542-30120-01iMS83,85,95..3FC197701-197908

BLACK,BLACK

sub33542-30120

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-21010iMS8#,95,RS80..4F197410-197908

sub33570-21011

sub33143-20031

sub90109-08054

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90502-18057iMS8#,95,RS80..4F197410-197802

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-30090iMS83,85,95..RHD..3FC197611-197908

main33503-30100iMS83,85,95..LHD..3FC197611-197908

main33530-30130iMS83,85,95..RHD..3FC197410-197611

main33530-30140iMS83,85,95..LHD..3FC197410-197611

main33530-30160iMS8#,95,RS80..RHD..4F197410-197510

main33530-30161iMS8#,95,RS80..RHD..4F197510-197908

sub33530-30162

main33530-30170iMS8#,95,RS80..LHD..4F197410-197510

main33530-30171iMS8#,95,RS80..LHD..4F197510-197908

sub33530-30172

33553SEAT, SHIFT LEVER SPRING

main33553-30020iMS83,85,95..3FC197410-197611

main33556-20010iMS8#,95,RS80..4F197802-197908

T=3.0

sub33556-35040

main33556-22010iMS8#,95,RS80..4F197410-197908

T=6.5

33555BOOT, SHIFT LEVER

main33555-30100iMS83,85,95..3FC197410-197908

main33555-31011iMS8#,95,RS80..4F197410-197908

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-31020iMS8#,95,RS80..4F197410-197908

9010908092

main90109-08092

9338116012

main93381-16012

11 parts on this diagram · 3 diagrams in section
