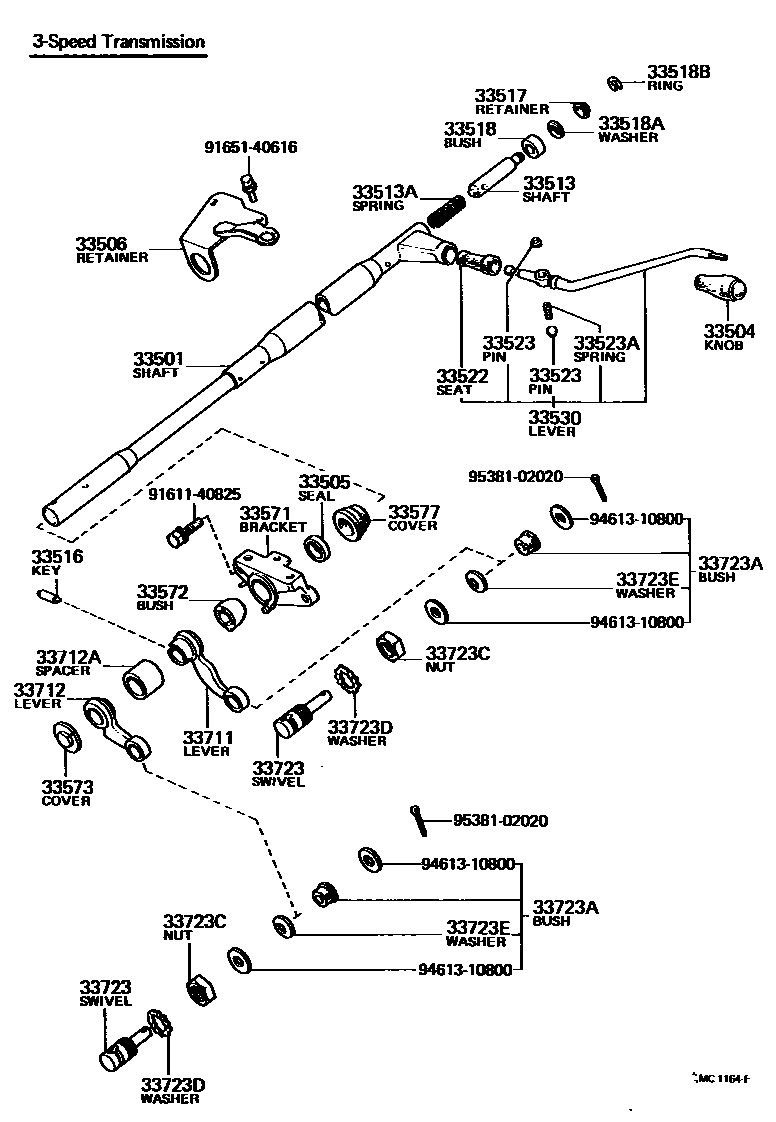

CONTROL SHAFT & CROSSSHAFT
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33516KEY, CONTROL LEVER SELECTING
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ASPRING, COMPRESSION
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
sub33541-39075
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33573COVER, CONTROL SHAFT DUST, LOWER
33577COVER, CONTROL SHAFT HOLE
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33712LEVER, CONTROL SHAFT
33712ASPACER (FOR CONTROL SHAFT LEVER)
33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)
33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)
33723EWASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
9161140825
main91611-40825
9165140616
main91651-40616
9461310800
main94613-10800
9538102020
main95381-02020
31 parts on this diagram · 9 diagrams in section
