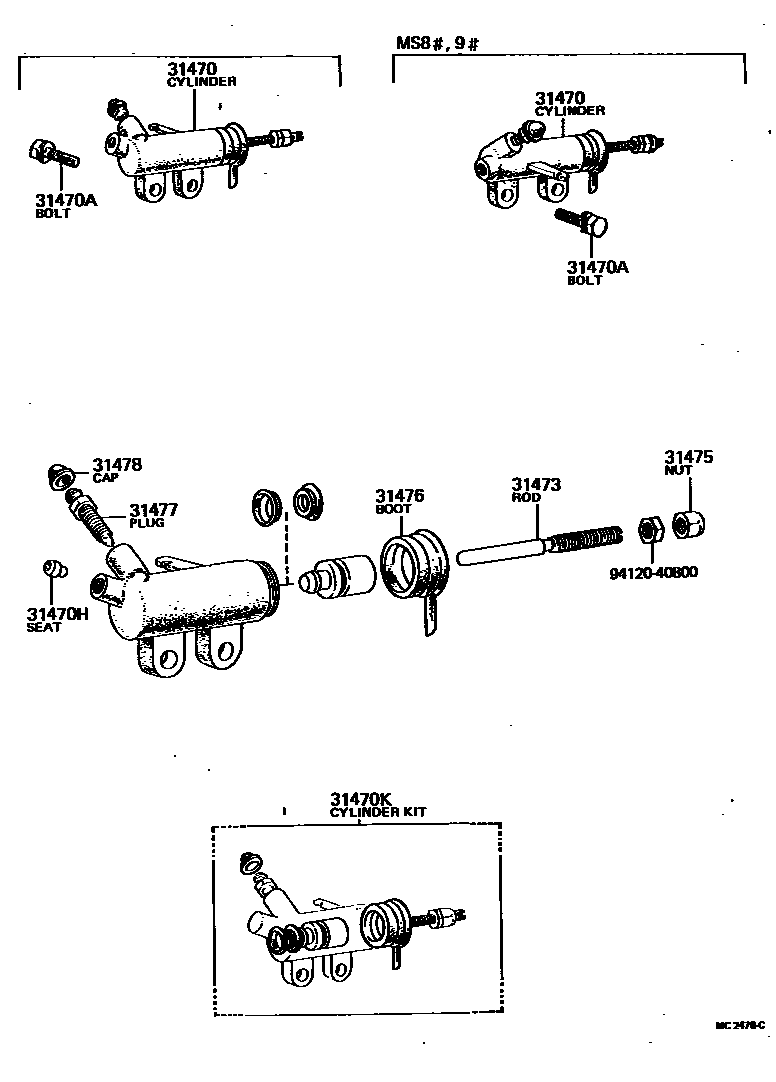

CLUTCH RELEASE CYLINDER

0001 1 0003 1 0004 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20091iRS80197501-197611

sub31470-26020

main31470-22060iMS8#,95..4F197802-197908

sub31470-22080

main31470-30076iRS80197410-197501

sub31470-20091

main31470-30120iMS8#,95..4F197410-197611

sub31470-26030

main31470-30150iRS80197611-197908

sub31470-30151

main31470-30160iMS8#,95..MTM197604-197908

sub31470-30240

sub31470-30250

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iMS8#,95,RS80..MTM197410-197908

*8-1.25PX25-25

sub91611-B0825

31470HSEAT, UNION(FOR CLUTCH RELEASE CYLINDER)

main90410-03015iMS8#,95..MTM197410-197908

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-30054iMS8#,95,RS80..MTM197410-197611

main04313-30100iMS8#,95,RS80..MTM197611-197908

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iMS8#,95..4F197802-197908

main31473-30021iRS80197410-197611

main31473-30040iRS80197611-197908

main31473-30050iMS8#..3H197604-197908

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30011iRS80197410-197611

sub31475-30020

main31475-30020iMS8#,95..4F197508-197611

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iMS8#,95..4F197410-197611

main31476-30040iMS8#..3H197604-197908

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iMS8#,95,RS80..MTM197410-197908

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMS8#,95,RS80..MTM197410-197908

9412040800

main94120-40800

10 parts on this diagram · 3 diagrams in section
