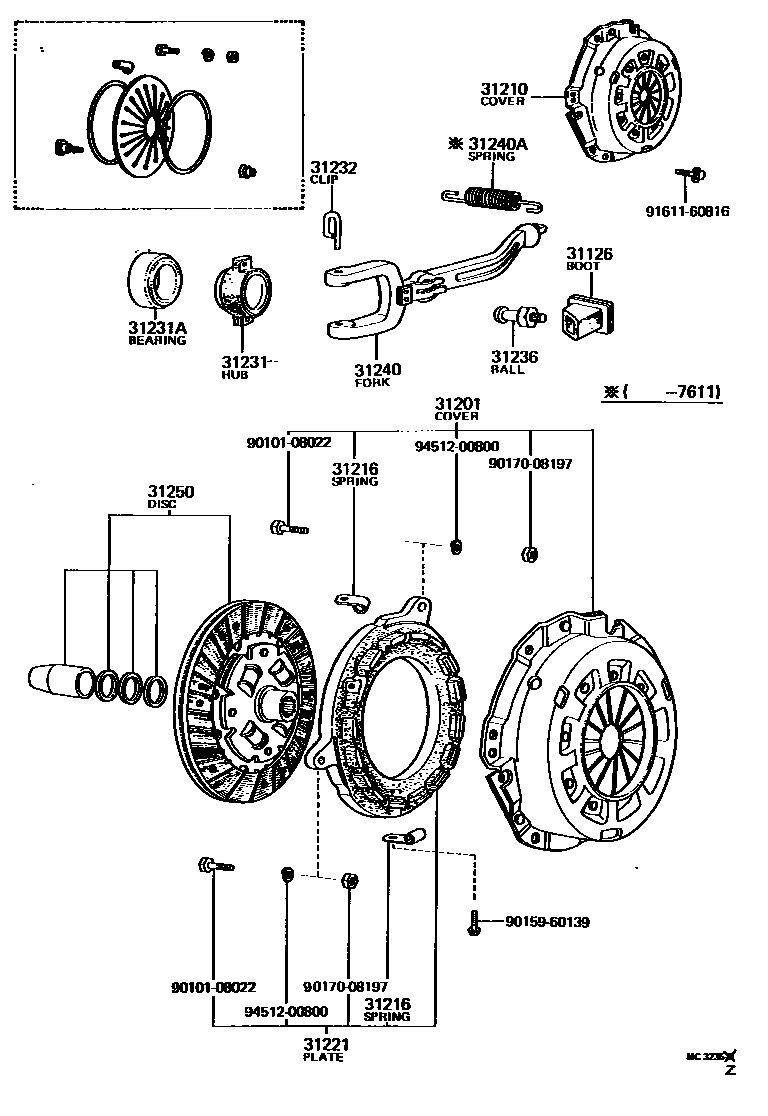

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iMS8#,95,RS80..MTM197410-197908

main31126-22040iMS8#,95..4F197802-197908

31201COVER SUB-ASSY, CLUTCH

main31201-39045iMS8#,95,RS80..MTM197410-197908

sub31201-39046

31210COVER ASSY, CLUTCH

main31210-30110iMS8#,95,RS80..MTM197410-197908

sub31210-30111

31216SPRING, CLUTCH RETRACTING

main31216-30010iMS8#,95,RS80..MTM197410-197908

31221PLATE, CLUTCH PRESSURE

main31221-39026iMS8#,95,RS80..MTM197410-197908

31231HUB, CLUTCH RELEASE BEARING

main31231-20040iMS8#,95..MTM197410-197611

sub31231-20041

main31231-20050iRS80197410-197611

sub31231-20051

main31231-22020iMS8#,95..4F197802-197908

sub31231-22021

main31231-30060iRS80197611-197810

sub31231-30061

main31231-30061iRS80197810-197908

main31231-30070iMS8#..3H197604-197908

sub31231-30071

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iMS8#,95,RS80..MTM197604-197908

sub90363-40008

main90363-40003iMS8#,95,RS80..MTM197508-197611

sub90363-40010

main90363-40078iMS8#,95,RS80..MTM197410-197508

sub90363-40003

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iMS8#,95..4F197802-197908

main31232-30010iMS8#..3H197410-197908

main31232-30020iRS80197410-197908

31236BALL, RELEASE FORK

main31236-20020iMS8#,95..MTM197604-197908

sub31236-30060

main31236-30030iRS80197410-197908

31240FORK ASSY, CLUTCH RELEASE

main31204-22030iMS8#,95..4F197802-197908

main31204-30031iMS8#,95..MTM197410-197908

main31204-30041iRS80197410-197908

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16402iMS8#,95,RS80..MTM197410-197611

sub90506-16004

31250DISC ASSY, CLUTCH

main31250-30069iMS8#,95,RS80..MTM197410-197902

sub31250-30190

main31250-30140iMS8#,95..MTM197604-197908

sub31250-22044

main31250-30190iRS80197902-197904

sub31250-30140

9010108022

main90101-08022

9015960139

main90159-60139

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
