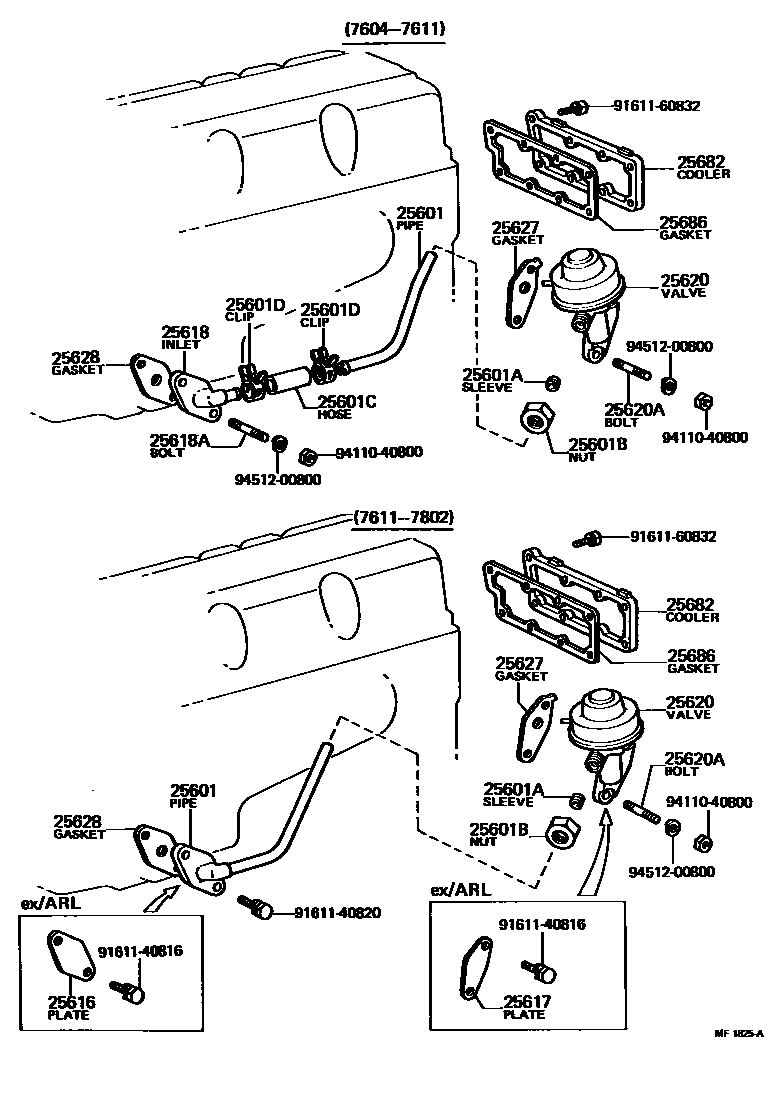

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-41010i4M..MS83,85..ARL197611-197802

main25601-41020i4M..MS85..ARL197802-197903

main25601-41030i4M..MS85..ARL197903-197908

main25611-45010i4M..MS83,85..ARL197604-197611

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14001i4M..MS83,85..ARL197701-197908

sub90410-14003

main90410-14040i4M..MS83,85..ARL197604-197701

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22076i4M..MS83,85..ARL197604-197908

25601CHOSE(FOR EGR PIPE, NO.1)

main90445-22001i4M..MS83,85..ARL197604-197611

25601DCLIP OR CLAMP(FOR EGR PIPE, NO.1)

main90467-20134i4M..MS83,85..ARL197604-197611

25616PLATE, HOLE COVER(FOR EGR PIPE)

main11494-45010i4M..MS8#,95..EUR,GEN197611-197908

25617PLATE, EGR HOLE COVER

main25617-45010i4M..MS8#,95..EUR,GEN197611-197908

25618INLET, EGR

main25618-45020i4M..MS83,85..ARL197604-197611

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i4M..MS83,85..ARL197604-197908

25620VALVE ASSY, EGR

main25620-41080i4M..MS85..ARL197802-197908

main25620-45070i4M..MS83,85..4F..ARL197604-197802

main25620-45080i4M..MS83,85..3FC..ARL197604-197802

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i4M..MS83,85..ARL197604-197908

25627GASKET, EGR VALVE

main25627-45011i4M..MS83,85..ARL197604-197908

sub25627-43130

25628GASKET, EGR INLET

main25628-45010i4M..MS83,85..ARL197604-197810

sub25628-45011

main25628-45011i4M..MS8#,95197810-197908

sub25628-43020

25682COOLER, EGR, NO.2

main25682-45020i4M..MS83,85..ARL197604-197908

25686GASKET, EGR COOLER, NO.2

main25686-45010i4M..MS83,85..ARL197604-197908

sub25686-43010

9161140816

main91611-40816

9161140820

main91611-40820

9161160832

main91611-60832

9411040800

main94110-40800

9451200800

main94512-00800

20 parts on this diagram · 2 diagrams in section
