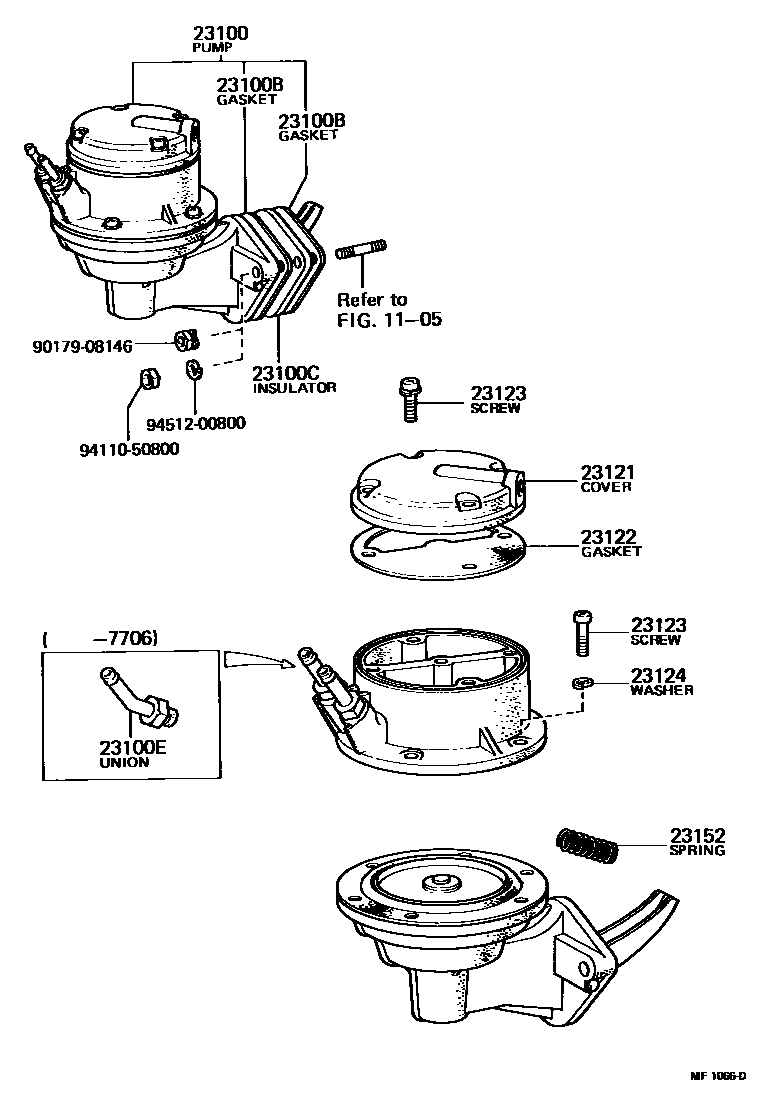

FUEL PUMP & PIPE

0001 1 0002 1

1105

23100PUMP ASSY, FUEL

main23100-49135i5R..RS80197410-197411

sub23100-49136

main23100-49136i5R..RS80197411-197908

sub23100-49137

main23100-49165i4M..MS8#,95197410-197604

sub23100-49166

main23100-49166i4M..MS8#,95197604-197706

sub23100-49167

main23100-49167i4M..MS8#,95197706-197908

sub23100-49168

23100BGASKET, FUEL PUMP

main90923-05004i4M..MS8#,95197410-197908

sub90923-05020

main90923-05005i5R..RS80197410-197908

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i5R..RS80197410-197908

sub90923-06009

main90923-06002i4M..MS8#,95197410-197908

sub90923-06011

23100EUNION, NIPPLE(FOR FUEL INLET)

main23116-41020i5R..RS80197410-197908

main23119-42020i4M..MS8#,95197410-197706

23121COVER, FUEL PUMP

main23121-41030i5R..RS80197410-197908

main23121-45030i4M..MS8#,95197410-197908

23122GASKET, FUEL PUMP COVER

main23122-41030i5R..RS80197410-197908

main23122-42020i4M..MS8#,95197410-197908

23123SCREW, COVER SET, NO.1

main21821-31140i4M..MS8#,95197410-197908

FOR COVER SET

main93219-15016i4M..MS8#,95197410-197908

FOR BODY SET

main93319-15014i5R..RS80197410-197908

L=14

main93319-15016i5R..RS80197410-197908

L=16

23124WASHER, COVER SET, NO.2

main94511-00500i4M..MS8#,95197410-197908

23152SPRING, ROCKER ARM

main23152-42012i4M..MS8#,95197410-197604

main23152-44020i5R..RS80197410-197908

main23152-45030i4M..MS8#,95197604-197908

9017908146

main90179-08146

9411050800

main94110-50800

9451200800

main94512-00800
