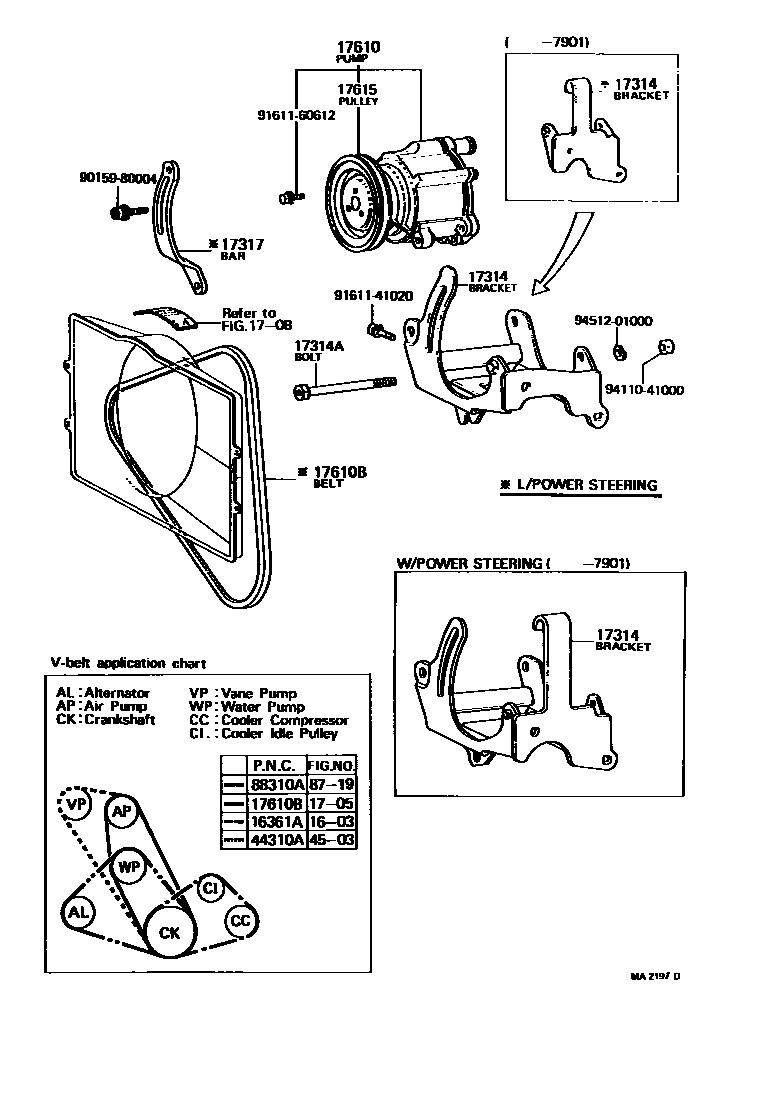

AIR PUMP

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02074i4M..MS8#,95197707-197908

DOUBLE V BELTS

main99322-00930i5R..RS80..LHD..(4F,4H)197809-197908

MIDDLE EAST SPEC. L=930

main99322-00940i5R..RS80197809-197908

L=940

main99522-10904i4M..MS8#,95..BTP,DLX,SAL,STD197410-197611

L=904

sub99322-00900

main99522-10904i4M..MS8#,95197611-197707

L=904,50A ALTERNATOR

sub99322-00900

main99522-10925i4M..MS85..ROY197511-197611

L=925,55A ALTERNATOR

sub99322-00920

main99522-10934i5R..RS80197410-197512

L=934

sub99322-00930

main99522-10942i5R..RS80197512-197809

L=942

sub99322-00940

1705

1708

17314BRACKET, AIR PUMP

main17314-41010i4M..MS83,85..ARL197609-197901

W/POWER STEERING

main17314-41030i4M..MS85..ARL197901-197908

W/POWER STEERING

sub17314-41031

main17314-45012i4M..MS83,85..(BTP,DLX)..ARL197604-197609

L/POWER STEERING

sub17314-45013

main17314-45013i4M..MS83,85..(BTP,DLX)..ARL197609-197802

L/POWER STEERING

main17314-45020i4M..MS83,85..ARL197604-197609

W/POWER STEERING

sub17314-41010

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90110-10001i4M..MS83,85..ARL197604-197908

10-1.25PX114-25

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-45011i4M..MS83,85..(BTP,DLX)..ARL197604-197802

L/POWER STEERING

17610PUMP ASSY, AIR

main17610-45030i4M..MS83,85..ARL197604-197707

main17610-45031i4M..MS83,85..ARL197707-197908

17610BBELT, V(FOR AIR PUMP)

main99522-11159i4M..MS83,85..(BTP,DLX)..ARL197604-197802

L=1159,L/POWER STEERING

sub99322-01155

17615PULLEY(FOR AIR PUMP)

main17615-41020i4M..MS83,85..ARL197707-197908

main17615-45010i4M..MS83,85..ARL197604-197707

44310ABELT, V(FOR VANE PUMP)

main90916-02078iMS8#,95..EUR,GEN197709-197908

sub90916-02465

main99332-01395iMS83,85..ARL197707-197908

L=1395

main99522-11232iMS8#,95..EUR,GEN197707-197709

sub90916-02078

main99522-11275iMS8#,95197410-197707

sub99322-01270

main99522-11390iMS83,85..ARL197604-197707

sub99322-01385

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00960iMS8#,95..RHD..(BTP,DLX,SAL,STD)197805-197908

L=960

main99322-00960iMS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD197707-197805

L=960,W/HEATER

main99322-00980iMS8#,95..LHD197805-197908

W/HEATER

main99522-10958iMS85..RHD..ROY197611-197908

sub99322-00955

main99522-10964iMS85..LHD..ROY;MS8#,95..BTP,DLX,SAL,STD197611-197707

W/HEATER

sub90099-82006

main99522-10976iMS8#,95..BTP,DLX,SAL,STD197410-197611

sub99322-00975

main99522-10980iMS8#,95197707-197908

W/BOOST VENTILATOR

sub99322-00980

main99522-11002iMS8#,95197611-197707

W/BOOST VENTILATOR

sub99322-01000

main99522-11002iMS85..ROY197609-197611

sub99322-01000

9015980004

main90159-80004

9161141020

main91611-41020

9161160612

main91611-60612

9411041000

main94110-41000

9451201000

main94512-01000

19 parts on this diagram · 1 diagram in section
