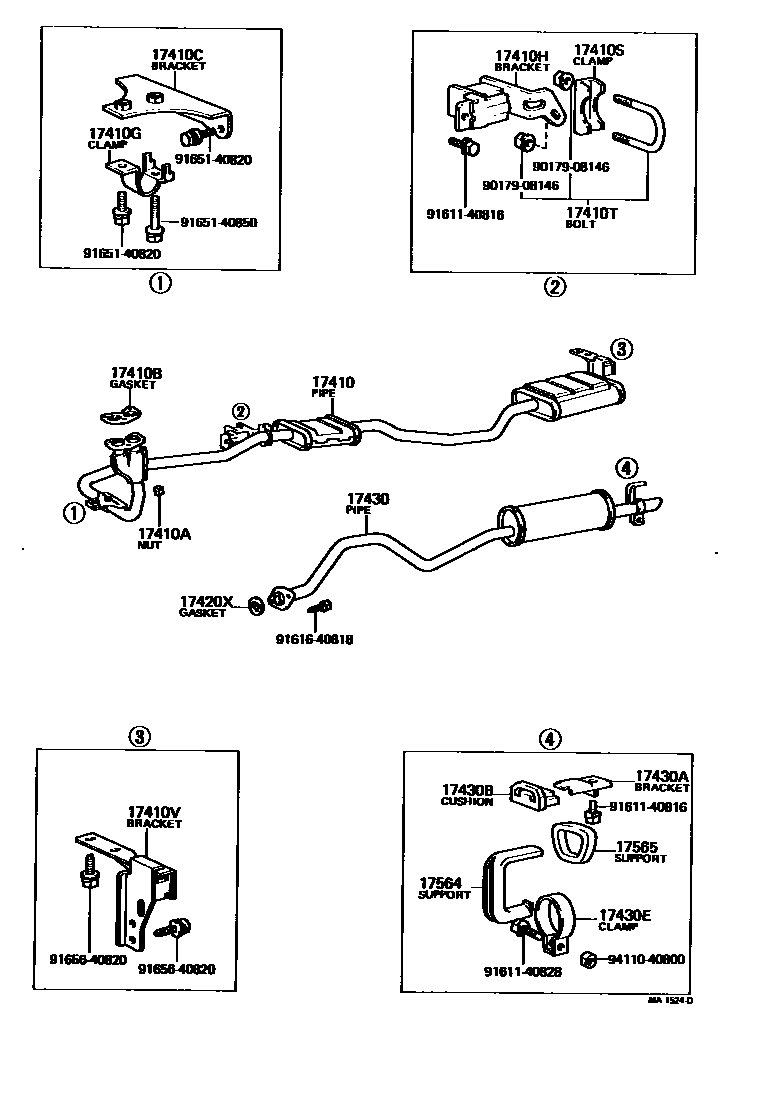

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-41120i4M..MS8#,95..GEN197410-197611

main17410-41200i4M..MS88197611-197908

main17410-44120i5R..RS80197410-197611

main17410-44130i5R..RS80197611-197908

main17410-45070i4M..MS83,85..ARL197604-197908

main17410-45100i4M..MS83,85,95..EUR,GEN197611-197908

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-10114i5R..RS80197410-197908

main90179-10028i4M..MS8#,95197811-197908

main90179-10118i4M..MS8#,95197604-197811

17410BGASKET, EXHAUST PIPE

main17451-41020i5R..RS80197410-197908

sub17451-28010

main90917-06013i4M..MS8#,95197604-197908

sub90917-06050

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-41050i4M..MS8#,95..GEN197410-197611

main17571-45020i4M..MS8#,95197604-197908

main17572-44011i5R..RS80197410-197808

main17572-44012i5R..RS80197808-197908

17410GCLAMP NO.2, EXHAUST PIPE FRONT (FOR FRONT)

main17571-44013i5R..RS80197410-197908

17410HBRACKET, EXHAUST PIPE FRONT (FOR CENTER)

main17561-44040i5R..RS80197410-197908

main17572-41010i4M..MS8#,95197410-197611

main17572-45010i4M..MS8#,95..EUR,GEN197611-197908

17410SCLAMP NO.1, EXHAUST PIPE FRONT (FOR CENTER)

main90917-04007i5R..RS80197410-197908

17410TBOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)

main17565-41010i4M..MS8#,95..EUR,GEN197611-197908

main90118-10081i5R..RS80197410-197908

sub90117-08016

main90301-34172i4M..MS8#,95197410-197611

sub90301-34207

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17505-45040i4M,5R..MS83,85,RS80..EUR,GEN197611-197908

LOWER

main17562-41060i4M,5R..MS83,85,95,RS80197410-197611

main17562-41070i4M..MS88197501-197611

FRAME SIDE

main17563-41100i4M..MS88197501-197611

MUFFLER SIDE

main17574-45040i4M,5R..MS83,85,RS80..EUR,GEN197611-197908

UPPER

17420PIPE ASSY, EXHAUST, CENTER

main17420-45080i4M..MS83,85..ARL197604-197611

main17420-45120i4M..MS83,85..ARL197611-197908

17420XGASKET, EXHAUST PIPE, CENTER

main17451-45010i4M..MS83,85..ARL197604-197908

FR

sub17451-45020

main90917-06004i4M..MS8#,95..EUR,GEN197604-197908

REAR

sub90917-06039

main90917-06004i4M..MS8#,95197410-197908

sub90917-06039

17430PIPE ASSY, EXHAUST, TAIL

main17430-41140i4M..MS85,95197410-197611

main17430-41150i4M..MS88197501-197611

main17430-41160i4M..MS83..GEN197501-197611

main17430-44070i5R..RS80197611-197802

sub17430-54010

main17430-44080i5R..RS80197507-197611

sub17430-41140

main17430-45080i4M..MS85..ARL197604-197611

sub17430-45190

main17430-45090i4M..MS83..ARL197604-197611

sub17430-45210

main17430-45160i4M..MS85,95..EUR,GEN197611-197802

sub17430-45190

main17430-45170i4M..MS83..EUR,GEN197611-197908

main17430-45180i4M..MS88197611-197908

sub17430-41230

main17430-45190i4M..MS85,95197611-197908

main17430-45210i4M..MS83..ARL197611-197802

main17430-54010i5R..RS80197802-197908

sub17430-54011

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-41010i4M..MS88197501-197908

main17506-41020i4M..MS83197501-197908

main17574-41010i4M,5R..MS85,95,RS80197410-197908

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i4M..MS88197501-197611

sub17591-36011

sub90159-50207

main17591-36020i4M..MS83197501-197611

main17591-45010i4M,5R..MS85,95,RS80197410-197908

17430ECLAMP NO.2, EXHAUST TAILPIPE(FOR FRONT)

main90461-23204i4M,5R..MS85,95,RS80197410-197611

sub90461-23974

17564SUPPORT,EXHAUST PIPE, NO.4

main17564-41010i4M,5R..MS85,95,RS80197410-197611

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-41010i4M,5R..MS85,95,RS80197410-197908

9017908146

main90179-08146

9161140816

main91611-40816

9161140828

main91611-40828

9161640818

main91616-40818

9165140820

main91651-40820

9165140850

main91651-40850

9165640820

main91656-40820

9411040800

main94110-40800

25 parts on this diagram · 12 diagrams in section
