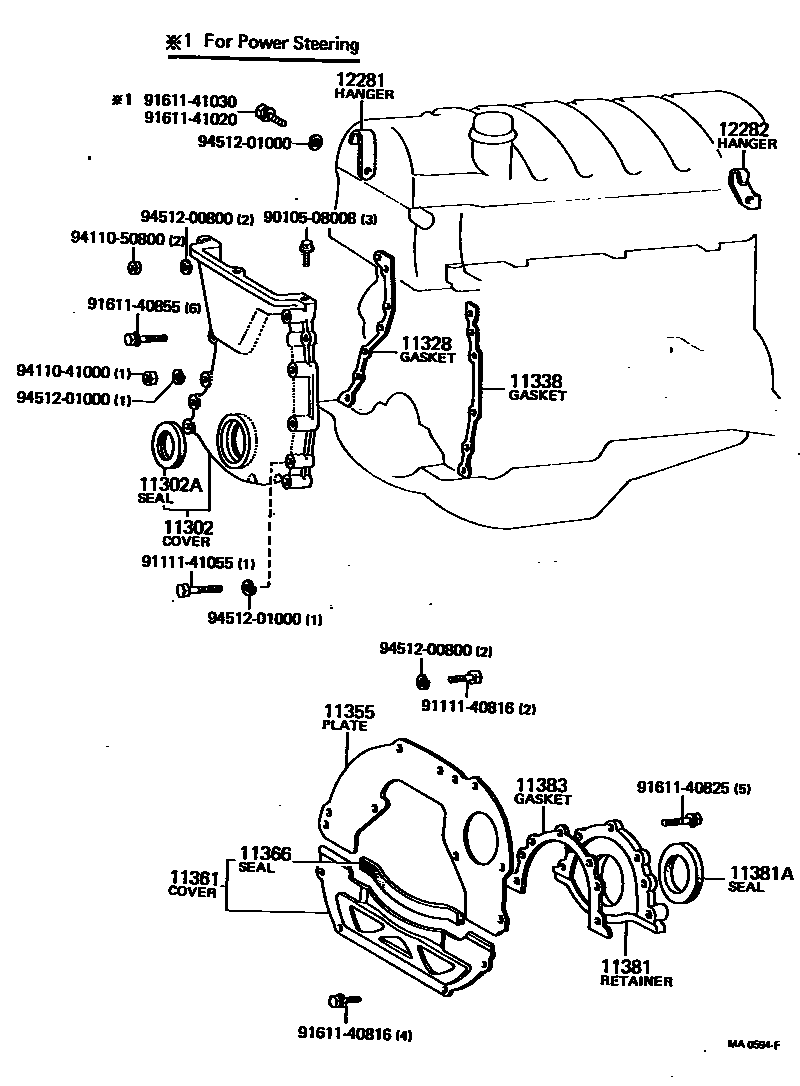

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0004 1 0005 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-41012i4M..MS8#,95197410-197605

sub11302-41013

main11302-41013i4M..MS8#,95..GEN197605-197611

sub11321-41013

sub90311-45069

main11302-44010i5R..RS80197410-197511

sub11321-44010

sub11391-44020

sub90311-38138

main11321-41020i4M..MS8#,95197707-197908

sub11321-41030

main11321-44030i5R..RS80197511-197908

main11321-45010i4M..MS83,85..ARL197604-197605

sub11321-45011

main11321-45011i4M..MS8#,95197605-197707

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38138i5R..RS80197410-197511

HTC 38.5 58 11

main90311-45002i5R..RS80197905-197908

TC 45 68 12

main90311-45069i4M..MS8#,95197410-197908

TC3 45 68 12

sub90311-45002

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-41010i4M..MS8#,95197410-197908

sub11328-43020

main11328-44010i5R..RS80197410-197908

11338GASKET, TIMING CHAIN COVER, NO.2

main11338-41010i4M..MS8#,95197410-197908

sub11329-43030

11355PLATE, REAR END

main11355-41010i4M..MS8#,95197410-197908

main11355-44010i5R..RS80197410-197808

sub11355-44011

main11355-44011i5R..RS80197808-197908

11361COVER, FLYWHEEL HOUSING UNDER

main11361-45010i4M..MS8#,95197410-197908

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-41010i4M..MS8#,95197410-197611

sub31131-30010

main31131-30010i4M..MS8#,95197611-197908

11381RETAINER, ENGINE REAR OIL SEAL

main11381-41010i4M..MS8#,95197410-197605

sub11381-41011

main11381-41011i4M..MS8#,95197605-197908

sub11381-43010

main11381-44011i5R..RS80197410-197908

11381ASEAL, ENGINE REAR OIL

main90311-80002i5R..RS80197807-197908

HTCY 80 100 12 13.5

main90311-80139i4M..MS8#,95197410-197908

HTC 80 100 12

sub90311-80001

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-41010i4M..MS8#,95197410-197908

main11383-44010i5R..RS80197410-197908

12281HANGER, ENGINE, NO.1

main12281-41080i4M..MS8#,95..EUR,GEN197611-197901

main12281-42010i4M..MS8#,95197410-197611

sub12281-31040

main12281-44010i5R..RS80197410-197807

sub12281-44011

main12281-44011i5R..RS80197807-197908

main12281-45020i4M..MS8#,95197901-197908

sub12281-41090

12282HANGER, ENGINE, NO.2

main12281-41020i4M..MS8#,95197410-197611

main12281-45011i4M..MS83,85..ARL197604-197611

sub12281-45012

main12281-45012i4M..MS8#,95197611-197901

main12281-45030i4M..MS8#,95197901-197908

9010508008

main90105-08008

9111140816

main91111-40816

9111141055

main91111-41055

9161140816

main91611-40816

9161140825

main91611-40825

9161140855

main91611-40855

9161141020

main91611-41020

9161141030

main91611-41030

9411041000

main94110-41000

9411050800

main94110-50800

9451200800

main94512-00800

9451201000

main94512-01000

24 parts on this diagram · 4 diagrams in section
