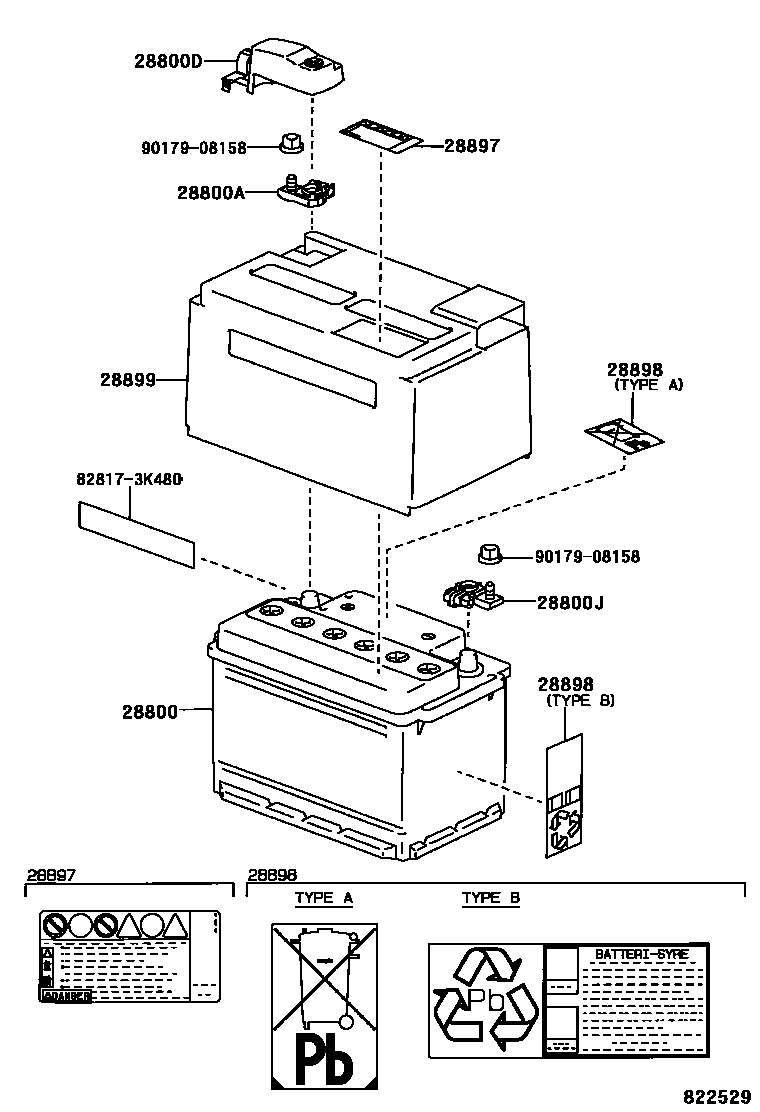

BATTERY & BATTERY CABLE

28800BATTERY

main28800-50110i3UZFE..UZZ40200105-201007

LN3

sub28800-38160

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i3UZFE..UZZ40200105-200508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30410i3UZFE..UZZ40200105-200508

28800JTERMINAL, BATTERY NEGATIVE

main90982-06056i3UZFE..UZZ40200105-200508

28897PLATE, BATTERY CAUTION

main28897-28010i3UZFE..UZZ40..LHD..EUR200508

CHINA SPEC

main28897-50020i3UZFE..UZZ40200105-200508

28898PLATE, BATTERY

main28898-16020i3UZFE..UZZ40..EUR200105-200508

TYPE A:REFER TO ILLUSTRATION

main28898-46010i3UZFE..UZZ40..LHD..EUR200105-200608

TYPE B:REFER TO ILLUSTRATION

28899INSULATOR, BATTERY

main28899-50040i3UZFE..UZZ40200105-200508

828173K480PROTECTOR, WIRING HARNESS, NO.1

main82817-3K480

9017908158

main90179-08158

9 parts on this diagram · 1 diagram in section
