FRONT SEAT & SEAT TRACK

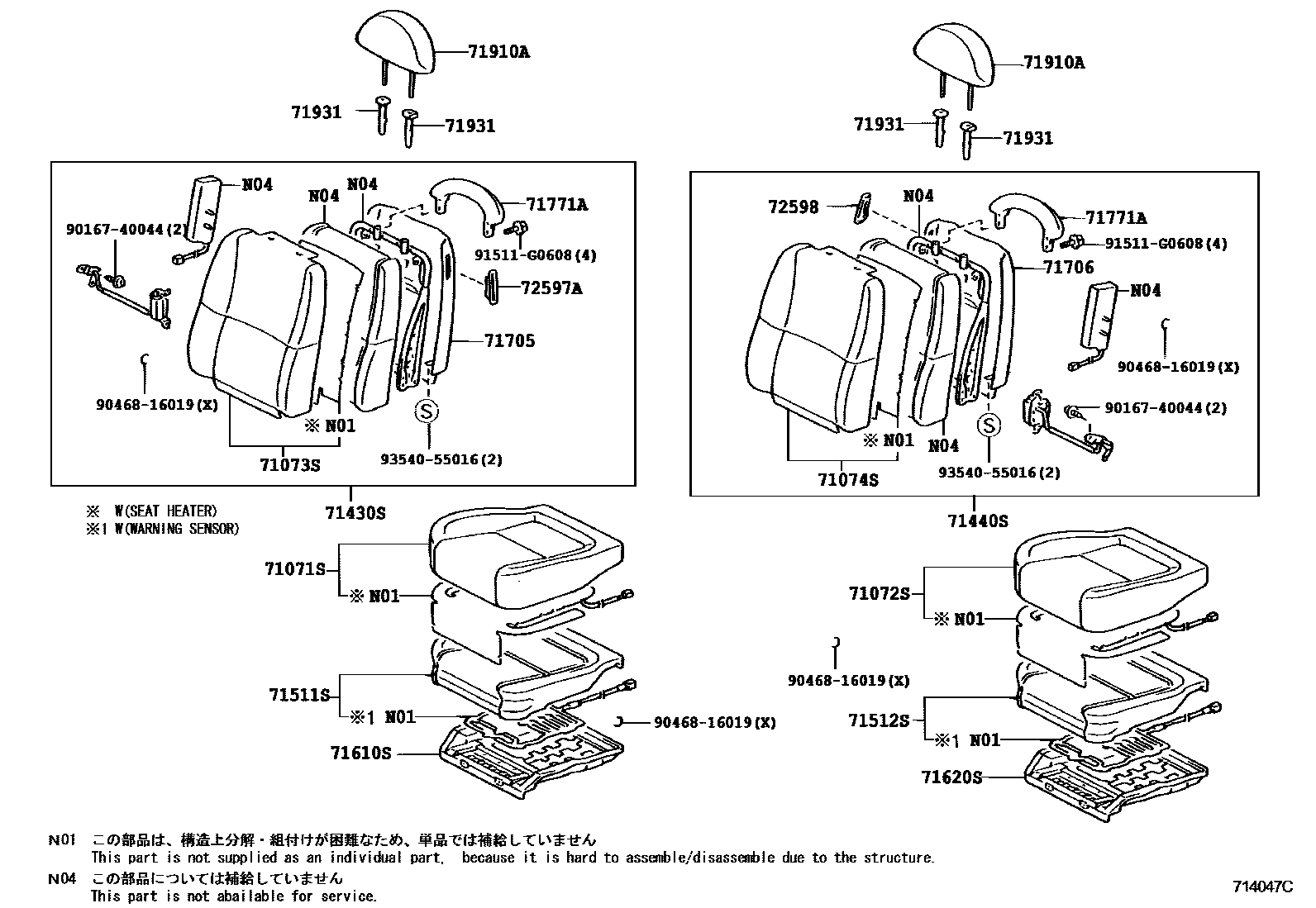

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-24380-C0i200106
BLACK,TRIM20
main71071-24390-C0i200106
W(SEAT HEATER),BLACK,TRIM20
sub71071-24520
main71071-24400-A0i200105-200508
ECRU,TRIM0#
main71071-24400-C0i200105-200106
BLACK,TRIM20
main71071-24400-E0i200105-200508
SADDLE TAN,TRIM21
main71071-24400-E0i200106-200205
SADDLE TAN,TRIM2#
main71071-24410-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71071-24520
main71071-24410-C0i200105-200106
W(SEAT HEATER),BLACK,TRIM20
sub71071-24520
main71071-24410-E0i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71071-24520
main71071-24410-E0i200106-200205
W(SEAT HEATER),SADDLE TAN,TRIM2#
sub71071-24520
main71071-24450-A0i200508-200908
CHINA SPEC,ECRU,TRIM0#
sub71071-24530
main71071-24450-A0i200508-200908
ECRU,TRIM0#
sub71071-24530
main71071-24450-C0i200508-200908
BLACK,TRIM2#
sub71071-24530
main71071-24450-C0i200508-200908
CHINA SPEC,BLACK,TRIM2#
sub71071-24530
main71071-24450-E0i200508-200908
CHINA SPEC,CAMEL,TRIM4#
sub71071-24530
main71071-24450-E0i200508-200908
CAMEL,TRIM4#
sub71071-24530
main71071-24460-A0i200701-200908
ECRU,TRIM0#
sub71071-24520
main71071-24460-A0i200508-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71071-24520
main71071-24460-C0i200508-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71071-24520
main71071-24460-C0i200701-200908
BLACK,TRIM2#
sub71071-24520
main71071-24460-E0i200508-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71071-24520
main71071-24460-E0i200701-200908
CAMEL,TRIM4#
sub71071-24520
main71071-24520-A2i200908-201007
W(SEAT HEATER),ECRU/ECRU,TRIM0#
main71071-24520-C1i200908-201007
W(SEAT HEATER),BLACK,TRIM2#
main71071-24520-E2i200908-201007
W(SEAT HEATER),CAMEL,TRIM4#
main71071-24530-A1i200908-201007
ECRU,TRIM0#
main71071-24530-C1i200908-201007
BLACK,TRIM2#
main71071-24530-E2i200908-201007
CAMEL,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-24380-C0i200106
BLACK,TRIM20
main71072-24390-C0i200106
W(SEAT HEATER),BLACK,TRIM20
sub71072-24520
main71072-24400-A0i200105-200508
ECRU,TRIM0#
main71072-24400-C0i200105-200106
BLACK,TRIM20
main71072-24400-E0i200105-200508
SADDLE TAN,TRIM21
main71072-24400-E0i200106-200205
SADDLE TAN,TRIM2#
main71072-24410-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71072-24520
main71072-24410-C0i200105-200106
W(SEAT HEATER),BLACK,TRIM20
sub71072-24520
main71072-24410-E0i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71072-24520
main71072-24410-E0i200106-200205
W(SEAT HEATER),SADDLE TAN,TRIM2#
sub71072-24520
main71072-24450-A0i200508-200908
CHINA SPEC,ECRU,TRIM0#
sub71072-24530
main71072-24450-A0i200508-200908
ECRU,TRIM0#
sub71072-24530
main71072-24450-C0i200508-200908
BLACK,TRIM2#
sub71072-24530
main71072-24450-C0i200508-200908
CHINA SPEC,BLACK,TRIM2#
sub71072-24530
main71072-24450-E0i200508-200908
CAMEL,TRIM4#
sub71072-24530
main71072-24450-E0i200508-200908
CHINA SPEC,CAMEL,TRIM4#
sub71072-24530
main71072-24460-A0i200508-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71072-24520
main71072-24460-A0i200508-200908
CHINA SPEC & W(SEAT HEATER),ECRU,TRIM0#
sub71072-24520
main71072-24460-C0i200508-200908
CHINA SPEC & W(SEAT HEATER),BLACK,TRIM2#
sub71072-24520
main71072-24460-C0i200508-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71072-24520
main71072-24460-E0i200508-200908
CHINA SPEC & W(SEAT HEATER),CAMEL,TRIM4#
sub71072-24520
main71072-24460-E0i200508-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71072-24520
main71072-24520-A2i200908
W(SEAT HEATER),ECRU/ECRU,TRIM0#
main71072-24520-C1i200908
W(SEAT HEATER),BLACK,TRIM2#
main71072-24520-E2i200908
W(SEAT HEATER),CAMEL,TRIM4#
main71072-24530-A1i200908
ECRU,TRIM0#
main71072-24530-C1i200908
BLACK,TRIM2#
main71072-24530-E2i200908
CAMEL,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-24340-C0i200106
BLACK,TRIM20
main71073-24350-C0i200106
W(SEAT HEATER),BLACK,TRIM20
sub71073-24590
main71073-24360-A0i200105-200508
ECRU,TRIM0#
main71073-24360-C0i200105-200106
BLACK,TRIM20
main71073-24360-E0i200105-200508
SADDLE TAN,TRIM21
main71073-24360-E0i200106-200205
SADDLE TAN,TRIM2#
main71073-24370-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71073-24590
main71073-24370-C0i200105-200106
W(SEAT HEATER),BLACK,TRIM20
sub71073-24590
main71073-24370-E0i200106-200205
W(SEAT HEATER),SADDLE TAN,TRIM2#
sub71073-24590
main71073-24370-E0i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71073-24590
main71073-24380-A0i200105-200508
ECRU,TRIM0#
sub71073-24600
main71073-24380-C0i200105-200508
BLACK,TRIM20
sub71073-24600
main71073-24380-E0i200105-200508
SADDLE TAN,TRIM21
sub71073-24600
main71073-24390-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71073-24610
main71073-24390-C0i200105-200508
W(SEAT HEATER),BLACK,TRIM20
sub71073-24610
main71073-24390-E0i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71073-24610
main71073-24470-A0i200508-200908
CHINA SPEC,ECRU,TRIM0#
sub71073-24580
main71073-24470-A0i200508-200908
ECRU,TRIM0#
sub71073-24580
main71073-24470-C0i200508-200908
CHINA SPEC,BLACK,TRIM2#
sub71073-24580
main71073-24470-C0i200508-200908
BLACK,TRIM2#
sub71073-24580
main71073-24470-E0i200508-200908
CAMEL,TRIM4#
sub71073-24580
main71073-24470-E0i200508-200908
CHINA SPEC,CAMEL,TRIM4#
sub71073-24580
main71073-24480-A0i200508-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71073-24590
main71073-24480-A0i200508-200908
CHINA SPEC & W(SEAT HEATER),ECRU,TRIM0#
sub71073-24590
main71073-24480-C0i200508-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71073-24590
main71073-24480-C0i200508-200908
CHINA SPEC & W(SEAT HEATER),BLACK,TRIM2#
sub71073-24590
main71073-24480-E0i200508-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71073-24590
main71073-24480-E0i200508-200908
CHINA SPEC & W(SEAT HEATER),CAMEL,TRIM4#
sub71073-24590
main71073-24490-A0i200508-200907
ECRU,TRIM0#
sub71073-24600
main71073-24490-C0i200508-200907
BLACK,TRIM2#
sub71073-24600
main71073-24490-E1i200508-200907
CAMEL,TRIM4#
sub71073-24600
main71073-24500-A0i200508-200907
W(SEAT HEATER),ECRU,TRIM0#
sub71073-24610
main71073-24500-C0i200508-200907
W(SEAT HEATER),BLACK,TRIM2#
sub71073-24610
main71073-24500-E1i200508-200907
W(SEAT HEATER),CAMEL,TRIM4#
sub71073-24610
main71073-24580-A0i200908
ECRU,TRIM0#
main71073-24580-C0i200908
BLACK,TRIM2#
main71073-24580-E0i200908
CAMEL,TRIM4#
main71073-24590-A0i200908
W(SEAT HEATER),ECRU,TRIM0#
main71073-24590-C0i200908
W(SEAT HEATER),BLACK,TRIM2#
main71073-24590-E0i200908
W(SEAT HEATER),CAMEL,TRIM4#
main71073-24600-A0i200908
ECRU,TRIM0#
main71073-24600-C0i200908
BLACK,TRIM2#
main71073-24600-E0i200908
CAMEL,TRIM4#
main71073-24610-A0i200908
W(SEAT HEATER),ECRU,TRIM0#
main71073-24610-C0i200908
W(SEAT HEATER),BLACK,TRIM2#
main71073-24610-E0i200908
W(SEAT HEATER),CAMEL,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-24210-A0i200508-200908
CHINA SPEC,ECRU,TRIM0#
sub71074-24500
main71074-24210-A0i200508-200908
ECRU,TRIM0#
sub71074-24500
main71074-24210-C0i200508-200908
CHINA SPEC,BLACK,TRIM2#
sub71074-24500
main71074-24210-C0i200508-200908
BLACK,TRIM2#
sub71074-24500
main71074-24210-E0i200508-200908
CHINA SPEC,CAMEL,TRIM4#
sub71074-24500
main71074-24210-E0i200508-200908
CAMEL,TRIM4#
sub71074-24500
main71074-24270-C0i200106
BLACK,TRIM20
main71074-24280-C0i200106
W(SEAT HEATER),BLACK,TRIM20
sub71074-24510
main71074-24290-A0i200105-200508
ECRU,TRIM0#
sub71074-24500
main71074-24290-C0i200105-200106
BLACK,TRIM20
sub71074-24500
main71074-24290-E0i200105-200508
SADDLE TAN,TRIM21
sub71074-24500
main71074-24290-E0i200106-200205
SADDLE TAN,TRIM2#
sub71074-24500
main71074-24300-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71074-24510
main71074-24300-C0i200105-200106
W(SEAT HEATER),BLACK,TRIM20
sub71074-24510
main71074-24300-E0i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71074-24510
main71074-24300-E0i200106-200205
W(SEAT HEATER),SADDLE TAN,TRIM2#
sub71074-24510
main71074-24310-A0i200105-200508
ECRU,TRIM0#
sub71074-24520
main71074-24310-C0i200105-200508
BLACK,TRIM20
sub71074-24520
main71074-24310-E0i200105-200508
SADDLE TAN,TRIM21
sub71074-24520
main71074-24320-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71074-24530
main71074-24320-C0i200105-200508
W(SEAT HEATER),BLACK,TRIM20
sub71074-24530
main71074-24320-E0i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71074-24530
main71074-24400-A0i200508-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71074-24510
main71074-24400-A0i200508-200908
CHINA SPEC & W(SEAT HEATER),ECRU,TRIM0#
sub71074-24510
main71074-24400-C0i200508-200908
CHINA SPEC & W(SEAT HEATER),BLACK,TRIM2#
sub71074-24510
main71074-24400-C0i200508-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71074-24510
main71074-24400-E0i200508-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71074-24510
main71074-24400-E0i200508-200908
CHINA SPEC & W(SEAT HEATER),CAMEL,TRIM4#
sub71074-24510
main71074-24410-A0i200508-200907
ECRU,TRIM0#
sub71074-24520
main71074-24410-C0i200508-200907
BLACK,TRIM2#
sub71074-24520
main71074-24410-E1i200508-200907
CAMEL,TRIM4#
sub71074-24520
main71074-24420-A0i200508-200907
W(SEAT HEATER),ECRU,TRIM0#
sub71074-24530
main71074-24420-C0i200508-200907
W(SEAT HEATER),BLACK,TRIM2#
sub71074-24530
main71074-24420-E1i200508-200907
W(SEAT HEATER),CAMEL,TRIM4#
sub71074-24530
main71074-24500-A0i200908
ECRU,TRIM0#
main71074-24500-C0i200908
BLACK,TRIM2#
main71074-24500-E0i200908
CAMEL,TRIM4#
main71074-24510-A0i200908
W(SEAT HEATER),ECRU,TRIM0#
main71074-24510-C0i200908
W(SEAT HEATER),BLACK,TRIM2#
main71074-24510-E0i200908
W(SEAT HEATER),CAMEL,TRIM4#
main71074-24520-A0i200908
ECRU,TRIM0#
main71074-24520-C0i200908
BLACK,TRIM2#
main71074-24520-E0i200908
CAMEL,TRIM4#
main71074-24530-A0i200908
W(SEAT HEATER),ECRU,TRIM0#
main71074-24530-C0i200908
W(SEAT HEATER),BLACK,TRIM2#
main71074-24530-E0i200908
W(SEAT HEATER),CAMEL,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-24400-A0i200105-200508
ECRU,TRIM0#
sub71430-24540
main71430-24400-C0i200105-200508
BLACK,TRIM20
sub71430-24540
main71430-24400-C1i200105-200508
SADDLE TAN,TRIM21
sub71430-24540
main71430-24400-C1i200106-200205
SADDLE TAN,TRIM2#
sub71430-24540
main71430-24410-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71430-24550
main71430-24410-C0i200105-200508
W(SEAT HEATER),BLACK,TRIM20
sub71430-24550
main71430-24410-C1i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71430-24550
main71430-24410-C1i200106-200205
W(SEAT HEATER),SADDLE TAN,TRIM2#
sub71430-24550
main71430-24420-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71430-24570
main71430-24420-C0i200105-200508
W(SEAT HEATER),BLACK,TRIM20
sub71430-24570
main71430-24420-C1i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71430-24570
main71430-24430-A0i200105-200508
ECRU,TRIM0#
sub71430-24560
main71430-24430-C0i200105-200508
BLACK,TRIM20
sub71430-24560
main71430-24430-C1i200105-200508
SADDLE TAN,TRIM21
sub71430-24560
main71430-24540-A0i200508-200808
ECRU,TRIM0#
sub71430-24540
sub71430-24620
main71430-24540-A1i200808-200908
ECRU,TRIM0#
sub71430-24540
sub71430-24620
main71430-24540-C0i200508-200808
BLACK,TRIM2#
sub71430-24540
sub71430-24620
main71430-24540-C1i200808-200908
BLACK,TRIM2#
sub71430-24540
sub71430-24620
main71430-24540-E0i200508-200808
CAMEL,TRIM4#
sub71430-24540
sub71430-24620
main71430-24540-E2i200808-200908
CAMEL,TRIM4#
sub71430-24540
sub71430-24620
main71430-24550-A0i200508-200808
W(SEAT HEATER),ECRU,TRIM0#
sub71430-24550
sub71430-24610
main71430-24550-A1i200808-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71430-24550
sub71430-24610
main71430-24550-C0i200508-200808
W(SEAT HEATER),BLACK,TRIM2#
sub71430-24550
sub71430-24610
main71430-24550-C2i200808-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71430-24550
sub71430-24610
main71430-24550-E0i200508-200808
W(SEAT HEATER),CAMEL,TRIM4#
sub71430-24550
sub71430-24610
main71430-24550-E2i200808-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71430-24550
sub71430-24610
main71430-24560-A0i200508-200808
ECRU,TRIM0#
sub71430-24560
sub71430-24630
main71430-24560-A1i200808-200908
ECRU,TRIM0#
sub71430-24560
sub71430-24630
main71430-24560-C0i200508-200808
BLACK,TRIM2#
sub71430-24560
sub71430-24630
main71430-24560-C1i200808-200908
BLACK,TRIM2#
sub71430-24560
sub71430-24630
main71430-24560-E0i200508-200808
CAMEL,TRIM4#
sub71430-24560
sub71430-24630
main71430-24560-E1i200808-200908
CAMEL,TRIM4#
sub71430-24560
sub71430-24630
main71430-24570-A0i200508-200808
W(SEAT HEATER),ECRU,TRIM0#
sub71430-24570
sub71430-24640
main71430-24570-A1i200808-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71430-24570
sub71430-24640
main71430-24570-C0i200508-200808
W(SEAT HEATER),BLACK,TRIM2#
sub71430-24570
sub71430-24640
main71430-24570-C1i200808-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71430-24570
sub71430-24640
main71430-24570-E0i200508-200808
W(SEAT HEATER),CAMEL,TRIM4#
sub71430-24570
sub71430-24640
main71430-24570-E1i200808-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71430-24570
sub71430-24640
main71430-24610-A1i200908
W(SEAT HEATER),ECRU,TRIM0#
main71430-24610-C2i200908
W(SEAT HEATER),BLACK,TRIM2#
main71430-24610-E1i200908
W(SEAT HEATER),CAMEL,TRIM4#
main71430-24620-A1i200908
ECRU,TRIM0#
main71430-24620-C1i200908
BLACK,TRIM2#
main71430-24620-E1i200908
CAMEL,TRIM4#
main71430-24630-A1i200908
ECRU,TRIM0#
main71430-24630-C1i200908
BLACK,TRIM2#
main71430-24630-E1i200908
CAMEL,TRIM4#
main71430-24640-A1i200908
W(SEAT HEATER),ECRU,TRIM0#
main71430-24640-C1i200908
W(SEAT HEATER),BLACK,TRIM2#
main71430-24640-E1i200908
W(SEAT HEATER),CAMEL,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-24390-A0i200105-200508
ECRU,TRIM0#
sub71440-24530
main71440-24390-C0i200105-200508
BLACK,TRIM20
sub71440-24530
main71440-24390-C1i200105-200508
SADDLE TAN,TRIM21
sub71440-24530
main71440-24390-C1i200106-200205
SADDLE TAN,TRIM2#
sub71440-24530
main71440-24400-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71440-24540
main71440-24400-C0i200105-200508
W(SEAT HEATER),BLACK,TRIM20
sub71440-24540
main71440-24400-C1i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71440-24540
main71440-24410-A0i200105-200508
ECRU,TRIM0#
sub71440-24550
main71440-24410-C0i200105-200508
BLACK,TRIM20
sub71440-24550
main71440-24410-C1i200105-200508
SADDLE TAN,TRIM21
sub71440-24550
main71440-24420-A0i200105-200508
W(SEAT HEATER),ECRU,TRIM0#
sub71440-24560
main71440-24420-C0i200105-200508
W(SEAT HEATER),BLACK,TRIM20
sub71440-24560
main71440-24420-C1i200105-200508
W(SEAT HEATER),SADDLE TAN,TRIM21
sub71440-24560
main71440-24530-A0i200508-200808
ECRU,TRIM0#
sub71440-24530
sub71440-24610
main71440-24530-A1i200808-200908
ECRU,TRIM0#
sub71440-24530
sub71440-24610
main71440-24530-C0i200508-200808
BLACK,TRIM2#
sub71440-24530
sub71440-24610
main71440-24530-C1i200808-200908
BLACK,TRIM2#
sub71440-24530
sub71440-24610
main71440-24530-E0i200508-200808
CAMEL,TRIM4#
sub71440-24530
sub71440-24610
main71440-24530-E2i200808-200908
CAMEL,TRIM4#
sub71440-24530
sub71440-24610
main71440-24540-A0i200508-200808
W(SEAT HEATER),ECRU,TRIM0#
sub71440-24540
sub71440-24600
main71440-24540-A1i200808-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71440-24540
sub71440-24600
main71440-24540-C0i200508-200808
W(SEAT HEATER),BLACK,TRIM2#
sub71440-24540
sub71440-24600
main71440-24540-C2i200808-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71440-24540
sub71440-24600
main71440-24540-E0i200508-200808
W(SEAT HEATER),CAMEL,TRIM4#
sub71440-24540
sub71440-24600
main71440-24540-E2i200808-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71440-24540
sub71440-24600
main71440-24550-A0i200508-200808
ECRU,TRIM0#
sub71440-24550
sub71440-24620
main71440-24550-A1i200808-200908
ECRU,TRIM0#
sub71440-24550
sub71440-24620
main71440-24550-C0i200508-200808
BLACK,TRIM2#
sub71440-24550
sub71440-24620
main71440-24550-C1i200808-200908
BLACK,TRIM2#
sub71440-24550
sub71440-24620
main71440-24550-E0i200508-200808
CAMEL,TRIM4#
sub71440-24550
sub71440-24620
main71440-24550-E1i200808-200908
CAMEL,TRIM4#
sub71440-24550
sub71440-24620
main71440-24560-A0i200508-200808
W(SEAT HEATER),ECRU,TRIM0#
sub71440-24560
sub71440-24630
main71440-24560-A1i200808-200908
W(SEAT HEATER),ECRU,TRIM0#
sub71440-24560
sub71440-24630
main71440-24560-C0i200508-200808
W(SEAT HEATER),BLACK,TRIM2#
sub71440-24560
sub71440-24630
main71440-24560-C1i200808-200908
W(SEAT HEATER),BLACK,TRIM2#
sub71440-24560
sub71440-24630
main71440-24560-E0i200508-200808
W(SEAT HEATER),CAMEL,TRIM4#
sub71440-24560
sub71440-24630
main71440-24560-E1i200808-200908
W(SEAT HEATER),CAMEL,TRIM4#
sub71440-24560
sub71440-24630
main71440-24600-A1i200908
W(SEAT HEATER),ECRU,TRIM0#
main71440-24600-C2i200908
W(SEAT HEATER),BLACK,TRIM2#
main71440-24600-E1i200908
W(SEAT HEATER),CAMEL,TRIM4#
main71440-24610-A1i200908
ECRU,TRIM0#
main71440-24610-C1i200908
BLACK,TRIM2#
main71440-24610-E1i200908
CAMEL,TRIM4#
main71440-24620-A1i200908
ECRU,TRIM0#
main71440-24620-C1i200908
BLACK,TRIM2#
main71440-24620-E1i200908
CAMEL,TRIM4#
main71440-24630-A1i200908
W(SEAT HEATER),ECRU,TRIM0#
main71440-24630-C1i200908
W(SEAT HEATER),BLACK,TRIM2#
main71440-24630-E1i200908
W(SEAT HEATER),CAMEL,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71051-24010i200105-200201
sub71051-24011
main71051-24011i200201-200508
main71511-24080i200105-200508
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-24010i200105-200201
sub71052-24011
main71052-24011i200201-200508
main71512-24050i200105-200508
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-24100i200105-200508
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-24040i200105-200508
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-24140-A0i200105-200508
ECRU,TRIM0#
sub71705-24181
main71705-24140-C0i200105-200106
BLACK,TRIM20
sub71705-24181
main71705-24140-E0i200105-200508
SADDLE TAN,TRIM21
sub71705-24181
main71705-24140-E0i200106-200205
SADDLE TAN,TRIM2#
sub71705-24181
main71705-24150-C0i200106
BLACK,TRIM20
sub71705-24181
main71705-24180-A0i200508-200907
ECRU,TRIM0#
sub71705-24181
main71705-24180-C0i200508-200907
BLACK,TRIM2#
sub71705-24181
main71705-24180-E0i200508-200907
CAMEL,TRIM4#
sub71705-24181
main71705-24181-A2i200908
ECRU,TRIM0#
main71705-24181-C1i200908
BLACK,TRIM2#
main71705-24181-E3i200908
CAMEL,TRIM4#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-24050-A0i200105-200508
ECRU,TRIM0#
sub71706-24091
main71706-24050-C0i200105-200106
BLACK,TRIM20
sub71706-24091
main71706-24050-E0i200105-200508
SADDLE TAN,TRIM21
sub71706-24091
main71706-24050-E0i200106-200205
SADDLE TAN,TRIM2#
sub71706-24091
main71706-24060-C0i200106
BLACK,TRIM20
sub71706-24091
main71706-24090-A0i200508-200907
ECRU,TRIM0#
sub71706-24091
main71706-24090-C0i200508-200907
BLACK,TRIM2#
sub71706-24091
main71706-24090-E0i200508-200907
CAMEL,TRIM4#
sub71706-24091
main71706-24091-A2i200908
ECRU,TRIM0#
main71706-24091-C1i200908
BLACK,TRIM2#
main71706-24091-E3i200908
CAMEL,TRIM4#
71771ABOARD, FRONT SEATBACK
main71772-24030-A0i200105-200508
ECRU,TRIM0#
main71772-24030-C0i200508
BLACK,TRIM2#
main71772-24030-C0i200105-200508
BLACK,TRIM20
main71772-24030-E0i200105-200508
SADDLE TAN,TRIM21
main71772-24030-E1i200508
CAMEL,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-24250-C0i200106
BLACK,TRIM20
sub71910-24320
main71910-24260-A0i200105-200508
ECRU,TRIM0#
sub71910-24320
main71910-24260-C0i200105-200106
BLACK,TRIM20
sub71910-24320
main71910-24260-E0i200106-200205
SADDLE TAN,TRIM2#
sub71910-24320
main71910-24260-E0i200105-200508
SADDLE TAN,TRIM21
sub71910-24320
main71910-24290-A0i200508-200908
ECRU,TRIM0#
sub71910-24320
main71910-24290-C0i200508-200908
BLACK,TRIM2#
sub71910-24320
main71910-24290-E0i200508-200908
CAMEL,TRIM4#
sub71910-24320
main71910-24320-A1i200908
ECRU,TRIM0#
main71910-24320-C1i200908
BLACK,TRIM2#
main71910-24320-E2i200908
CAMEL,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-A1i200105-200508
W(LOCK),ECRU,TRIM0#
sub71930-47010
sub71930-44020
main71930-47010-C0i200508
W(LOCK),BLACK,TRIM2#
sub71930-47010
sub71930-44020
main71930-47010-C0i200105-200508
W(LOCK),BLACK,TRIM20,21
sub71930-47010
sub71930-44020
main71930-47010-C0i200508
W(LOCK),BLACK,TRIM2#,5#
sub71930-47010
sub71930-44020
main71930-47010-E4i200508
W(LOCK),CAMEL,TRIM4#
sub71930-47010
sub71930-44020
main71931-47010-A1i200105-200508
W/O(LOCK),ECRU,TRIM0#
sub71931-47010
sub71931-42020
main71931-47010-C0i200508
W/O(LOCK),BLACK,TRIM2#
sub71931-47010
sub71931-42020
main71931-47010-C0i200508
W/O(LOCK),BLACK,TRIM2#,5#
sub71931-47010
sub71931-42020
main71931-47010-C0i200105-200508
W/O(LOCK),BLACK,TRIM20,21
sub71931-47010
sub71931-42020
main71931-47010-E5i200508
W/O(LOCK),CAMEL,TRIM4#
sub71931-47010
sub71931-42020
72597ABEZEL, RECLINING REMOTE CONTROL LEVER, RH
main72597-24010-A0i200105-200508
ECRU,TRIM0#
main72597-24010-C0i200508
BLACK,TRIM2#,5#
main72597-24010-C0i200105-200508
BLACK,TRIM20,21
main72597-24010-C0i200508
BLACK,TRIM2#
main72597-24010-E0i200508
CAMEL,TRIM4#
72598BEZEL, RECLINING REMOTE CONTROL LEVER, LH
main72598-24010-A0i200105-200508
ECRU,TRIM0#
main72598-24010-C0i200508
BLACK,TRIM2#
main72598-24010-C0i200508
BLACK,TRIM2#,5#
main72598-24010-C0i200105-200508
BLACK,TRIM20,21
main72598-24010-E0i200508
CAMEL,TRIM4#
9016740044
main90167-40044
9046816019
main90468-16019
91511G0608
main91511-G0608
9354055016
main93540-55016

21 parts on this diagram · 2 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
