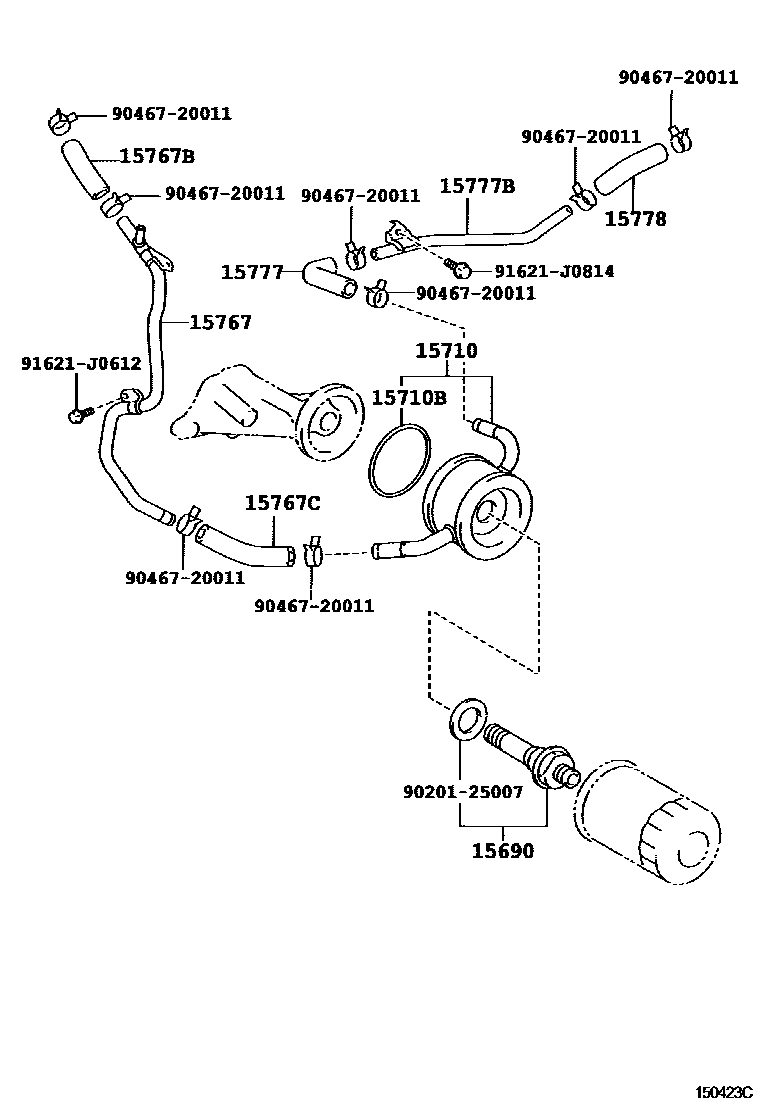

ENGINE OIL COOLER

15690VALVE ASSY, OIL COOLER RELIEF

main15695-88410i3UZFE..UZZ40..EUR,GCC200105-200508

main15695-88411i3UZFE..UZZ40..EUR,GCC200508

15710COOLER ASSY, OIL

main15710-50011i3UZFE..UZZ40..EUR,GCC200105-200508

15710BRING, O(FOR OIL COOLER)

main90301-67004i3UZFE..UZZ40..EUR,GCC200105-200508

15767PIPE, OIL COOLER

main15767-50090i3UZFE..UZZ40..EUR,GCC200105-200508

15767BHOSE, WATER BY-PASS, NO.4

main16281-50030i3UZFE..UZZ40..EUR,GCC200105-200508

15767CHOSE, WATER BY-PASS, NO.5

main16282-50020i3UZFE..UZZ40..EUR,GCC200105-200508

15777HOSE, OIL COOLER

main15777-50080i3UZFE..UZZ40..EUR,GCC200105-200508

15777BPIPE, OIL COOLER

main15769-50020i3UZFE..UZZ40..EUR,GCC200105-200508

15778HOSE, OIL COOLER, NO.2

main15778-50020i3UZFE..UZZ40..EUR,GCC200105-200508

9020125007

main90201-25007

9046720011

main90467-20011

91621J0612

main91621-J0612

91621J0814

main91621-J0814

13 parts on this diagram · 1 diagram in section
