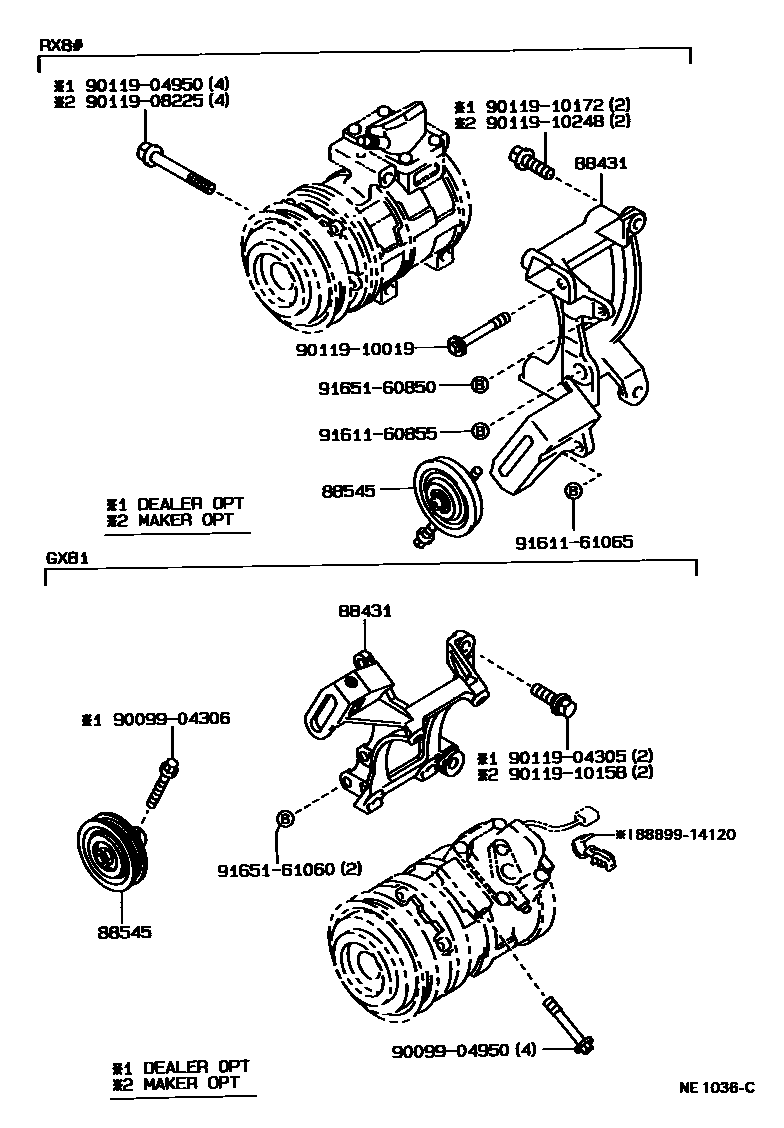

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22221iRX8#198808-199608

main88431-22250iMX81198808-199302

main88431-22260iGX81198808-199302

main88431-22270iLX80198808-199008

main88431-22280iMX83..GL198808-199008

main88431-22280iMX83..GLX199003-199302

DEALER OPT

main88431-22300iMX83199008-199302

main88431-22300iMX83..GLX199003-199008

MAKER OPT

main88431-22330iLX80199008-199112

main88431-22331iLX80199112-199302

88545PULLEY ASSY, IDLE

main88440-17010iGX81198808-199302

main88440-22070iRX80..RHD198808-199302

DEALER OPT

main88440-22090iMX83..GLX199003-199302

sub88440-26100

main88440-30290iMX81198808-199302

main88440-35010iRX80..RHD198808-199302

MAKER OPT

main88440-35010iLX80,RX8#..LHD198808-199608

8889914120COVER, EVAPORATOR

main88899-14120

9009904306

main90099-04306

9009904950

main90099-04950

9011904305

main90119-04305

9011904950

main90119-04950

9011908225

main90119-08225

9011910019

main90119-10019

9011910158

main90119-10158

9011910172

main90119-10172

9011910248

main90119-10248

9161160855

main91611-60855

9161161065

main91611-61065

9165160850

main91651-60850

9165161060

main91651-61060

16 parts on this diagram · 6 diagrams in section
