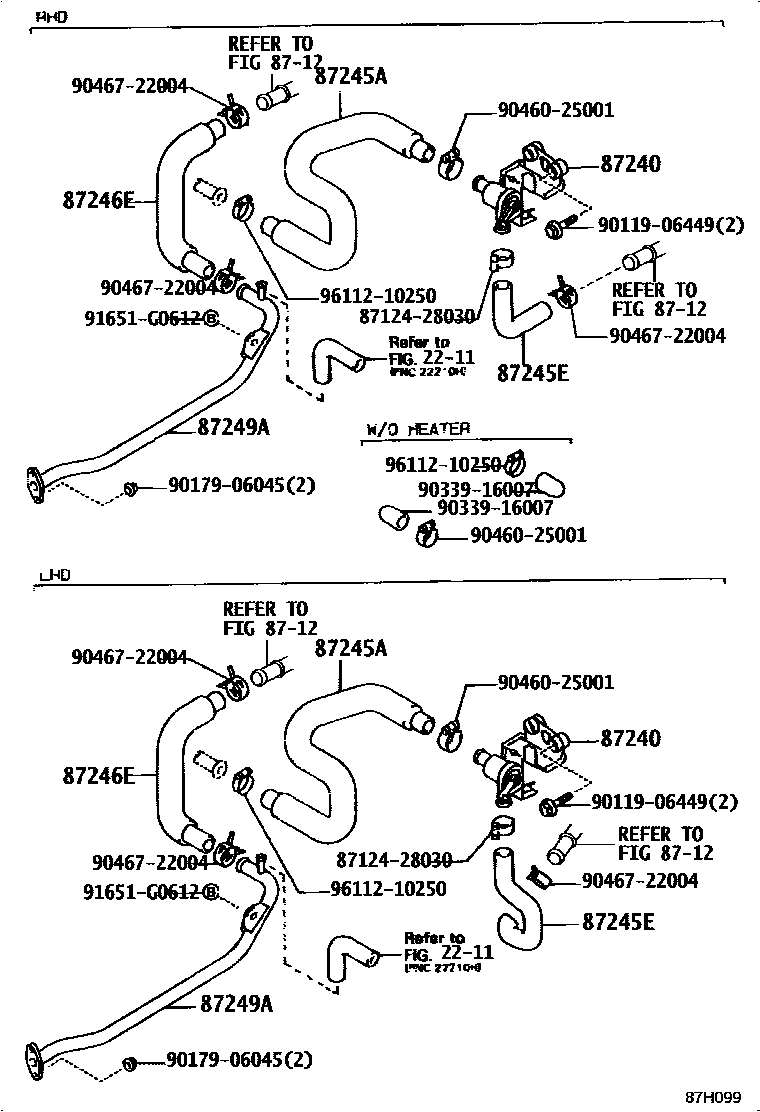

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

2211

8712

87240VALVE ASSY, HEATER WATER

main87240-22320iGX81,MX83,RX80..RHD198808-199302

main87240-22340iGX81,LX80,MX81,RX8#..LHD198808-199608

87245AHOSE, HEATER WATER, INLET A

main87245-22881iRX80..RHD198808-199302

main87245-2A090iMX83198808-199302

main87245-2A120iMX81198808-199302

main87245-2A130iGX81..LHD198808-199302

main87245-2A140iRX8#..LHD198808-199608

main87245-2A200iGX81..RHD198808-199302

main87245-2A260iLX80198812-199302

NO.1

main87245-2A260iLX80198808-198812

main87245-2A320iLX80198812-199302

NO.2

87245EHOSE, HEATER WATER, INLET E

main87245-2A170iGX81,MX83,RX80..RHD198808-199302

main87245-2A190iGX81,LX80,MX81,RX8#..LHD198808-199608

87246EHOSE, HEATER WATER, OUTLET E

main87245-2A010iGX81..4FC198808-199302

main87245-2A050iRX80..RHD198808-199302

main87245-2A210iRX8#..LHD198808-199608

main87245-2A250iGX81,MX81..LHD198808-199302

main87245-2A270iLX80198808-199302

main87245-2A340iMX83198908-199302

87249APIPE, HEATER WATER OUTLET, A

main87208-22030iRX8#198808-199608

main87208-22181iGX81198808-198809

sub87208-22182

main87208-22182iGX81198809-199005

sub87208-22260

main87208-22260iGX81199005-199111

sub87208-22261

main87208-22261iGX81199111-199205

sub87208-22262

main87208-22262iGX81199205-199302

8712428030CLAMP, HEATER

main87124-28030

9011906449

main90119-06449

9017906045

main90179-06045

9033916007

main90339-16007

9046025001

main90460-25001

9046722004

main90467-22004

91651G0612

main91651-G0612

9611210250

main96112-10250

15 parts on this diagram · 4 diagrams in section
