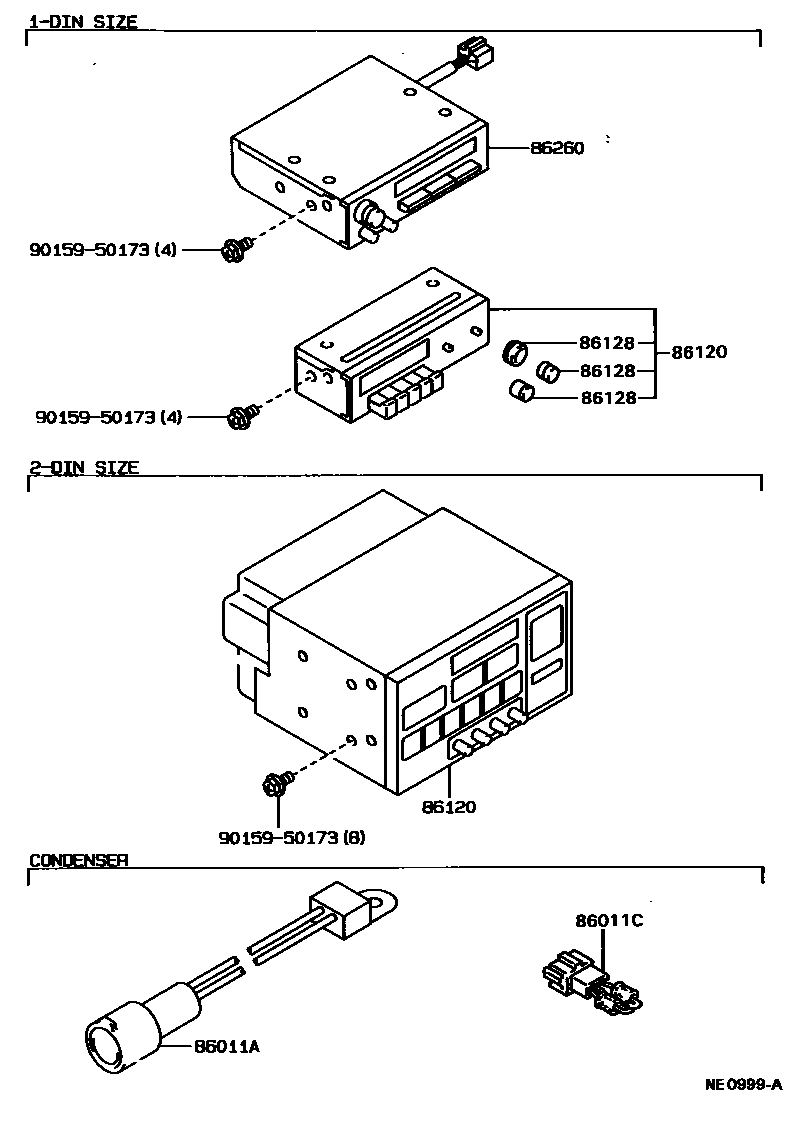

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04071iGX81,LX80,MX8#,RX8#198808-199103

main90980-04099iGX81,LX80,MX8#,RX8#199103-199608

86011CFILTER, NOISE

main90980-05156iGX81,RX8#198808-199008

FLASHER

main90980-05156iGX81,RX8#..LHD199008-199608

86120RECEIVER ASSY, RADIO

main86120-16460iMX81,RX8#..(GD,GL)..V198808-199108

MATSUSHITA,ID=5108,MW/SW 5 BUTTON 1DIN

main86120-16530iMX81,RX8#..XL..V198808-199302

MATSUSHITA,ID=5010,AM 5 BUTTON 1DIN

sub86120-35080

sub86120-35110

sub86120-37010

main86120-17290iRX81199509-199608

MATSUSHITA,ID=57402,AM/FM ETR CST 1DIN

main86120-1A020iGX81,LX80,MX81,RX8#199109-199302

FUJITSU TEN,ID=12201,AM/FM MPX ETR 1DIN GEN(AM=9KHZ STEP)

main86120-20720iGX81,LX80,MX81,RX8#198808-199108

MATSUSHITA,AM/FM 5 BUTTON 1DIN

main86120-2A030iGX81,LX80,MX81,RX8#198808-199109

MATSUSHITA,AM/FM MPX ETR 1DIN GEN(AM=9KHZ STEP)

main86120-2A040iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199509

MATSUSHITA,AM/FM MPX ETR CST 2DIN

main86120-2A050iGX81..LHD;MX81,RX8#..(GD,GL)..V198811-199302

MATSUSHITA,AM/SW FM MPX ETR CST 1DIN

main86120-2A050iMX81,RX80..(GD,GL)..V198808-198811

MATSUSHITA,AM/SW/FM MPX ETR CST 2DIN

main86120-2A060iLX80198808-199302

AM/FM MPX ETR CST A.F. 2DIN

main86120-2A070iGX81,LX80,MX81,RX8#..GEN198808-199302

MATSUSHITA,AM/FM MPX ETR 1DIN(AM=5KHZ STEP)

main86120-2A150iMX83199008-199302

AM/FM MPX ETR CST CD A.F. 2DIN

main86120-2A190iRX81199108-199509

MATSUSHITA,ID=57202

sub86120-35100

main86120-2A190iMX81,RX81..GD,GL199108-199302

MATSUSHITA,ID=57202,AM/SW1/SW2 ETR CST 1DN

sub86120-35100

main86120-2B360iRX81199606-199608

MATSUSHITA,ID=57400,AM/FM 5 BUTTON 1DIN

main86120-35090iRX81199302-199606

MATSUSHITA,ID=57400,AM/FM 5 BUTTON 1DIN

main86120-35100iRX81199509-199608

MATSUSHITA,ID=57401

86128KNOB, RADIO RECEIVER

main86128-12160iGX81,LX80,MX81,RX8#199109-199302

TONE

main86128-12180iGX81,LX80,MX81,RX8#199109-199302

BALANCE

main86128-14150iGX81,LX80,MX81,RX8#..GEN198808-199109

PWR/VOL

main86128-14170iGX81,LX80,MX81,RX8#..GEN198808-199008

BAL

main86128-14170iGX81,LX80,MX81,RX8#199008-199109

BALANCE

main86128-14190iGX81,LX80,MX81,RX8#..GEN198808-199109

TONE

main86128-16300iGX81,LX80,MX81,RX8#199109-199302

PWR/VOL

main86128-17150iMX83..GL198808-199008

PWR/VOL

main86128-17210iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199008

BASS,TREB,BAL,FADE

main86128-17310iRX81199108-199608

PWR/VOL

main86128-17330iMX81,RX81..GD,GL199108-199509

BAL,BASS/TREB

main86128-17330iRX81199509-199608

BAL,BASS,BAL,BASS/TREB

main86128-20010iMX81,RX8#..V198808-199008

PWR/VOL

main86128-20030iMX81,RX8#..XL..V198808-199008

TONE

main86128-20030iMX81,RX8#..(GD,GL)..V198808-199008

SELECT,TONE

main86128-20050iMX81,RX8#..XL..V198808-199008

TUNE

main86128-22770iRX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN198808-199008

TUNE

86260TAPE PLAYER ASSY

main86260-22230iGX81,LX80,MX81,RX8#198808-199302

9015950173

main90159-50173

6 parts on this diagram · 2 diagrams in section
