OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1OVERDRIVE 0003 1ECT

84720SWITCH ASSY, PATTERN SELECT

main84720-22120iMX83198808-199008

main84720-22150iMX83199008-199302

84722SWITCH, TRANSMISSION CONTROL

main84722-22080-02iGX81,MX83,RX80..RHD..4FC198808-199302

NEW MAROON,TRIM3#

sub84722-22080

main84722-22080-03iGX81,MX83,RX80..RHD..4FC199008-199302

MEDIUM GRAY,TRIM1#

sub84722-22080

main84722-22080-04iGX81,MX83,RX80..RHD..4FC198808-199008

DARK BLUE,TRIM8#

sub84722-22080

main84722-22080-06iGX81,MX83,RX80..RHD..4FC198808-199302

SABLE,TRIM4#

sub84722-22080

main84722-22090-02iRX81..4FC..GL198808-199304

NEW MAROON,TRIM3#

sub84722-22090

main84722-22090-03iLX80,MX81,RX8#..LHD..4FC199008-199302

MEDIUM GRAY,TRIM1#

sub84722-22090

main84722-22090-04iLX80,MX81,RX8#..LHD..4FC198808-199008

DARK BLUE,TRIM8#

sub84722-22090

main84722-22090-06iLX80,MX81,RX8#..LHD..4FC198808-199302

SABLE,TRIM4#

sub84722-22090

main84722-22100-02iMX83199008-199302

GRAND PACKAGE,NEW MAROON,TRIM3#

sub84722-22100

main84722-22100-03iMX83199008-199302

GRAND PACKAGE,MEDIUM GRAY,TRIM1#

sub84722-22100

main84722-22100-06iMX83199008-199302

GRAND PACKAGE,SABLE,TRIM4#

sub84722-22100

main84722-22150iRX81..4FC199302-199608

main84722-22150-D0iRX81..4FC199309-199608

NEW MALOON,TRIM3#

sub84722-22150

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-22400iMX81..4FC198808-199008

sub89530-22401

main89530-22401iMX81..4FC199008-199302

89531RELAY, TRANSMISSION CONTROL

main89531-22050iGX81,LX80,RX8#..4FC198808-199302

9351013010

main93510-13010

9356755016

main93567-55016

9461110300

main94611-10300

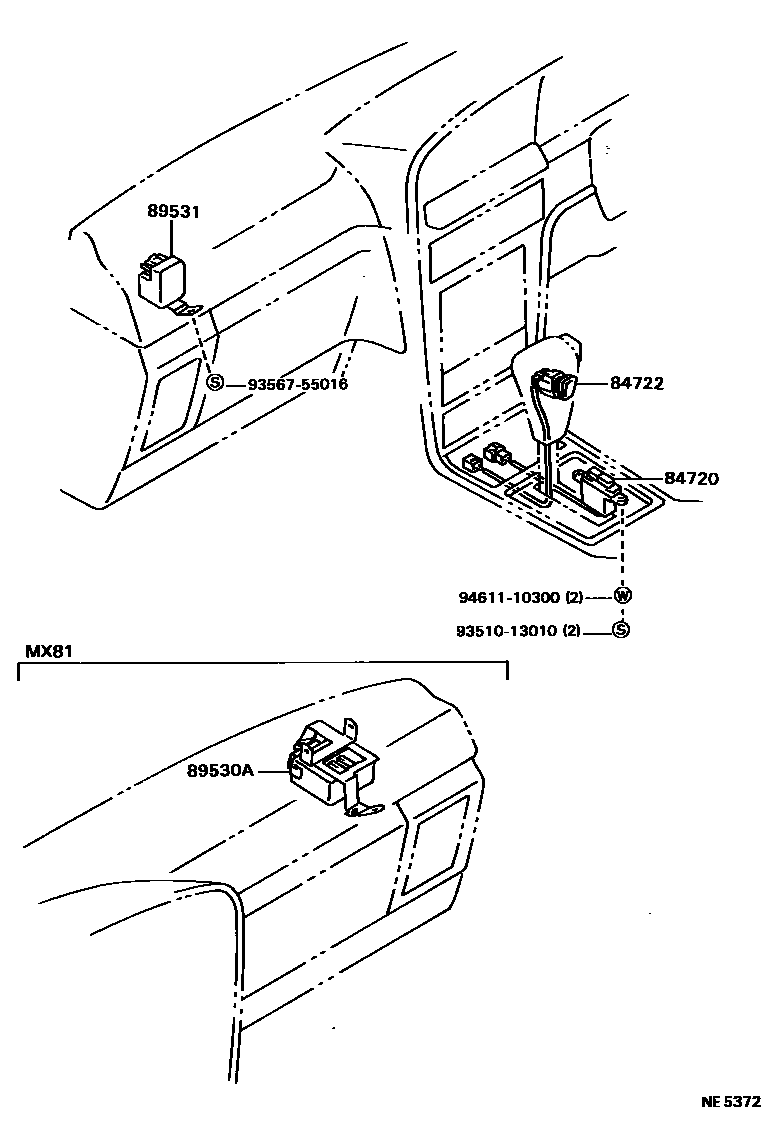

7 parts on this diagram · 3 diagrams in section
