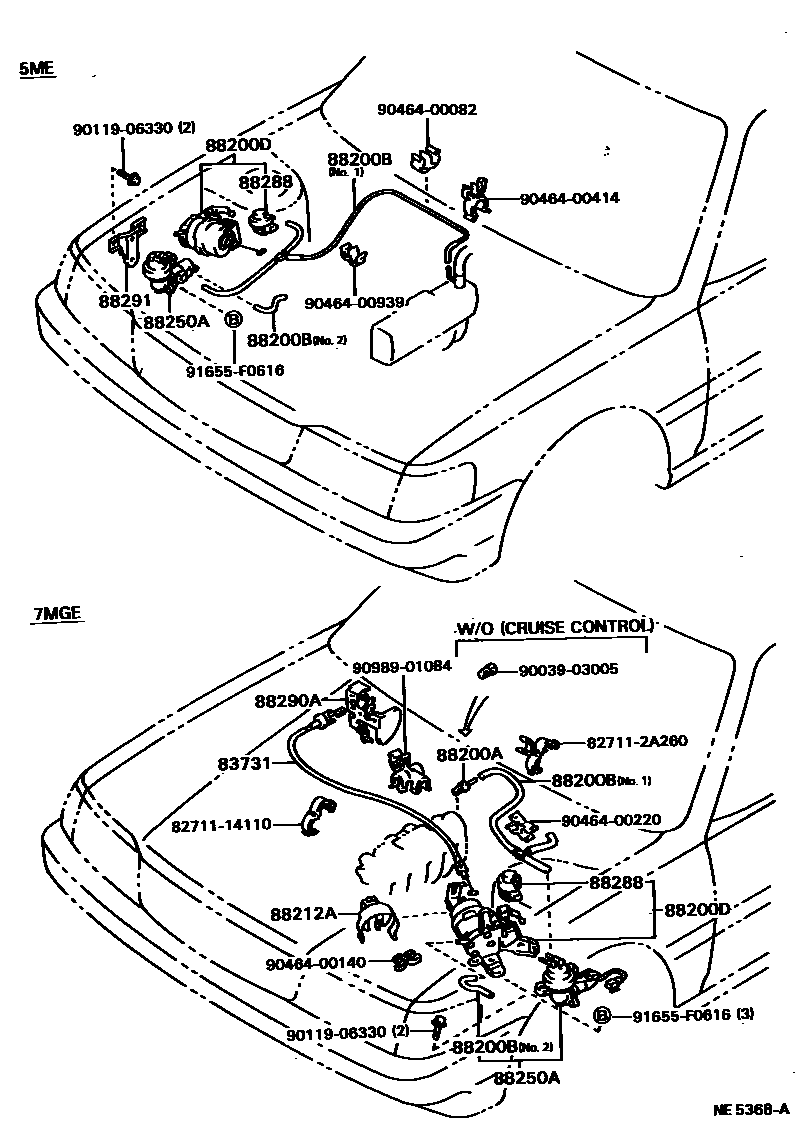

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-22020iMX83..GLX198808-199302

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51093iMX83..GLX198808-199302

88200BHOSE, CRUISE CONTROL VACUUM

main88283-22160iMX81..GD198808-199302

NO.1

main88283-22180iMX83199008-199302

main88283-22180iMX83..GLX198808-199008

NO.1

main90999-92002iMX81..GD198808-199302

L=300,NO.2

main90999-92002iMX83199008-199302

L=300

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-22220iMX83..GLX198808-199302

main88200-22250iMX81..GD198808-199302

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-22150iMX83..GLX198808-199302

88250APUMP ASSY, CRUISE CONTROL

main88251-22160iMX83..GLX198808-199302

main88251-22170iMX81..GD198808-199302

88288SWITCH, VACUUM SPEED CONTROL

main88288-22010iMX8#..(GD,GLX)..(ARL,V)198808-199302

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-22040iMX83..GLX198808-199302

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-22120iMX81..GD198808-199302

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

827112A260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A260

9003903005

main90039-03005

9011906330

main90119-06330

9046400082

main90464-00082

9046400140

main90464-00140

9046400220

main90464-00220

9046400414

main90464-00414

9046400939

main90464-00939

9098901084

main90989-01084

91655F0616

main91655-F0616

20 parts on this diagram · 2 diagrams in section
