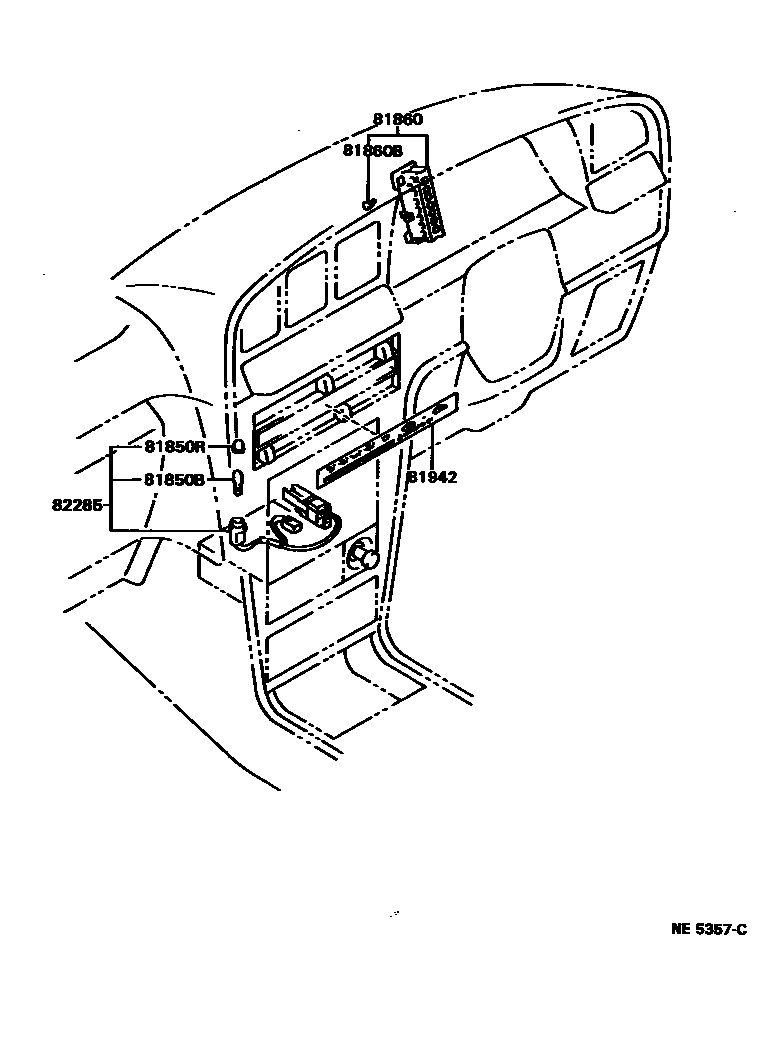

INDICATOR

81850BBULB, INDICATOR LAMP

main90981-11014iGX81,LX80,MX8#,RX8#198808-199608

14V 1.4W

81850RCAP BULB

main84998-10530iGX81,LX80,MX8#,RX8#198808-199608

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-22020iGX81..4FC199008-199302

W(MPH/KMH SPEEDOMETER)

sub81860-32040

main81860-22040iGX81,LX80,MX8#,RX8#..4FC198808-199310

sub81860-22041

main81860-22041iRX81..4FC199310-199608

main81860-22050iGX81,LX80,MX81,RX8#..5F198808-199608

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-50180iGX81,LX80,MX8#,RX8#..4FC198808-199302

12V 1.2W

main84999-50190iGX81,LX80,MX8#,RX8#..4FC198808-199302

12V 1.2W,GREEN CAP

81942SHEET, HEATER CONTROL NAME

main81942-22020iGX81..RHD198808-199302

W(PUSH TYPE HEATER CONTROL & AUTO AIR CONDITIONER)

main81942-22040iGX81,RX80..RHD198808-199302

main81942-22050iRX80..RHD198808-199302

W(BOOST VENTILATOR)

main81942-22060iGX81,LX80,MX81,RX8#..LHD198808-199608

main81942-22070iLX80,RX80..LHD198808-199302

W(BOOST VENTILATOR)

main81942-22080iGX81..RHD198808-199008

W(AUTO AIR CONDITIONER)

main81942-22080iRX80..RHD198808-199302

W(BOOST VENTILATOR & AIR CONDITIONER)

main81942-22090iMX81,RX8#..LHD..XL;RX8#..LHD..GL..GEN198808-199302

W(BOOST VENTILATOR & AIR CONDITIONER)

82285WIRE, ILLUMINATION

main82285-22020iGX81,LX80,MX8#,RX8#198808-199608

6 parts on this diagram · 1 diagram in section
