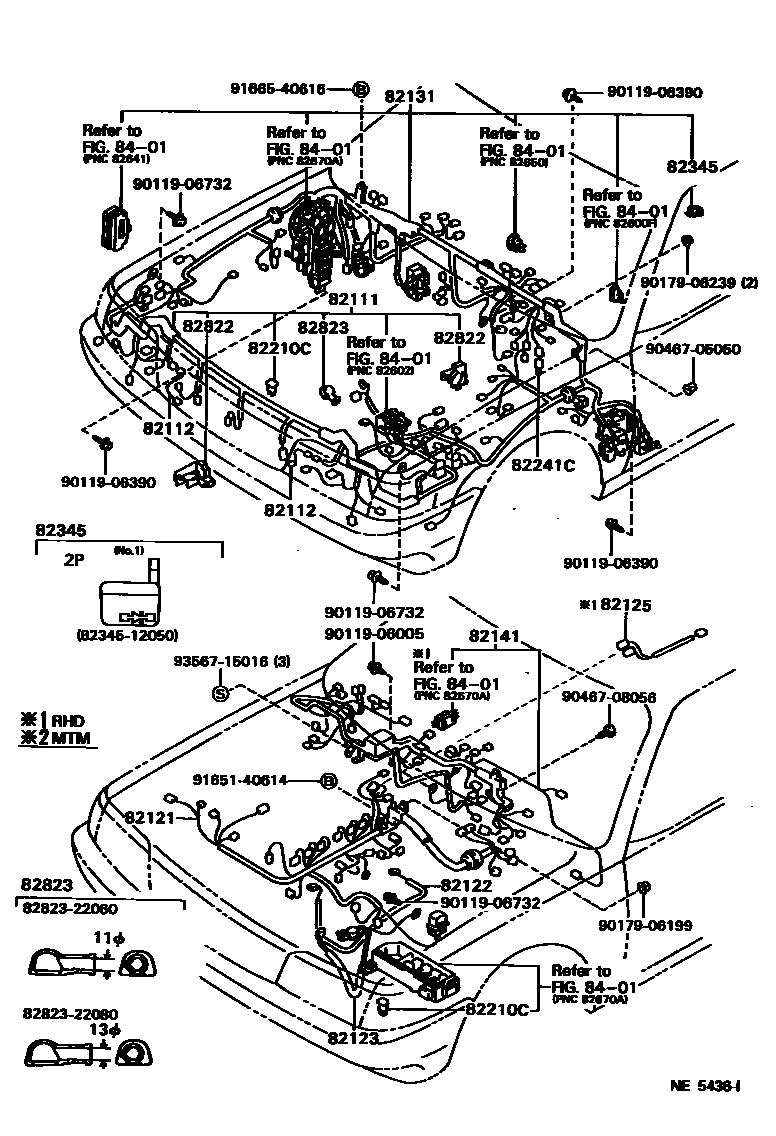

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(ANTI-LOCK BRAKE SYSTEM)
W(ANTI-LOCK BRAKE SYSTEM)
82112WIRE, ENGINE ROOM, NO.2
82122WIRE, ENGINE, NO.2
COLD SPEC
82123WIRE, ENGINE, NO.3
W(55D23L-MF BATTERY)
W(55D23R BATTERY)
82125WIRE, TRANSMISSION
82131WIRE, COWL
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
sub82131-2A891
sub82131-2C011
W(PUSH TYPE HEATER CONTROL)
W(AUTI-COCK BRAKE SYSTEM)
W(AUTO AIR CONDITIONER)
GRAND PACKAGE
W(PUSH TYPE HEATER CONTROL)
82141WIRE, INSTRUMENT PANEL
W(DIGITAL SPEEDOMETER)
W(FRONT DOOR SPEAKER)
W(FRONT DOOR SPEAKER)
W(DIGITAL SPEEDOMETER)
W(FRONT DOOR SPEAEKR & DIGITAL SPPEDOOMETER)
W(FRONT DOOR SPEAKER)
W(FRONT DOOR SPEAKER & DIGITAL SPEEDMETER)
W(FRONT DOOR SPEAKER)
W(FRONT DOOR SPEAKER)
W(DIGITAL SPEED METER)
W(DIGITAL SPEEDMETER)
W(FRONT DOOR SPEAKER)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,E/G ROOM F/L BLOCK
30A,TERM.:FEMALE,PNK,E/G ROOM J/B
30A,TERM.:FEMALE,PNK,E/G BLOCK J/B
40A,TERM.:FEMALE,GRN,E/G BLOCK J/B
40A,TERM.:FEMALE,GRN,E/G ROOM J/B
60A,TERM.:MALE,YEL,E/G ROOM F/L BLOCK
80A,TERM.:MALE,BLK,E/G ROOM F/L BLOCK
100A,TERM.:MALE,BLUE
100A,TERM.:MALE,BLUE,E/G ROOM F/L BLOCK
82241CWIRE, RELAY
82345DIODE
82822BRACKET,CONNECTOR BLOCK
RH
LH
LH
RH
RH
W(*66),RH
RH
LH
RH
RH
82823CAP, TERMINAL, NO.1
8401
8234512050DIODE
main82345-12050
8282322060CAP, TERMINAL, NO.1
main82823-22060
8282322080CAP, TERMINAL, NO.1
main82823-22080
9011906005
main90119-06005
9011906390
main90119-06390
9011906732
main90119-06732
9017906199
main90179-06199
9017906239
main90179-06239
9046705050
main90467-05050
9046708056
main90467-08056
9165140614
main91651-40614
9166540616
main91665-40616
9356715016
main93567-15016
27 parts on this diagram · 12 diagrams in section
