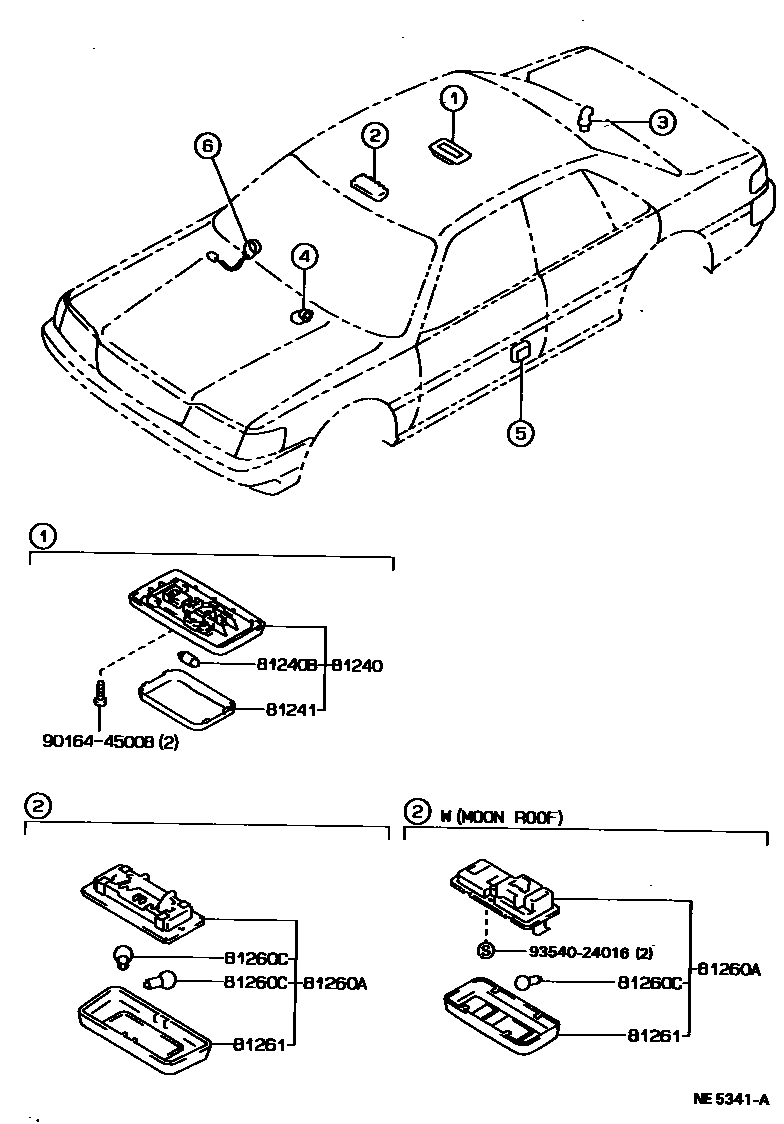

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-12030-12iMX81,RX8#..XL199008-199608

NEW MAROON,TRIM3#

sub81240-12030

sub81240-22100

main81240-12030-14iMX81,RX8#..XL198808-199008

BLUE,TRIM8#

sub81240-12030

sub81240-22100

main81240-12030-16iMX81,RX8#..XL199008-199302

SABLE,TRIM4#

sub81240-12030

sub81240-22100

main81240-12030-16iMX81,RX8#..XL198808-199008

SABLE,TRIM3#,4#

sub81240-12030

sub81240-22100

main81240-12030-33iMX81,RX8#..XL199008-199302

MEDIUM GRAY,TRIM1#

sub81240-12030

sub81240-22100

main81240-22100-02iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199608

NEW MAROON,TRIM3#

sub81240-22100

main81240-22100-04iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199008

BLUE,TRIM8#

sub81240-22100

main81240-22100-06iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199008

SABLE,TRIM3#,4#

sub81240-22100

main81240-22100-06iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

SABLE,TRIM4#

sub81240-22100

main81240-22100-13iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

MEDIUM GRAY,TRIM1#

sub81240-22100

main81240-22110-04iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199008

W(MOON ROOF),BLUE,TRIM8#

sub81240-22110

sub81240-20090

main81240-22110-06iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),SABLE,TRIM4#

sub81240-22110

sub81240-20090

main81240-22110-06iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199008

W(MOON ROOF),SABLE,TRIM3#,4#

sub81240-22110

sub81240-20090

main81240-22110-12iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),NEW MAROON,TRIM3#

sub81240-22110

sub81240-20090

main81240-22110-13iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),MEDIUM GRAY,TRIM1#

sub81240-22110

sub81240-20090

81240BBULB, ROOM LAMP, NO.1

main99132-12100iGX81,LX80,MX8#,RX8#198808-199608

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-12020iMX81,RX8#..XL198808-199608

main81241-22110iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199608

81260LAMP ASSY, GLOVE BOX

main81260-32071iGX81,LX80,MX8#,RX8#198808-199608

81260ALAMP ASSY, MAP

main81260-22100-02iGX81,LX80,MX8#,RX8#199008-199608

NEW MAROON,TRIM3#

sub81260-22100

sub81260-43030

main81260-22100-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

sub81260-22100

sub81260-43030

main81260-22100-04iGX81,MX8#..GD,GLX198808-199008

LIGHT BLUE,TRIM8#

sub81260-22100

sub81260-43030

main81260-22100-06iGX81,MX8#..GD,GLX198808-199008

LIGHT SABLE,TRIM3#,4#

sub81260-22100

sub81260-43030

main81260-22100-06iGX81,LX80,MX8#,RX8#199008-199302

LIGHT SABLE,TRIM4#

sub81260-22100

sub81260-43030

main81260-22130-04iGX81,MX8#..GD,GLX198808-199008

W(MOON ROOF),BLUE,TRIM8#

sub81260-22130

main81260-22130-04iLX80,MX81,RX8#..GL198808-199008

BLUE,TRIM8#

sub81260-22130

main81260-22130-06iGX81,MX8#..GD,GLX198808-199008

W(MOON ROOF),LIGHT SABLE,TRIM3#,4#

sub81260-22130

main81260-22130-06iLX80,MX81,RX8#..GL198808-199008

LIGHT SABLE,TRIM3#,4#

sub81260-22130

main81260-22130-06iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),LIGHT SABLE,TRIM4#

sub81260-22130

main81260-22130-23iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),MEDIUM GRAY,TRIM1#

sub81260-22130

main81260-22130-32iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),NEW MAROON,TRIM3#

sub81260-22130

81260CBULB(FOR MAP LAMP)

main90981-12014iGX81,MX8#..GD,GLX198808-199302

12V 10W,W(MOON ROOF)

main90981-12014iGX81,MX8#..GD,GLX198808-199608

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-22100-04iGX81,MX8#..GD,GLX198808-199008

LIGHT BLUE,TRIM8#

sub81261-22100

main81261-22100-06iGX81,LX80,MX8#,RX8#199008-199302

LIGHT SABLE,TRIM4#

sub81261-22100

main81261-22100-06iGX81,MX8#..GD,GLX198808-199008

LIGHT SABLE,TRIM3#,4#

sub81261-22100

main81261-22100-B0iGX81,LX80,MX8#,RX8#199008-199302

MIDIUM GRAY,TRIM1#

sub81261-22100

main81261-22100-D0iGX81,LX80,MX81,RX8#199008-199608

NEW MAROON,TRIM3#

sub81261-22100

main81261-22130-04iGX81,MX8#..GD,GLX198808-199008

W(MOON ROOF),LIGHT BLUE,TRIM8#

sub81261-22130

main81261-22130-04iLX80,MX81,RX8#..GL198808-199008

LIGHT BLUE,TRIM8#

sub81261-22130

main81261-22130-06iLX80,MX81,RX8#..GL198808-199008

LIGHT SABLE,TRIM3#,4#

sub81261-22130

main81261-22130-06iLX80,MX81,RX8#..GL198808-199008

W(MOON ROOF),LIGHT SABLE,TRIM3#,4#

sub81261-22130

main81261-22130-06iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),LIGHT SABLE,TRIM4#

sub81261-22130

main81261-22130-23iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),MIDIUM GRAY,TRIM1#

sub81261-22130

main81261-22130-32iGX81,LX80,MX8#,RX8#..GD,GL,GLX199008-199302

W(MOON ROOF),NEW MAROON,TRIM3#

sub81261-22130

9016445008

main90164-45008

9354024016

main93540-24016

9 parts on this diagram · 2 diagrams in section
