FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

5801

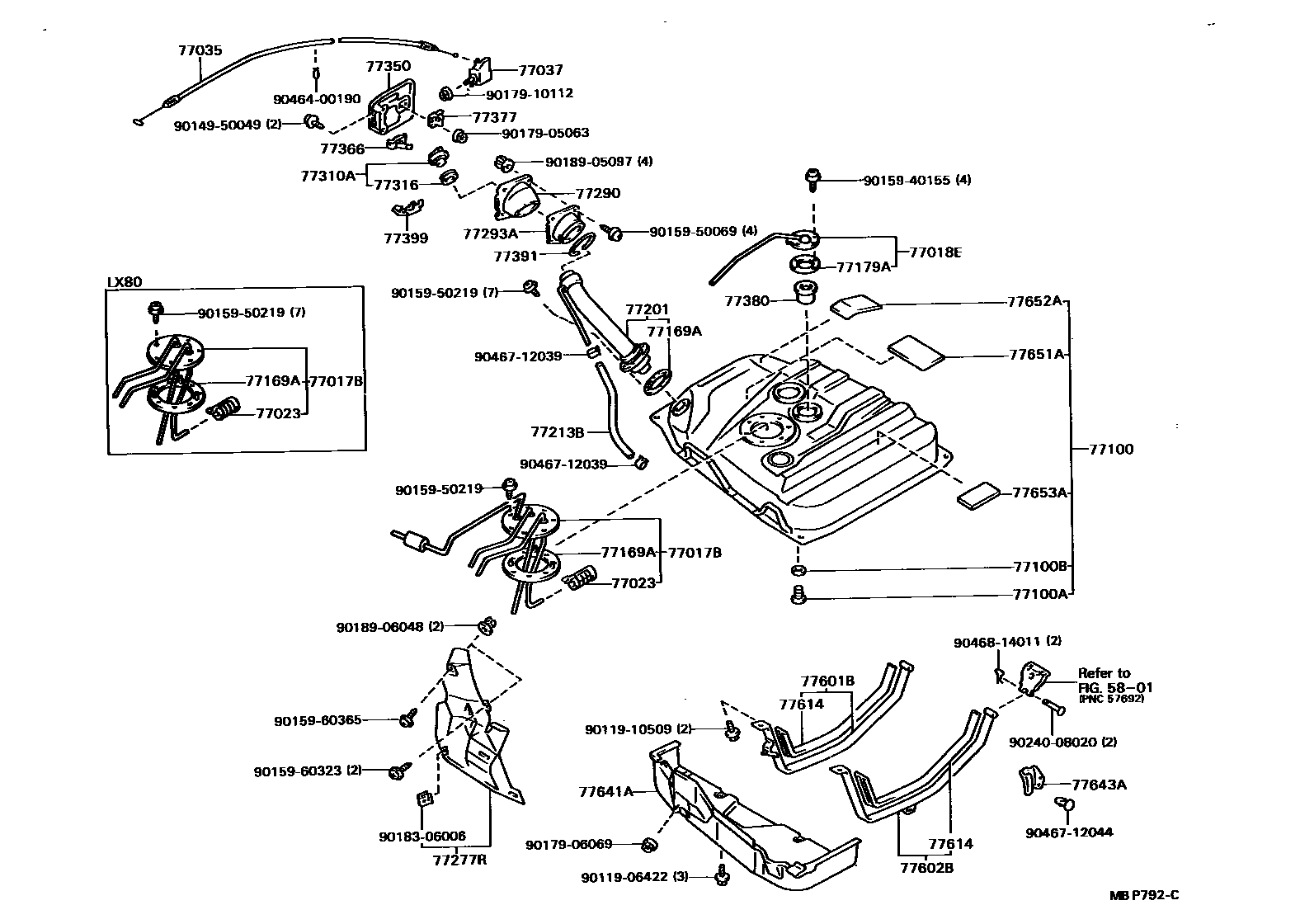

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-22180iRX8#¥8,700198808-199608

main77017-22190iLX80¥5,400198808-199302

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-22050iGX81,LX80,MX8#,RX8#¥2,690198808-199608

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iRX8#¥1,020198808-199608

main77023-32010iLX80¥900198808-199302

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22180iGX81,LX80,MX81,RX8#..LHD¥2,660198808-199608

main77035-22190iGX81,MX83,RX80..RHD¥2,020198808-199302

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-22050iGX81,LX80,MX8#,RX8#¥2,370198808-199608

77100TANK ASSY, FUEL

main77001-22390iGX81,LX80,MX8#,RX8#¥49,000198808-199003

sub77001-22430¥48,400

main77001-22430iGX81,LX80,MX8#,RX8#¥48,400199003-199608

77100APLUG(FOR FUEL TANK)

main90341-20004iGX81,LX80,MX8#,RX8#¥360198808-199608

77100BGASKET(FOR FUEL TANK)

main90430-20007iGX81,LX80,MX8#,RX8#¥220198808-199608

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iGX81,LX80,MX8#,RX8#¥230198808-199608

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iGX81,LX80,MX8#,RX8#¥480198808-199608

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22240iMX83¥14,900198808-199302

main77201-22250iMX83¥12,900198808-199001

NEW ZEALAND SPEC

main77201-22250iGX81,MX81,RX8#¥12,900198808-199608

main77201-22300iLX80¥16,500198808-199302

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22080iGX81,MX8#,RX8#¥750198808-199608

L=280

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-22070iGX81,LX80,MX8#,RX8#¥1,810198808-199608

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-22040iGX81,LX80,MX8#,RX8#¥1,540198808-199608

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22010iGX81,LX80,MX8#,RX8#¥1,200198808-199608

77310ACAP ASSY, FUEL TANK

main77310-16011iGX81,MX8#,RX8#¥2,790198808-199608

sub77310-12140¥2,790

main77310-32011iLX80¥1,940198808-199302

77316GASKET, FUEL TANK CAP

main77316-16010iGX81,LX80,MX8#,RX8#¥660198808-199608

77350LID ASSY, FUEL FILLER OPENING

main77350-22100iGX81,LX80,MX8#,RX8#¥2,260198808-199608

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iGX81,LX80,MX8#,RX8#¥430198808-199608

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGX81,LX80,MX8#,RX8#¥700198808-198903

main77377-22040iGX81,LX80,MX8#,RX8#¥450198903-199608

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iGX81,LX80,MX8#,RX8#¥1,240198808-199608

77391RING, FUEL INLET BOX

main77391-14020iGX81,LX80,MX8#,RX8#¥160198811-199608

main77391-16010iGX81,LX80,MX8#,RX8#¥310198808-198811

77399HANGER, FUEL TANK CAP

main77399-22030iGX81,LX80,MX81,RX8#¥400198808-199608

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-22100iGX81,LX80,MX8#,RX8#¥2,930198808-199608

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-22120iGX81,LX80,MX8#,RX8#¥2,930198808-199608

77614SEAT, FUEL TANK BAND

main77681-22010iGX81,LX80,MX8#,RX8#¥1,340198808-199608

77641APROTECTOR, FUEL TANK, NO.1

main77641-22070iGX81,LX80,MX8#,RX8#¥3,790198808-199608

77643APROTECTOR, FUEL TANK, NO.3

main77643-22060iGX81,LX80,MX8#,RX8#..ARL,GEN¥740198808-199302

77651ACUSHION, FUEL TANK, NO.1

main77651-22070iGX81,LX80,MX8#,RX8#¥650198808-199608

77652ACUSHION, FUEL TANK, NO.2

main77652-22060iGX81,LX80,MX8#,RX8#¥720198808-199608

77653ACUSHION, FUEL TANK, NO.3

main77653-22060iGX81,LX80,MX8#,RX8#¥510198808-199608

9011906422

main90119-06422¥120

9011910509

main90119-10509¥230

9014950049

main90149-50049¥120

9015940155

main90159-40155¥120

9015950069

main90159-50069¥160

9015950219

main90159-50219¥70

9015960323

main90159-60323¥100

9015960365

main90159-60365¥70

9017905063

main90179-05063¥140

9017906069

main90179-06069¥120

9017910112

main90179-10112¥130

9018306006

main90183-06006¥270

9018905097

main90189-05097¥80

9018906048

main90189-06048¥140

9024008020

main90240-08020¥250

9046400190

main90464-00190¥160

9046712039

main90467-12039¥160

9046712044

main90467-12044¥170

9046814011

main90468-14011¥60

51 parts on this diagram · 7 diagrams in section
