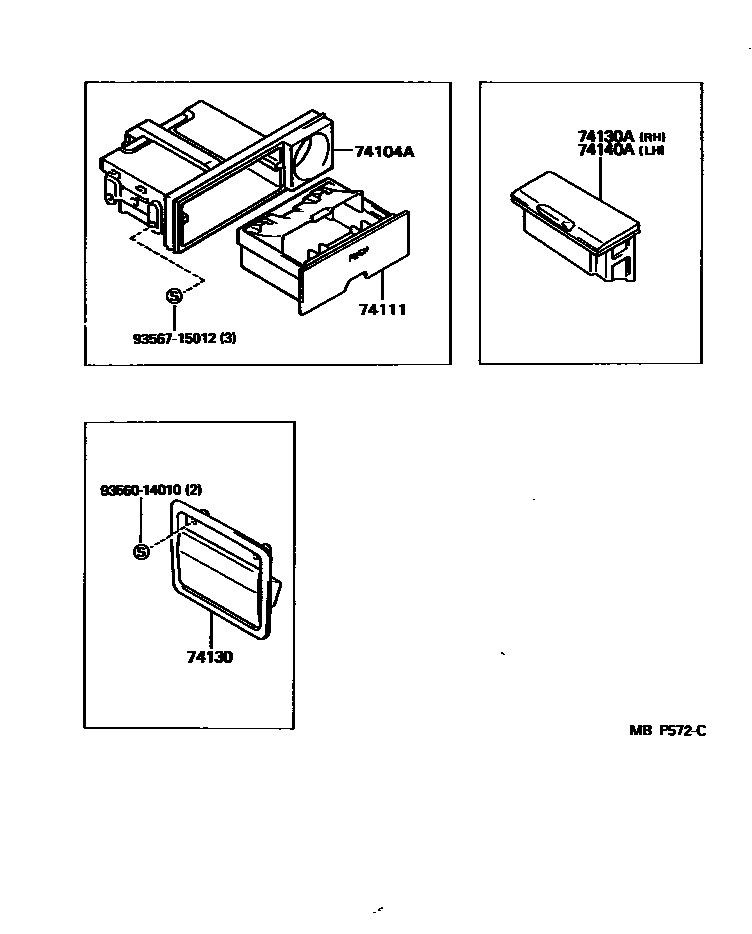

ASH RECEPTACLE

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74127-22020iGX81,RX80..RHD198808-199302

main74127-22030iMX83198808-199302

main74127-22040iMX81,RX8#..LHD..(GLX,XL);GX81,LX80,RX8#..LHD..(GL,GLX)..GEN198808-199608

main74127-22050iMX81,RX8#..(GD,GL)..V198808-199608

74111BOX, FRONT ASH RECEPTACLE

main74111-22140iRX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN198808-199608

main74111-22150iMX8#,RX8#..(GD,GL,GLX)..(ARL,V)198808-199608

74130RECEPTACLE ASSY, REAR ASH

main74130-91601-02iLX80;RX80..RHD..XL198808-199302

NEW MAROON,TRIM3#

main74130-91601-03iLX80;RX80..RHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main74130-91601-04iLX80;MX81,RX8#..XL198808-199008

DARK BLUE,TRIM8#

main74130-91601-06iLX80;MX81,RX8#..XL198808-199302

SABLE,TRIM4#

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-22110iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199608

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-22010iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199608

9356014010

main93560-14010

9356715012

main93567-15012

7 parts on this diagram · 1 diagram in section
