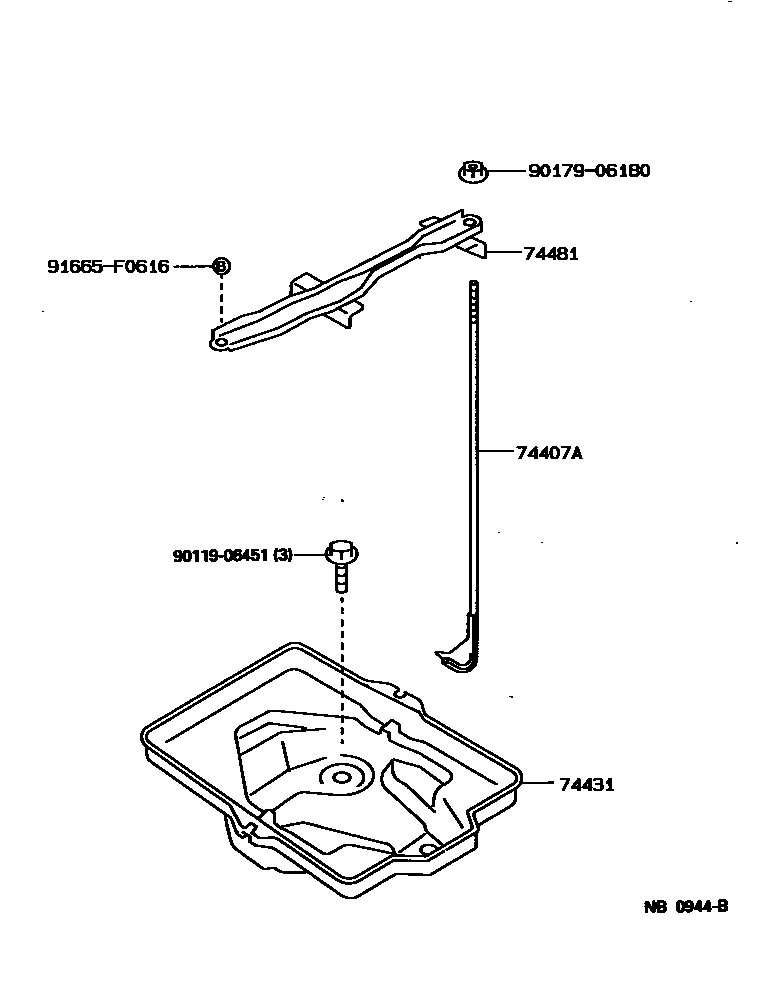

BATTERY CARRIER

0001 1 0002 1

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-22040iGX81,MX8#,RX8#198808-199608

74431TRAY, BATTERY

main74431-22050iGX81,RX8#198808-199608

main74431-22060iRX8#198808-199608

W(55D23R BATTERY)

main74431-22060iMX8#198808-199302

W(55D23L-MF BATTERY)

main74431-22070iLX80198808-199302

74481CLAMP, BATTERY HOLD DOWN

main74404-22230iGX81,RX8#198808-199608

main74404-22250iRX8#198808-199608

W(55D23R BATTERY)

main74404-22260iMX8#198808-199302

W(55D23L-MF BATTERY)

main74404-22270iLX80198808-199302

W(140D38L BATTERY)

main74404-22290iLX80198808-199302

9011906451

main90119-06451

9017906180

main90179-06180

91665F0616

main91665-F0616

6 parts on this diagram · 2 diagrams in section
