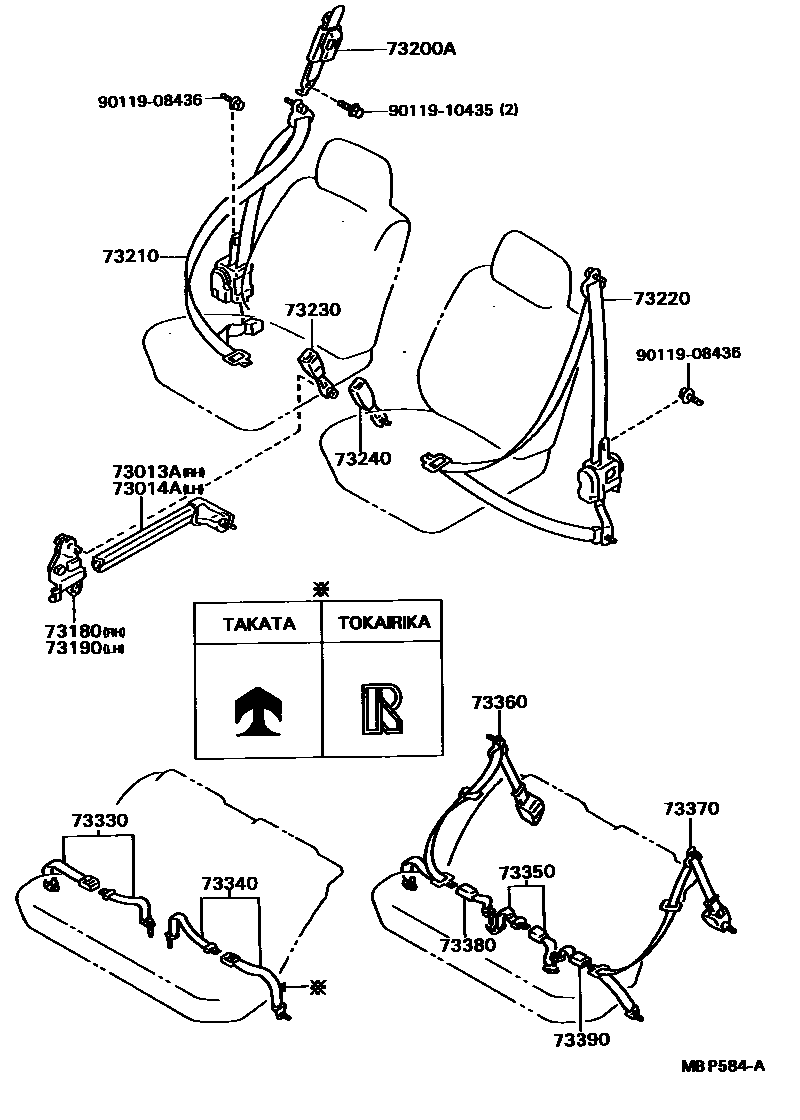

SEAT BELT & CHILD RESTRAINT SEAT

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-22070-02iGX81,LX80,MX8#,RX8#198808-199608

NEW MAROON,TRIM3#

main73013-22070-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main73013-22070-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main73013-22070-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-22070-02iGX81,LX80,MX8#,RX8#198808-199608

NEW MAROON,TRIM3#

sub73014-22070

main73014-22070-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

sub73014-22070

main73014-22070-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

sub73014-22070

main73014-22070-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

sub73014-22070

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-22040iGX81,LX80,MX8#,RX8#198808-199608

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-22040iGX81,LX80,MX8#,RX8#198808-199608

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-22050-02iMX83198808-199008

NEW MAROON,TRIM3#

main73200-22050-04iMX83198808-199008

DARK BLUE,TRIM8#

main73200-22050-06iMX83198808-199008

SABLE,TRIM4#

main73200-22060-02iRX81199008-199608

NEW MAROON,TRIM3#

main73200-22060-03iMX83199008-199302

MEDIUM GRAY,TRIM1#

main73200-22060-06iMX83199008-199302

SABLE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-22430-02iMX83198808-199105

NEW MAROON,TRIM3#

sub73210-22431

main73210-22430-03iMX83199008-199105

MEDIUM GRAY,TRIM1#

sub73210-22431

main73210-22430-04iMX83198808-199008

DARK BLUE,TRIM8#

sub73210-22431

main73210-22430-06iMX83198808-199105

SABLE,TRIM4#

sub73210-22431

main73210-22431-02iMX83199012-199302

NEW MAROON,TRIM3#

main73210-22431-03iMX83199012-199302

MEDIUM GRAY,TRIM1#

main73210-22431-06iMX83199012-199302

SABLE,TRIM4#

main73210-22450-02iGX81,LX80,MX81,RX8#198808-199012

NEW MAROON,TRIM3#

sub73210-22451

main73210-22450-03iGX81,LX80,MX81,RX8#199008-199012

MEDIUM GRAY,TRIM1#

sub73210-22451

main73210-22450-04iGX81,LX80,MX81,RX8#198808-199008

DARK BLUE,TRIM8#

sub73210-22451

main73210-22450-06iGX81,LX80,MX81,RX8#198808-199012

SABLE,TRIM4#

sub73210-22451

main73210-22451-02iGX81,LX80,MX81,RX8#199012-199308

NEW MAROON,TRIM3#

main73210-22451-03iGX81,LX80,MX81,RX8#199012-199302

MEDIUM GRAY,TRIM1#

main73210-22451-06iGX81,LX80,MX81,RX8#199012-199302

SABLE,TRIM4#

main73210-22500-D1iRX81199308-199608

NEW MAROON,TRIM3#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-22270-02iMX83198808-199105

NEW MAROON,TRIM3#

sub73220-22271

main73220-22270-03iMX83199008-199105

MEDIUM GRAY,TRIM1#

sub73220-22271

main73220-22270-04iMX83198808-199008

DARK BLUE,TRIM8#

sub73220-22271

main73220-22270-06iMX83198808-199105

SABLE,TRIM4#

sub73220-22271

main73220-22271-02iMX83199105-199302

NEW MAROON,TRIM3#

main73220-22271-03iMX83199105-199302

MEDIUM GRAY,TRIM1#

main73220-22271-06iMX83199105-199302

SABLE,TRIM4#

main73220-22280-02iGX81,LX80,MX81,RX8#198808-199012

NEW MAROON,TRIM3#

sub73220-22281

main73220-22280-03iGX81,LX80,MX81,RX8#199008-199012

MEDIUM GRAY,TRIM1#

sub73220-22281

main73220-22280-04iGX81,LX80,MX81,RX8#198808-199008

DARK BLUE,TRIM8#

sub73220-22281

main73220-22280-06iGX81,LX80,MX81,RX8#198808-199012

SABLE,TRIM4#

sub73220-22281

main73220-22281-02iGX81,LX80,MX81,RX8#199012-199308

NEW MAROON,TRIM3#

main73220-22281-03iGX81,LX80,MX81,RX8#199012-199302

MEDIUM GRAY,TRIM1#

main73220-22281-06iGX81,LX80,MX81,RX8#199012-199302

SABLE,TRIM4#

main73220-22340-D0iRX81199308-199608

NEW MAROON,TRIM3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-22240-02iGX81,LX80,MX81,RX8#198808-199608

NEW MAROON,TRIM3#

main73230-22240-03iGX81,LX80,MX81,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main73230-22240-04iGX81,LX80,MX81,RX8#198808-199008

DARK BLUE,TRIM8#

main73230-22240-06iGX81,LX80,MX81,RX8#198808-199302

SABLE,TRIM4#

main73230-22290-02iMX83198808-199302

NEW MAROON,TRIM3#

main73230-22290-03iMX83199008-199302

MEDIUM GRAY,TRIM1#

main73230-22290-04iMX83198808-199008

DARK BLUE,TRIM8#

main73230-22290-06iMX83198808-199302

SABLE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-22240-02iGX81,LX80,MX81,RX8#..GEN198808-199302

NEW MAROON,TRIM3#

main73230-22240-03iGX81,LX80,RX80199008-199302

MEDIUM GRAY,TRIM1#

main73230-22240-04iGX81,LX80,MX81,RX8#..GEN198808-199008

DARK BLUE,TRIM8#

main73230-22240-06iGX81,LX80,MX81,RX8#..GEN198808-199302

SABLE,TRIM4#

main73230-22290-02iMX83198808-199302

NEW MAROON,TRIM3#

main73230-22290-03iMX83199008-199302

MEDIUM GRAY,TRIM1#

main73230-22290-04iMX83198808-199008

DARK BLUE,TRIM8#

main73230-22290-06iMX83198808-199302

SABLE,TRIM4#

main73230-22300-02iMX81,RX8#..V198808-199608

NEW MAROON,TRIM3#

main73230-22300-03iMX81,RX81199008-199302

MEDIUM GRAY,TRIM1#

main73230-22300-04iMX81,RX8#..V198808-199008

DARK BLUE,TRIM8#

main73230-22300-06iMX81,RX8#..V198808-199302

SABLE,TRIM4#

main73230-22310-02iMX81..GD199008-199302

W(POWER SEAT),NEW MAROON,TRIM3#

main73230-22310-03iMX81..GD199008-199302

W(POWER SEAT),MEDIUM GRAY,TRIM1#

main73230-22310-06iMX81..GD199008-199302

W(POWER SEAT),SABLE,TRIM4#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-22110-02iRX80..XL;RX80..GL..V;MX81,RX81..(GL,XL)..V198908-199008

NEW MAROON,TRIM3#

main73330-22110-02iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

NEW MAROON,TRIM3#,TAKATA

main73330-22110-04iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

DARK BLUE,TRIM8#,TAKATA

main73330-22110-04iRX80..XL;RX80..GL..V;MX81,RX81..(GL,XL)..V198908-199008

DARK BLUE,TRIM8#

main73330-22110-06iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

SABLE,TRIM4#,TAKATA

main73330-22110-06iRX80..XL;RX80..GL..V;MX81,RX81..(GL,XL)..V198908-199008

SABLE,TRIM4#

main73330-22120-02iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

NEW MAROON,TRIM3#,TOKAIRIKA

sub73330-22120

main73330-22120-04iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73330-22120

main73330-22120-06iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

SABLE,TRIM4#,TOKAIRIKA

sub73330-22120

main73330-22130-02iRX80..XL;MX81,RX81..GL,XL199008-199308

NEW MAROON,TRIM3#

main73330-22130-03iRX80..XL;MX81,RX81..GL,XL199008-199302

MEDIUM GRAY,TRIM1#

main73330-22130-06iRX80..XL;MX81,RX81..GL,XL199008-199302

SABLE,TRIM4#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-22110-02iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

NEW MAROON,TRIM3#,TAKATA

main73330-22110-02iRX80..XL;RX80..GL..V;MX81,RX81..(GL,XL)..V198908-199008

NEW MAROON,TRIM3#

main73330-22110-04iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

DARK BLUE,TRIM8#,TAKATA

main73330-22110-04iRX80..XL;RX80..GL..V;MX81,RX81..(GL,XL)..V198908-199008

DARK BLUE,TRIM8#

main73330-22110-06iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

SABLE,TRIM4#,TAKATA

main73330-22110-06iRX80..XL;RX80..GL..V;MX81,RX81..(GL,XL)..V198908-199008

SABLE,TRIM4#

main73330-22120-02iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

NEW MAROON,TRIM3#,TOKAIRIKA

sub73330-22120

main73330-22120-04iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

DARK BLUE,TRIM8#,TOKAIRIKA

sub73330-22120

main73330-22120-06iRX80..XL;MX81..GL,XL;RX80..GL..V198808-198908

SABLE,TRIM4#,TOKAIRIKA

sub73330-22120

main73330-22130-02iRX80..XL;MX81,RX81..GL,XL199008-199308

NEW MAROON,TRIM3#

main73330-22130-03iMX81,RX81..GL,XL199008-199302

MEDIUM GRAY,TRIM1#

main73330-22130-06iMX81,RX81..GL,XL199008-199302

SABLE,TRIM4#

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-22130-02iGX81,LX80,MX8#,RX8#198808-199308

NEW MAROON,TRIM3#

main73350-22130-03iMX83199008-199302

MEDIUM GRAY,TRIM1#

main73350-22130-04iMX83198808-199008

DARK BLUE,TRIM8#

main73350-22130-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

main73350-22160-D0iRX81199308-199608

NEW MAROON,TRIM3#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-22230-02iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-198810

NEW MAROON,TRIM3#

sub73360-22231

main73360-22230-04iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-198810

DARK BLUE,TRIM8#

sub73360-22231

main73360-22230-06iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-198810

BROWN,TRIM4#

sub73360-22231

main73360-22231-02iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198810-199008

NEW MAROON,TRIM3#

main73360-22231-04iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198810-199008

DARK BLUE,TRIM8#

main73360-22231-06iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198810-199008

SABLE,TRIM4#

main73360-22250-02iMX83198808-198810

NEW MAROON,TRIM3#

sub73360-22251

main73360-22250-04iMX83198808-198810

DARK BLUE,TRIM8#

sub73360-22251

main73360-22250-06iMX83198808-198810

BROWN,TRIM4#

sub73360-22251

main73360-22251-02iMX83198810-199008

NEW MAROON,TRIM3#

main73360-22251-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main73360-22251-04iMX83198810-199008

DARK BLUE,TRIM8#

main73360-22251-06iMX83198810-199302

SABLE,TRIM4#

main73360-22251-12iGX81,LX80,MX8#,RX8#199008-199308

NEW MAROON,TRIM3#

main73360-22330-D0iRX81199308-199608

NEW MAROON,TRIM3#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-22180-02iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-198810

NEW MAROON,TRIM3#

sub73370-22181

main73370-22180-04iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-198810

DARK BLUE,TRIM8#

sub73370-22181

main73370-22180-06iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-198810

BROWN,TRIM4#

sub73370-22181

main73370-22181-02iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198810-199008

NEW MAROON,TRIM3#

main73370-22181-04iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198810-199008

DARK BLUE,TRIM8#

main73370-22181-06iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198810-199008

SABLE,TRIM4#

main73370-22190-02iMX83198808-198810

NEW MAROON,TRIM3#

sub73370-22191

main73370-22190-04iMX83198808-198810

DARK BLUE,TRIM8#

sub73370-22191

main73370-22190-06iMX83198808-198810

BROWN,TRIM4#

sub73370-22191

main73370-22191-02iMX83198810-199008

NEW MAROON,TRIM3#

main73370-22191-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main73370-22191-04iMX83198810-199008

DARK BLUE,TRIM8#

main73370-22191-06iMX81..GD;RX80..LHD..XL;GX81,LX80,MX83,RX80..GL,GLX198810-199302

SABLE,TRIM4#

main73370-22191-12iMX81..GD;RX80..LHD..XL;GX81,LX80,MX83,RX80..GL,GLX199008-199308

NEW MAROON,TRIM3#

main73370-22240-D0iRX81199308-199608

NEW MAROON,TRIM3#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-22140-02iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-199008

NEW MAROON,TRIM3#

main73380-22140-04iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-199008

DARK BLUE,TRIM8#

main73380-22140-06iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-199008

SABLE,TRIM4#

main73380-22160-02iMX83198808-199308

NEW MAROON,TRIM3#

main73380-22160-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main73380-22160-04iMX83198808-199008

DARK BLUE,TRIM8#

main73380-22160-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

main73380-22210-D0iRX81199308-199608

NEW MAROON,TRIM3#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-22140-02iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-199008

NEW MAROON,TRIM3#

main73380-22140-04iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-199008

DARK BLUE,TRIM8#

main73380-22140-06iMX81..GD,GLX;RX80..LHD..XL..GEN;GX81,LX80,RX8#..(GL,GLX)..GEN198808-199008

SABLE,TRIM4#

main73380-22160-02iMX81..GD;RX80..LHD..XL;GX81,LX80,MX83,RX80..GL,GLX198808-199308

NEW MAROON,TRIM3#

main73380-22160-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main73380-22160-04iMX83198808-199008

DARK BLUE,TRIM8#

main73380-22160-06iMX81..GD;RX80..LHD..XL;GX81,LX80,MX83,RX80..GL,GLX198808-199302

SABLE,TRIM4#

main73380-22210-D0iRX81199308-199608

NEW MAROON,TRIM3#

9011908436

main90119-08436

9011910435

main90119-10435

18 parts on this diagram · 1 diagram in section
