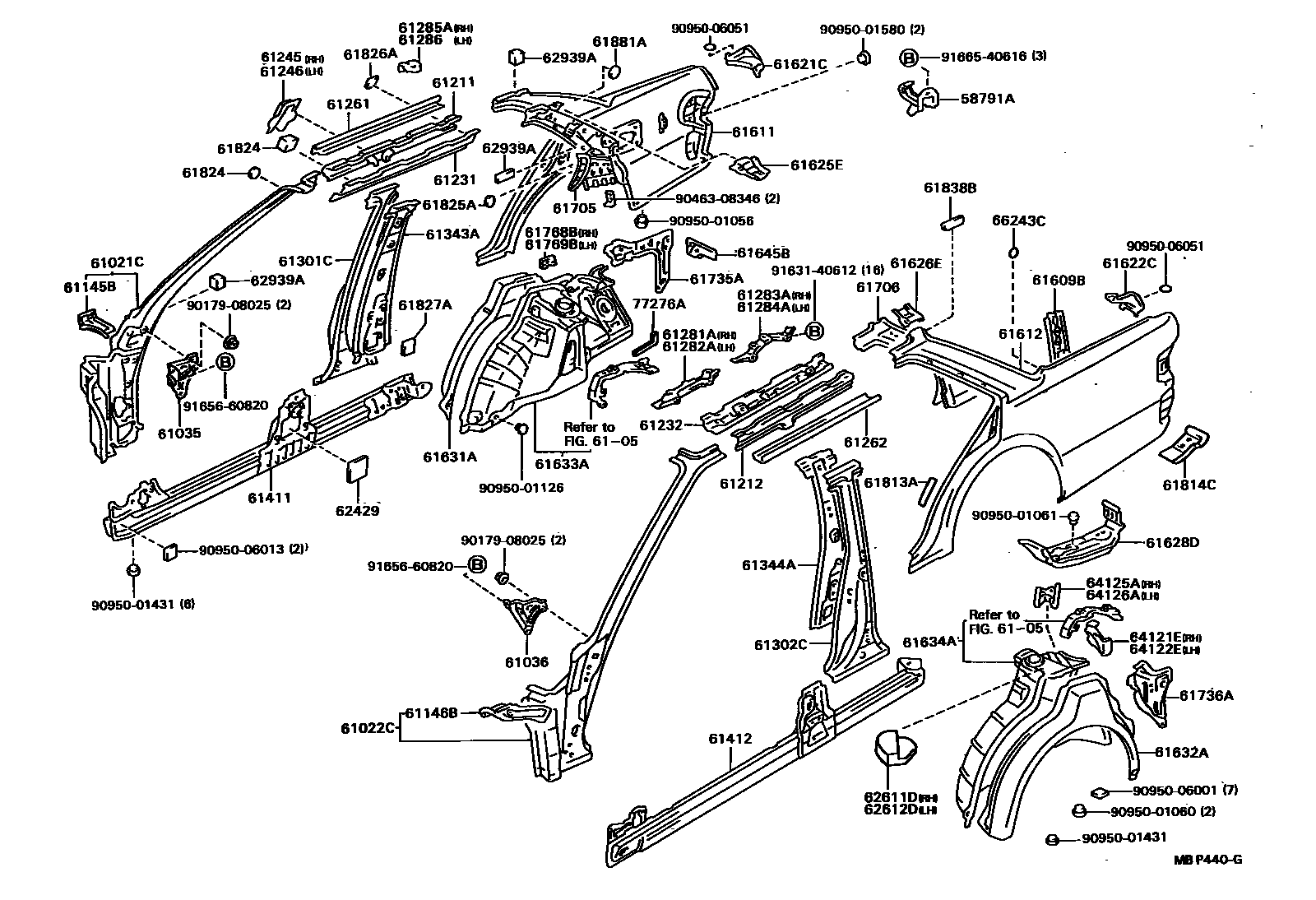

SIDE MEMBER

58791ACARRIER, JACK

main58791-22020iGX81,LX80,MX8#,RX8#198808-199608

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-22200iGX81,MX83,RX80..RHD198808-199302

main61021-22270iMX81,RX8#..V198808-199608

main61021-22290iGX81,LX80,MX81,RX8#..LHD..GEN198808-199302

sub61021-22260

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-22230iGX81,MX83,RX80..RHD198808-199302

main61022-22260iMX81,RX8#..V198808-199608

main61022-22280iGX81,LX80,MX81,RX8#..LHD..GEN198808-199302

sub61022-22250

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-22080iGX81,LX80,MX81,RX8#..LHD198808-199608

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-22090iGX81,MX83,RX80..RHD198808-199302

6105

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-22060iGX81,LX80,MX8#,RX8#198808-199608

sub61145-43010

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-22060iGX81,LX80,MX8#,RX8#198808-199608

61211RAIL, ROOF SIDE, OUTER RH

main61211-22100iGX81,LX80,MX8#,RX8#198808-199608

61212RAIL, ROOF SIDE, OUTER LH

main61212-22100iGX81,LX80,MX8#,RX8#198808-199608

61231RAIL, ROOF SIDE, INNER RH

main61231-22220iGX81,LX80,MX8#,RX8#198808-199608

61232RAIL, ROOF SIDE, INNER LH

main61232-22200iGX81,LX80,MX8#,RX8#198808-199608

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-22010iGX81,LX80,MX8#,RX8#198808-199608

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-22010iGX81,LX80,MX8#,RX8#198808-199608

61261CHANNEL, ROOF DRIP, RH

main61207-22010iGX81,LX80,MX8#,RX8#198808-199608

61262CHANNEL, ROOF DRIP, LH

main61208-22010iGX81,LX80,MX8#,RX8#198808-199608

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-22030iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2

main61282-22010iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-22030iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-22030iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4

main61285-22010iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

61286BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.5

main61285-22010iMX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-22910iLX80198808-199302

W(*PW)

main61301-22910iGX81,MX8#,RX8#..GD,GL,GLX198808-199512

main61301-22911iLX80;MX81,RX8#..XL198808-199608

sub61301-22910

sub90950-01573

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-22910iGX81,MX8#,RX8#..GD,GL,GLX198808-199302

W(*PW)

main61302-22911iLX80;MX81,RX8#..XL198808-199608

sub61302-22910

sub90950-01573

61343APILLAR, CENTER BODY, INNER RH

main61343-22909iGX81,LX80,MX8#,RX8#198808-199608

61344APILLAR, CENTER BODY, INNER LH

main61344-22909iGX81,LX80,MX8#,RX8#198808-199608

61411PANEL, ROCKER, OUTER RH

main61401-22050iGX81,LX80,MX8#,RX8#198808-199608

61412PANEL, ROCKER, OUTER LH

main61402-22050iGX81,LX80,MX8#,RX8#198808-199608

61609BBRACE SUB-ASSY, QUARTER PANEL

main61609-22020iGX81,LX80,MX8#,RX8#198808-199008

sub61609-22900

main61609-22900iGX81,LX80,MX8#,RX8#199008-199608

61611PANEL, QUARTER, RH

main61601-22960iMX8#,RX80..ARL,V198808-198810

W(RADIO)

sub61601-22965

main61601-22962iGX81,LX80,MX81,RX8#..GEN198808-198810

sub61601-22966

main61601-22965iMX8#,RX8#..ARL,V198810-199008

W(RADIO)

sub61601-22970

main61601-22966iGX81,LX80,MX81,RX8#..GEN198810-199008

sub61601-22971

main61601-22968iMX83199008-199302

W(RADIO)

main61601-22970iMX81,RX81199008-199608

main61601-22974iGX81,LX80,RX80199008-199302

sub61601-22967

61612PANEL, QUARTER, LH

main61602-22934iGX81,LX80,MX8#,RX8#198808-199008

sub61602-22940

main61602-22938iGX81,LX80,MX83,RX80199008-199302

sub61602-22937

main61602-22940iMX81,RX81199008-199608

sub61602-22939

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-22090iGX81,LX80,MX8#,RX8#198808-199608

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-22090iGX81,LX80,MX8#,RX8#198808-199608

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-22010iGX81,LX80,MX8#,RX8#198808-199608

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-22010iGX81,LX80,MX8#,RX8#198808-199608

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-22030iGX81,LX80,MX8#,RX8#198808-199608

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-22907iGX81,LX80,MX8#,RX8#198808-199608

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22110iGX81,LX80,MX8#,RX8#198808-199608

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-22240iGX81,LX80,MX8#,RX8#198808-199608

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-22190iGX81,LX80,MX8#,RX8#198808-199608

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-22030iGX81,LX80,MX8#,RX8#198808-199608

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22140iGX81,LX80,MX8#,RX8#198808-198810

main61705-22141iGX81,LX80,MX8#,RX8#198810-199608

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22140iGX81,LX80,MX8#,RX8#198808-199608

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-22900iGX81,LX80,MX8#,RX8#198808-199608

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-22900iGX81,LX80,MX8#,RX8#198808-199608

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-22030iGX81,LX80,MX8#,RX8#199008-199608

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-22020iGX81,LX80,MX8#,RX8#199008-199608

61813APLATE, DUSTPROOF, NO.1 RH

main61813-22040iRX8#..GEN;GX81,LX80,MX8#198808-199608

61814CREINFORCEMENT, QUARTER PANEL EXTENSION, NO.2 RH

main61814-22030iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

61824PLATE, NOISE CONTROL, NO.1

main61824-22060iGX81,LX80,MX8#,RX8#198808-199608

OD=50,T=2.0

main61824-22080iGX81,LX80,MX8#,RX8#198808-199008

50X50,T=50

sub62939-23010

main62939-23010iGX81,LX80,MX8#,RX8#199008-199608

50 X 50,T=50

sub61824-12110

61825APLATE, NOISE CONTROL, NO.2

main61825-22030iGX81,LX80,MX8#,RX8#198808-199312

sub61826-22010

main61826-22010iRX81199312-199608

61826APLATE, NOISE CONTROL, NO.3

main61826-22020iGX81,LX80,MX8#,RX8#198808-199608

61827APLATE, NOISE CONTROL, NO.4

main61827-22030iGX81,LX80,MX8#,RX8#198808-199608

61838BPLATE, NOISE CONTROL, NO.5

main61838-22020iGX81,LX80,MX8#,RX8#198808-199608

61881APLATE, DUST PROOF, NO.8

main61881-22010iGX81,LX80,MX8#,RX8#198808-199608

62429COVER, CENTER PILLAR SERVICE HOLE

main62429-22020iGX81,LX80,MX8#,RX8#198808-199608

62611DPAD, QUARTER WHEEL HOUSE, RH

main62611-22050iRX8#..V198907-199608

62612DPAD, QUARTER WHEEL HOUSE, LH

main62612-22030iRX8#..V198907-199608

62939ASILENCER, QUARTER VENT

main62939-22050iRX81199008-199608

70 X 175,T=30

main62939-22050iGX81,LX80,MX8#,RX8#198808-199008

70X175,T=30

main62939-22050iRX81199008-199207

70X175,T=70

main62939-22070iGX81,LX80,MX8#,RX8#198808-199008

sub62939-23010

main62939-23010iGX81,LX80,MX8#,RX8#199008-199608

70 X 70,T=70

sub61824-12110

64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64121-22050iGX81,LX80,MX8#,RX8#198808-199608

64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64122-22060iGX81,LX80,MX8#,RX8#198808-199608

64125ABRACKET, UPPER BACK PANEL, RH

main64125-22020iGX81,LX80,MX8#,RX8#198808-199608

64126ABRACKET, UPPER BACK PANEL, LH

main64126-22010iGX81,LX80,MX8#,RX8#198808-199608

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010iGX81,LX80,MX8#,RX8#199009-199205

main90950-06051iGX81,LX80,MX8#,RX8#199205-199608

77276APROTECTOR, FUEL HOSE

main77276-23010iGX81,LX80,MX8#,RX8#198808-199608

9017908025

main90179-08025

9046308346

main90463-08346

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001126

main90950-01126

9095001431

main90950-01431

9095001580

main90950-01580

9095006001

main90950-06001

9095006013

main90950-06013

9095006051

main90950-06051

9163140612

main91631-40612

9165660820

main91656-60820

9166540616

main91665-40616

79 parts on this diagram · 1 diagram in section
