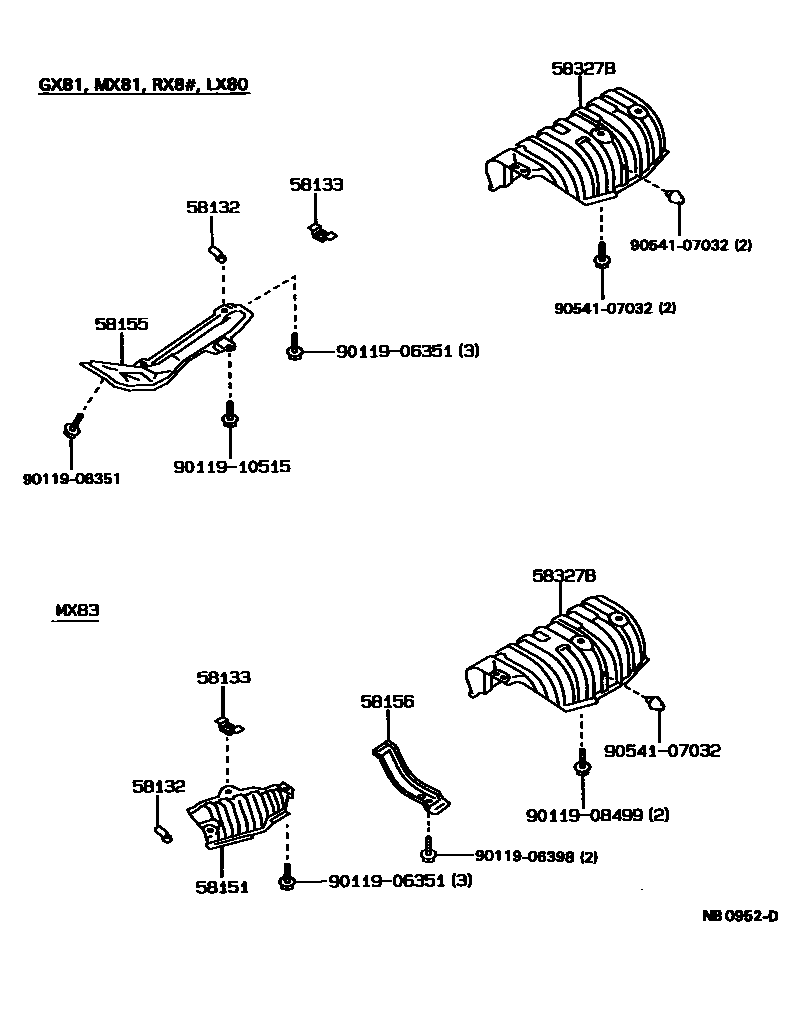

FLOOR INSULATOR

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-22040iGX81,LX80,MX8#,RX8#198808-199608

58133BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-22030iGX81,LX80,MX8#,RX8#198808-199608

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-22050iMX83198808-199302

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22030iGX81,MX81198808-199302

main58155-22050iRX8#198808-199608

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-22010iMX83198808-199302

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-22060iGX81,LX80,MX8#,RX8#198808-199608

9011906351

main90119-06351

9011906398

main90119-06398

9011908499

main90119-08499

9011910515

main90119-10515

9054107032

main90541-07032

11 parts on this diagram · 1 diagram in section
