FLOOR PAN & LOWER BACK PANEL

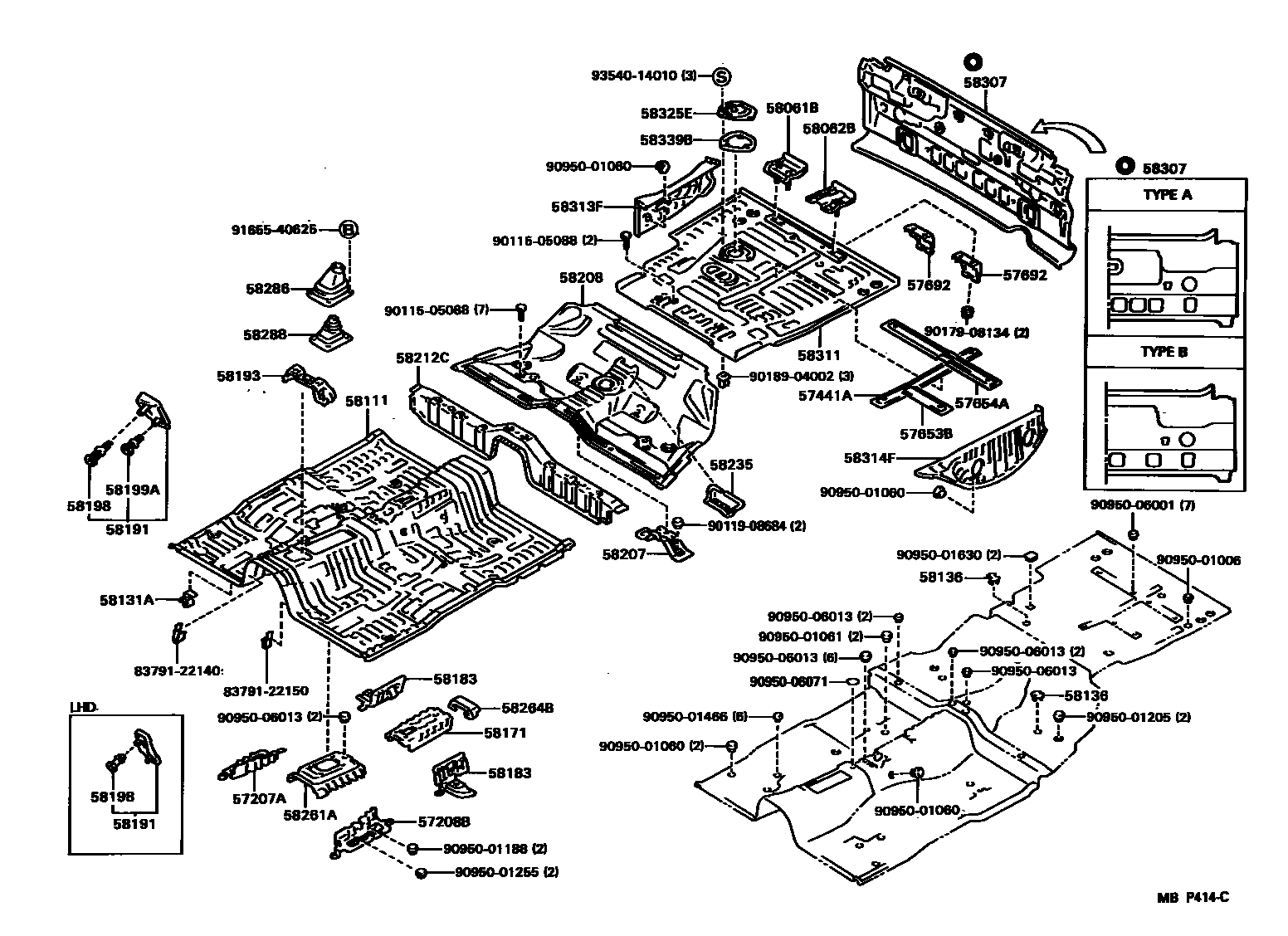

Parts diagram
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
main57207-22030i198808-199512
main57207-43010i199512-199608
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
main57208-22040i198808-199608
57441AMEMBER, REAR FLOOR CENTER, NO.1
main57441-22020i198808-199608
57653BMEMBER, REAR FLOOR CROSS, FRONT LH
main57653-22080i198808-199608
57654AMEMBER, REAR FLOOR CROSS, NO.3
main57654-22040i198808-199608
57692BRACKET, FUEL TANK MOUNTING, REAR CENTER
main57692-22020i198808-199608
58061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, RH
main58061-22010i198808-199608
58062BBRACKET SUB-ASSY, FUEL TANK MOUNTING, LH
main58062-22020i198808-199608
58111PAN, FRONT FLOOR
main58111-22150i198808-199512
sub58111-43020
main58111-43020i199512-199608
sub58111-43021
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
main58131-22040i198808-199608
58136COVER, FRONT FLOOR HOLE
main58136-24010i198808-199302
sub90950-06002
main58136-24010i198808-199608
FOR CENTER FLOOR PAN
sub90950-06002
58171REINFORCEMENT, PARKING BRAKE BASE
main58029-22040i198808-199608
58183BRACKET, FRONT SEAT MOUNTING, INNER
main58183-22030i198808-199608
RH
main58184-22030i198808-199608
LH
58191FOOTREST, FRONT FLOOR
main58191-22030i198808-199302
main58191-22040i198808-199302
main58192-22030i198808-199608
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
main58193-22050i198808-199608
58198CLIP, FOOTREST
main58198-22020i198808-199302
main58198-22050i198808-199608
58199ACLIP, FOOTREST, NO.2
main58199-22020i198808-199302
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
main58207-22050i198808-199608
58208PAN, CENTER FLOOR
main58211-22050i198808-199608
58212CPAN, CENTER FLOOR, FRONT
main58212-22060i198808-199608
58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING
main58235-22030i198808-198903
sub58235-22031
main58235-22031i198903-199302
58261ACOVER, TRANSMISSION
main58261-22210i198808-199302
main58261-22220i198808-199608
main58261-22230i198808-199608
main58261-22240i198808-199302
58264BBRACKET, PARKING BRAKE CABLE GUIDE
main58264-22040i198808-199608
58286BOOT, SHIFT & SELECT LEVER, NO.1
main58280-22070i198808-199005
sub58280-22071
main58280-22071i199005-199302
main58280-22080i198808-199608
58288SEAL, SHIFT LEVER BOOT
main58288-22030i198808-199005
sub58288-22031
main58288-22031i199005-199302
main58288-22040i198808-199608
58307PANEL SUB-ASSY, BODY LOWER BACK
main58307-22490i198808-199008
TYPE B
main58307-22500i198808-199608
TYPE B
main58307-22510i198808-199008
TYPE B
main58307-22511i199008-199302
TYPE A
main58307-22550i199008-199302
TYPE B
main58307-22560i199008-199302
TYPE A
sub58307-22511
58311PAN, REAR FLOOR
main58311-22120i198808-199008
sub58311-22121
sub90950-06060
main58311-22121i199008-199608
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
main58305-22040i198808-199608
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
main58314-22100i198808-199608
58325ECOVER, REAR FLOOR SERVICE HOLE
main58325-22040i198808-199608
58339BPACKING, REAR FLOOR SERVICE HOLE
main58339-22030i198808-199608
8379122140
main83791-22140
8379122150
main83791-22150
9011505088
main90115-05088
9011908684
main90119-08684
9017908134
main90179-08134
9018904002
main90189-04002
9095001006
main90950-01006
9095001060
main90950-01060
9095001061
main90950-01061
9095001188
main90950-01188
9095001205
main90950-01205
9095001255
main90950-01255
9095001466
main90950-01466
9095001630
main90950-01630
9095006001
main90950-06001
9095006013
main90950-06013
9095006071
main90950-06071
9165540625
main91655-40625
9354014010
main93540-14010

50 parts on this diagram · 1 diagram in section
