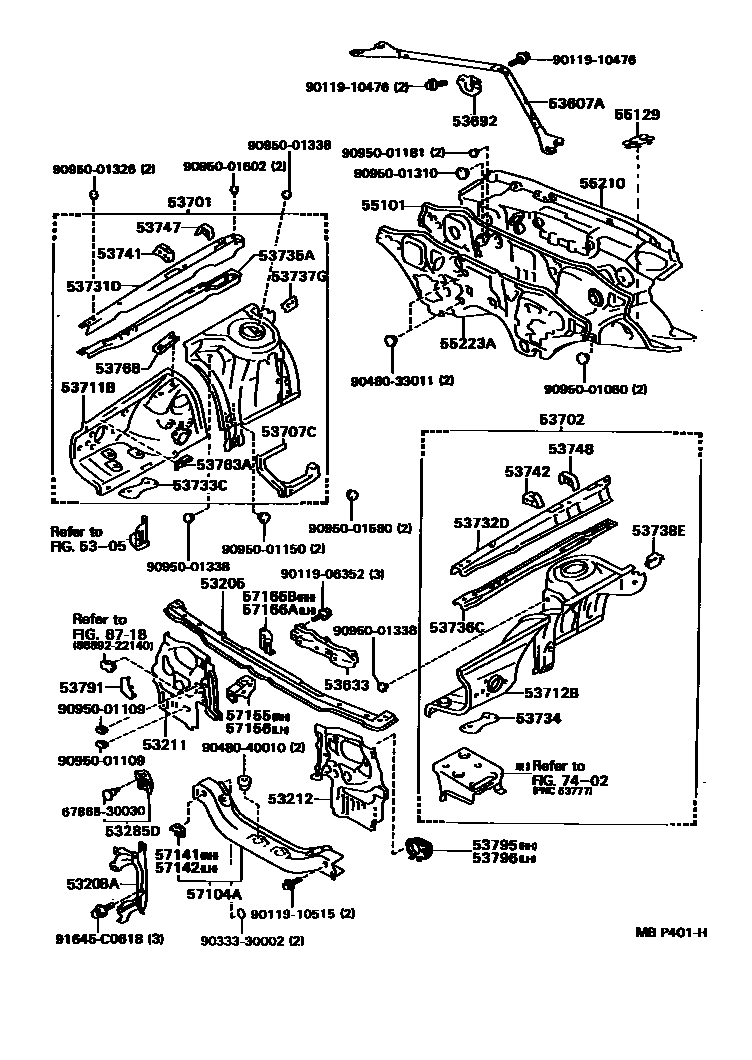

FRONT FENDER APRON & DASH PANEL

5305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22110iGX81,LX80,MX8#,RX8#198808-199608

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22090iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

sub53208-22130

main53208-22100iGX81,LX80,MX83,RX80199008-199302

main53208-22130iMX81,RX8#..V198808-199608

53211SUPPORT, RADIATOR, RH

main53211-22310iMX81,RX8#..V198808-199608

main53211-22320iGX81,LX80,MX8#..ARL,GEN198808-199302

sub53211-22240

main53211-22330iRX8#..GEN198808-199302

sub53211-22240

53212SUPPORT, RADIATOR, LH

main53212-22250iMX81,RX8#..V198808-199608

main53212-22260iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

sub53212-22210

53285DCOVER, FRONT BUMPER ARM HOLE

main53285-22030iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-22010iMX81..V198808-199302

main53607-22020iRX8#..V198808-199608

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22060iGX81,LX80,MX8#,RX8#198808-199608

53692BRACKET, FRONT SUSPENSION UPPER BRACE

main53692-22010iMX81,RX8#..V198808-199608

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22550iGX81,MX8#198808-199302

main53701-22560iMX83..GLX198908-199302

W(*66)

main53701-22560iLX80198808-199302

main53701-22630iRX8#198808-199608

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22500iLX80198808-199302

main53702-22610iGX81,MX8#,RX8#198808-199608

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-22010iLX80198808-199302

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22400iGX81,MX8#198808-199302

sub53711-22420

main53711-22410iLX80198808-199302

main53711-22410iMX83..GLX198908-199302

W(*66)

main53711-22420iRX8#198808-199608

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22340iGX81,LX80,MX8#,RX8#198808-199608

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-22080iGX81,LX80,MX8#,RX8#198808-199608

main53731-43010iGX81,LX80,MX8#,RX80199008-199302

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-22070iGX81,LX80,MX8#,RX8#198808-199608

53733CPATCH, FRONT FENDER APRON

main53733-22070iRX8#198808-199608

53734PATCH, FRONT FENDER APRON, NO.4

main53733-22070iGX81,MX8#,RX8#198808-199608

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-22060iGX81,LX80,MX8#,RX8#198808-199608

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-22050iGX81,LX80,MX8#,RX8#198808-199608

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-22040iGX81,LX80,MX8#,RX8#198808-199608

53738EPLATE, FRONT SPRING SUPPORT, LH

main53738-22040iGX81,LX80,MX8#,RX8#198808-199608

53741PLATE, FRONT FENDER APRON WIND GUIDE, RH

main53741-22020iGX81,LX80,MX8#,RX8#198808-199608

53742PLATE, FRONT FENDER APRON WIND GUIDE, LH

main53742-22020iGX81,LX80,MX8#,RX8#198808-199608

53747PLATE, AIR SEALED, RH

main53747-22010iGX81,LX80,MX8#,RX8#198808-199608

53748PLATE, AIR SEALED, LH

main53748-22010iGX81,LX80,MX8#,RX8#198808-199608

53763ABRACKET, AIR CLEANER INLET MOUNTING

main53763-22010iGX81,MX8#198808-199302

sub53763-43030

53768PLATE, IGNITION COIL MOUNTING

main53768-22030iGX81,LX80,MX8#,RX8#198808-199608

53791COVER, COOL AIR INTAKE HOLE

main53791-22030iRX8#..V198808-199608

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-22040iGX81,LX80,MX8#,RX8#198808-199608

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-22030iGX81,LX80,MX8#198808-199302

main53796-22040iRX8#198808-199608

55101PANEL SUB-ASSY, DASH

main55101-22780iRX80..RHD198808-199302

sub55101-2A260

main55101-22820iGX81,MX83..RHD198808-199302

sub55101-2A290

main55101-2A100iGX81,MX81..LHD198808-199302

main55101-2A120iRX8#..LHD198808-199608

main55101-2A140iLX80198808-199302

55129COVER, DASH PANEL HOLE

main55129-22010iGX81,LX80,MX8#,RX8#199008-199608

55210INSULATOR ASSY, DASH PANEL

main55210-22230iRX8#..LHD198808-199608

main55210-22260iGX81,MX83,RX80..RHD198808-199302

main55210-22270iGX81,LX80,MX81..LHD198808-199302

sub55210-22230

55223AINSULATOR, DASH PANEL, OUTER

main55223-22050iMX83198808-199302

main55223-22090iLX80198808-199302

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-22150iMX81,RX8#..V198808-199608

main57104-22160iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

sub57104-22190

57141SUPPORT, FRONT BUMPER ARM, RH

main57141-22020iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

57142SUPPORT, FRONT BUMPER ARM, RH

main57141-22020iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-22090iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-22070iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

57165BREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH

main57165-22040iGX81,LX80,MX8#,RX8#198808-199608

57166AGUSSET, FLOOR MEMBER, LH

main57166-22040iGX81,LX80,MX8#,RX8#198808-199608

7402

8718

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

8889222140BRACKET, COOLER EVAPORATOR MOUNTING

main88892-22140

9011906352

main90119-06352

9011910476

main90119-10476

9011910515

main90119-10515

9048033011

main90480-33011

9048040010

main90480-40010

9095001060

main90950-01060

9095001109

main90950-01109

9095001150

main90950-01150

9095001181

main90950-01181

9095001310

main90950-01310

9095001326

main90950-01326

9095001338

main90950-01338

9095001580

main90950-01580

9095001602

main90950-01602

91645C0618

main91645-C0618

61 parts on this diagram · 1 diagram in section
