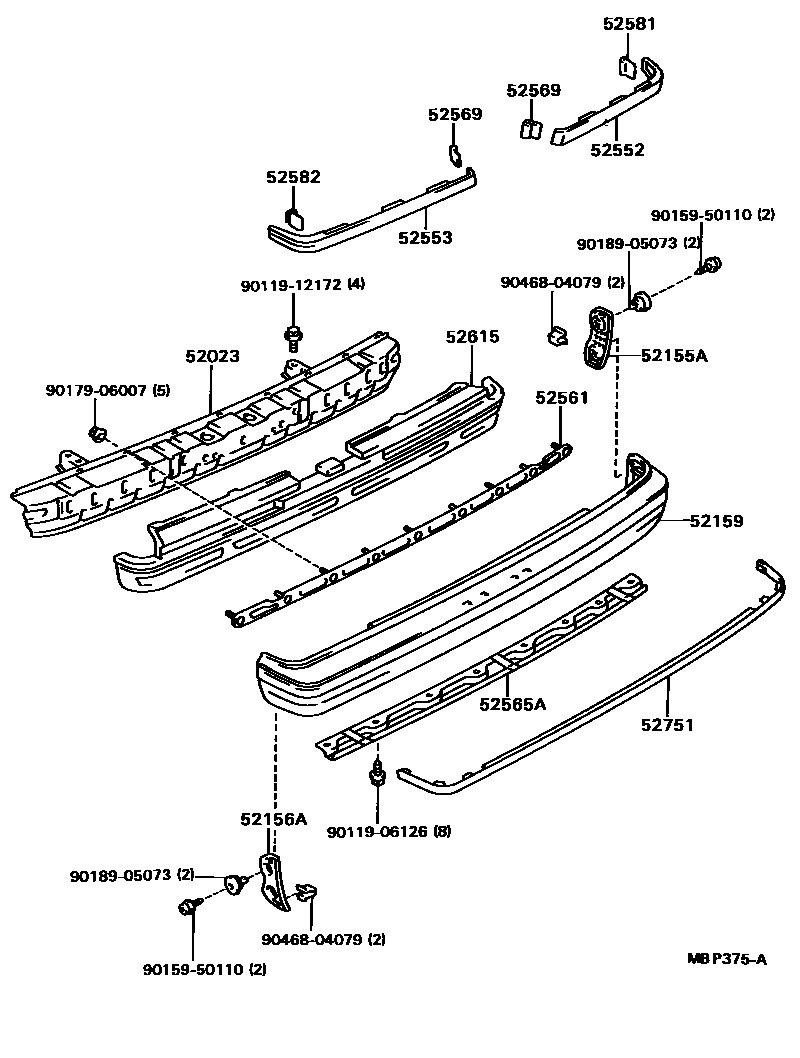

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-22140iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199005

sub52023-22H00

main52023-22141iGX81,LX80,MX8#,RX8#..ARL,GEN199005-199302

main52023-22150iMX81,RX8#..V198808-199608

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-22120iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

main52155-22140iMX81,RX8#..V198808-199608

main52155-22150iGX81,LX80,MX83,RX80199008-199302

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-22140iGX81,LX80,MX83,RX80199008-199302

main52156-22150iMX81,RX8#..V198808-199608

main52156-22160iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199008

52159COVER, REAR BUMPER

main52159-22260iRX80..RHD199008-199302

W/O(REAR CONBINATION LAMP FOR ARL & V)

main52159-22360iMX83..GL198808-199008

main52159-22380iLX80,RX8#..GEN198808-199008

main52159-22410iMX81,RX8#..(GL,XL)..V198808-199608

main52159-22440iLX80,RX80199008-199302

main52159-22914iRX80..GEN;LX80,RX81..5F..GEN198808-199008

W(PAINTED COLLOR BUMPER)

main52159-22915iMX81..GD198808-199302

W(PAINTED COLLOR BUMPER)

main52159-22915iRX81..GL199302-199608

main52159-22916iMX83..GLX198808-199008

W/O(PAINTED)

main52159-22919iLX80,RX80199008-199302

W(PAINTED COLLOR BUMPER)

main52159-22920iGX81,MX83199008-199302

main52159-22922iRX80..RHD199008-199302

W/O(REAR CONBINATION LAMP FOR ARL & V),BLACK

sub52159-22260

main52159-22923iGX81..4FC199111-199302

W/O(REAR CONBINATION LAMP FOR ARL & V)

sub52159-22260

main52159-22923iGX81..4FC199008-199111

W/O(REAR CONBINATION LAMP FOR ARL & V),BLACK

sub52159-22260

52552FILLER, REAR BUMPER, RH

main52552-22020iMX8#,RX8#..ARL,V198808-199008

main52552-22030iGX81,LX80,MX81,RX8#..GEN198808-199302

main52552-22050iGX81,RX80..RHD199008-199302

W/O(REAR CONBINATION LAMP FOR ARL & V)

main52552-22050iMX81,RX81199008-199608

52553FILLER, REAR BUMPER, LH

main52553-22020iMX8#,RX8#..ARL,V198808-199008

main52553-22030iGX81,LX80,MX83,RX80198808-199302

main52553-22050iGX81,RX80..RHD199008-199302

W/O(REAR CONBINATION LAMP FOR ARL & V)

main52553-22050iMX81,RX81199008-199608

52561RETAINER, REAR BUMPER, UPPER CENTER

main52521-22100iGX81,LX80,MX8#,RX8#198808-199608

52565ARETAINER, REAR BUMPER, LOWER

main52565-22040iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199005

main52565-22041iGX81,LX80,MX8#,RX8#..ARL,GEN199005-199008

main52565-22050iGX81,LX80,MX83,RX80199008-199302

main52565-32020iMX81,RX8#..V198808-199608

52569PAD, REAR BUMPER FILLER

main52569-22020iGX81,LX80,MX81,RX8#..GEN198808-199302

52581PROTECTOR, REAR BUMPER, RH

main52581-22020iGX81,LX80,MX8#,RX8#198808-199008

sub52581-22021

main52581-22021iGX81,LX80,MX83,RX80199008-199302

W(REAR BUMPER ABSORBER=TYPE A)

main52581-22021iMX81,RX81199008-199608

52582PROTECTOR, REAR BUMPER, LH

main52581-22020iGX81,LX80,MX8#,RX8#198808-199008

sub52581-22021

main52581-22021iGX81,LX80,MX83,RX80199008-199302

W(REAR BUMPER ABSORBER=TYPE A)

main52581-22021iMX81,RX81199008-199608

52615ABSORBER, REAR BUMPER ENERGY

main52615-22090iMX83198808-199008

main52615-22100iMX81,RX8#..V198808-199608

main52615-22110iGX81,LX80,MX81,RX8#..GEN198808-199008

main52615-22120iGX81,LX80,MX83,RX80199008-199112

sub52615-22121

main52615-22121iGX81,LX80,MX83,RX80199112-199302

sub52615-22141

main52615-22140iGX81,RX80..RHD199008-199106

W/O(REAR CONBINATION LAMP FOR ARL & V)

sub52615-22141

main52615-22141iGX81,RX80..RHD199106-199302

W/O(REAR CONBINATION LAMP FOR ARL & V)

52751MOULDING, REAR BUMPER

main52751-22100iGX81,LX80,MX8#,RX8#..ARL,GEN198808-198904

BLACK

sub52751-22101

main52751-22101iGX81,LX80,MX8#,RX8#..ARL,GEN198904-199008

main52751-22110iMX81,RX80..V198808-198904

sub52751-22111

main52751-22111iMX81,RX8#..V198904-199008

main52751-22140iGX81,LX80,MX83,RX80199008-199203

sub52751-22141

main52751-22141iGX81..4FC199104-199111

W(REAR BUMPER ABSORBER=TYPE A)

main52751-22141iGX81,LX80,MX83,RX80199203-199302

main52751-22170iMX81,RX81199008-199104

sub52751-22171

main52751-22171iMX81,RX81199104-199608

9011906126

main90119-06126

9011912172

main90119-12172

9015950110

main90159-50110

9017906007

main90179-06007

9018905073

main90189-05073

9046804079

main90468-04079

19 parts on this diagram · 3 diagrams in section
